HIGHSIDER cable fixation for mounting on the HIGHSIDER CNC aluminum standpipe clamps, No. 207-402 to 207-419. Can also be used universally. Tailor-made for your bike
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your bike. With the highest level of quality & functionality, you can easily customize your bike according to your wishes.

Dimensions Unbent: L- shape

Width: 20.5 mm

Height: 25, 5 mm Thickness: 0, 5 mm Hole diameter: M5 Scope of delivery Set of 10 cable fixation 207-124

...

Available

HIGHSIDER CAN-BUS resistor CBW1 with DIP switch. The newly developed HIGHSIDER CAN-BUS resistor CBW1 fits most vehicles that have a CAN-BUS system. The resistor CBW1 provides a required electrical load for their vehicle, which leads to no error message in the cockpit with accessory turn signals when the dip switches are set correctly. In addition, there is a fail-safe feature. That is: In the event of failure of the accessory turn signals due to an electronic defect, an error message is immediately displayed in the cockpit. Features The following resistance values can be set: 150 Ohm 170 Ohm 200 Ohm 240 Ohm 300 Ohm 400 Ohm 600 Ohm 1200 Ohm

Dimensions Height = 11 mm Width = 31 mm (without lugs) Width = 46 mm (with lugs) length = 40 mm Cable length = 200 mm with pins Connections Yellow = Input channel 1 (+) Orange = Output channel 1 (+) Blue = input channel 2 (+) Red = Output channel 2 (+) Gray = Input ground (-) Black = Output ground (-) Scope of delivery 1 piece CAN-BUS resistor CBW1 2...

...

Available

HIGHSIDER 5 3/4 inch LED main headlight CIRCLE, E-approved. The Light Guide technology creates a very homogeneous light ring with daytime running & parking light function. The CIRCLE headlight is available in a high quality metal housing, either for lower or side mounting. The bright joy
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions Diameter headlight insert: 146.5 mm

Depth: 167 mm with glass Mounting side 223-046: with mounting screws M6 Bottom mounting 223-048: with M6 mounting screws Connections 12, 5 Volt DC Green cable = ground White cable = low beam Blue cable = high beam Brown cable = parking light Red cable = daytime running light Variants 223-046
- Black, side mount 223-048
- Black, bottom mount Scope of delivery 1 x main headlight, E-approved Mounting hardware

...

Available

HIGHSIDER 5 3/4 inch main headlight CLASSIC 1 EXTREME for bottom mount. H4 halogen main headlight with a high-quality processed, black aluminum housing with 3 distinctive CNC-milled grooves & a nostalgic shade (length: approx. 25 mm) in retro look. The headlight has an asymmetrical
- only approved for right-hand traffic
- prism reflector & parking light, E-approved. Sensational
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55 W Mounting: bottom mount Diameter: 157 mm

Depth: 220 mm Holder center mounting screw to front: 127 mm Holder gap: 18 mm Bottom mount Connections White cable = low beam (+) Green cable = ground of H4 bulb Blue cable = high beam (+) Brown cable = parking light (+) Black cable = ground of parking light (-) Scope of delivery 1 piece, consisting of headlight 223-034 incl. bulb Notes Asymmetrical reflector
- only approved...

...

Available

HIGHSIDER 5 3/4 inch main headlight CLASSIC 1, bottom mount. H4 halogen main headlight in a high quality processed, black or chromed aluminum housing in retro look. The headlight has an asymmetrical
- only approved for right-hand traffic
- prism reflector & parking light, E-approved. Sensational
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55 W Mounting: bottom mount Diameter: 157 mm

Depth: 220 mm Holder center mounting screw to front: 127 mm Holder gap: 18 mm Connections White cable = low beam (+) Green cable = ground of H4 bulb Blue cable = high beam (+) Brown cable = parking light (+) Black cable = ground of parking light (-) Variants 223-030
- Chrome plated 223-032
- Black Scope of delivery 1 piece main headlight with bulb Notes Asymmetrical reflector
- only approved for right-hand traffic

...

Available

HIGHSIDER 5 3/4 inch main headlight CLASSIC 1 with shade, bottom mount. H4 halogen main headlight in a high quality processed, black or chromed aluminum housing in retro look with nostalgic shade (length: approx. 25 mm). The headlight has an asymmetrical
- only approved for right-hand traffic
- prism reflector & parking light, E-approved. Sensational
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55 W Mounting: bottom mount Diameter: 157 mm

Depth: 220 mm Holder center mounting screw to front: 127 mm Holder gap: 18 mm Connections White cable = low beam (+) Green cable = ground of H4 bulb Blue cable = high beam (+) Brown cable = parking light (+) Black cable = ground of parking light (-) Variants 223-031
- Chrome plated, with shade 223-033
- Black, with shade Scope of delivery 1 piece main headlight with bulb Notes Asymmetrical reflector
- onl...

...

Available

HIGHSIDER 4 1/2 inch main headlight CLASSIC 3 for bottom mount. HS1 halogen main headlight with parking light & a high-quality processed, chrome-plated aluminum housing available in black or chrome. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility, E-approved. Sensational
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Illuminant: HS1, 12 V 35/35 W Mounting: bottom mount Diameter: 125 mm

Depth: 167 mm Holder center mounting screw to front: 116 mm Mounting: bottom mount Connections White cable = low beam (+) Green cable = bulb ground Blue cable = high beam (+) Red-black cable = parking light (+) Black cable = ground parking light (-) Variants 223-037
- Chrome plated 223-038
- Black Scope of delivery 1 piece main headlight with bulb Notes Symmetrical reflector
- also approved for left-hand traffic.

...

Available

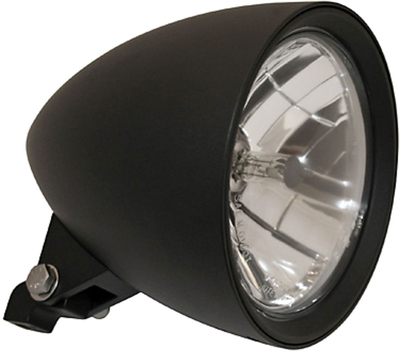

Highsider Classic 1, H4 Headlight 5 3/4 Inch

HIGHSIDER 5 3/4 inch main headlight CLASSIC 1, bottom mount. H4 halogen main headlight in a high quality processed, black or chromed aluminum housing in retro look. The headlight has an asymmetrical - only approved for right-hand traffic - prism reflector and parking light, E-approved. Sensational - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55 W Mounting: bottom mount Diameter: 157 mm Depth: 220 mm Holder center mounting screw to front: 127 mm Holder gap: 18 mm Connections White cable = low beam (+) Green cable = ground of H4 bulb Blue cable = high beam (+) Brown cable = parking light (+) Black cable = ground of parking light (-) Variants
223-030 - Chrome plated 223-032 - Black Scope of delivery 1 piece main headlight with bulb Notes Asymmetrical reflector - only approved for right-hand traffic

Availability: In Stock
Supplier: Motoin SE
SKU: se-11083800-002

Description Reviews / Comments Add New

Product Description

Reviews/Comments

Add New
