HIGHSIDER 5 3/4 inch LED main headlight CIRCLE, E-approved. The Light Guide technology creates a very homogeneous light ring with daytime running & parking light function. The CIRCLE headlight is available in a high quality metal housing, either for lower or side mounting. The bright joy
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions Diameter headlight insert: 146.5 mm

Depth: 167 mm with glass Mounting side 223-046: with mounting screws M6 Bottom mounting 223-048: with M6 mounting screws Connections 12, 5 Volt DC Green cable = ground White cable = low beam Blue cable = high beam Brown cable = parking light Red cable = daytime running light Variants 223-046
- Black, side mount 223-048
- Black, bottom mount Scope of delivery 1 x main headlight, E-approved Mounting hardware

...

Available

HIGHSIDER 5 3/4 inch main headlight CLASSIC 1 EXTREME for bottom mount. H4 halogen main headlight with a high-quality processed, black aluminum housing with 3 distinctive CNC-milled grooves & a nostalgic shade (length: approx. 25 mm) in retro look. The headlight has an asymmetrical
- only approved for right-hand traffic
- prism reflector & parking light, E-approved. Sensational
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55 W Mounting: bottom mount Diameter: 157 mm

Depth: 220 mm Holder center mounting screw to front: 127 mm Holder gap: 18 mm Bottom mount Connections White cable = low beam (+) Green cable = ground of H4 bulb Blue cable = high beam (+) Brown cable = parking light (+) Black cable = ground of parking light (-) Scope of delivery 1 piece, consisting of headlight 223-034 incl. bulb Notes Asymmetrical reflector
- only approved...

...

Available

HIGHSIDER 5 3/4 inch main headlight CLASSIC 1, bottom mount. H4 halogen main headlight in a high quality processed, black or chromed aluminum housing in retro look. The headlight has an asymmetrical
- only approved for right-hand traffic
- prism reflector & parking light, E-approved. Sensational
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55 W Mounting: bottom mount Diameter: 157 mm

Depth: 220 mm Holder center mounting screw to front: 127 mm Holder gap: 18 mm Connections White cable = low beam (+) Green cable = ground of H4 bulb Blue cable = high beam (+) Brown cable = parking light (+) Black cable = ground of parking light (-) Variants 223-030
- Chrome plated 223-032
- Black Scope of delivery 1 piece main headlight with bulb Notes Asymmetrical reflector
- only approved for right-hand traffic

...

Available

HIGHSIDER 5 3/4 inch main headlight CLASSIC 1 with shade, bottom mount. H4 halogen main headlight in a high quality processed, black or chromed aluminum housing in retro look with nostalgic shade (length: approx. 25 mm). The headlight has an asymmetrical
- only approved for right-hand traffic
- prism reflector & parking light, E-approved. Sensational
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55 W Mounting: bottom mount Diameter: 157 mm

Depth: 220 mm Holder center mounting screw to front: 127 mm Holder gap: 18 mm Connections White cable = low beam (+) Green cable = ground of H4 bulb Blue cable = high beam (+) Brown cable = parking light (+) Black cable = ground of parking light (-) Variants 223-031
- Chrome plated, with shade 223-033
- Black, with shade Scope of delivery 1 piece main headlight with bulb Notes Asymmetrical reflector
- onl...

...

Available

HIGHSIDER 4 1/2 inch main headlight CLASSIC 3 for bottom mount. HS1 halogen main headlight with parking light & a high-quality processed, chrome-plated aluminum housing available in black or chrome. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility, E-approved. Sensational
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Illuminant: HS1, 12 V 35/35 W Mounting: bottom mount Diameter: 125 mm

Depth: 167 mm Holder center mounting screw to front: 116 mm Mounting: bottom mount Connections White cable = low beam (+) Green cable = bulb ground Blue cable = high beam (+) Red-black cable = parking light (+) Black cable = ground parking light (-) Variants 223-037
- Chrome plated 223-038
- Black Scope of delivery 1 piece main headlight with bulb Notes Symmetrical reflector
- also approved for left-hand traffic.

...

Available

HIGHSIDER CLASSIC handlebar end mirror, E-approved. Noble, CNC-milled handlebar end mirror with a round head made from high quality aluminum. The stylized propeller on the back of the mirror head emphasizes the extraordinary design of this model. Thanks to an innovative universal clamping system, the mirrors fit handlebars with an inner handlebar diameter of 12 to 22 mm. The stem is adjustable up & down & offers an even better view to the rear & more safety. Can be used for right & left side. Prudence with style
- whether classic or modern. The HIGHSIDER mirror series are characterized by striking design & aerodynamic function. So you keep the overview.

Dimensions Total

Width: 40 mm (adjustable) Total

Height: approx. 150 mm diameter head: 100 mm Handle length: approx. 95 mm Central screw: M6 x 1.0 mm hexagon socket screw Variant 301-008
- Black 301-009
- Chrome plated Scope of delivery 1 piece incl. mounting set & universal clamping system

...

Available

Handlebar weights made from chrome-plated or black aluminum. Universal fit for handlebars with inner diameters from 12 to 22 mm
-
...

Available

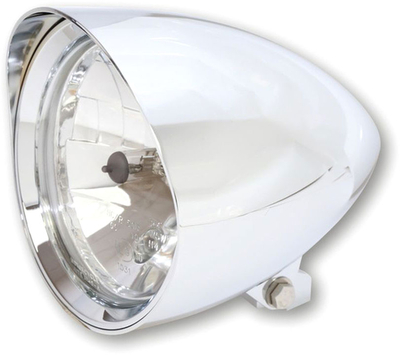

Highsider Classic 1, H4 Headlight 5 3/4 Inch, W Shade

HIGHSIDER 5 3/4 inch main headlight CLASSIC 1 with shade, bottom mount. H4 halogen main headlight in a high quality processed, black or chromed aluminum housing in retro look with nostalgic shade (length: approx. 25 mm). The headlight has an asymmetrical - only approved for right-hand traffic - prism reflector and parking light, E-approved. Sensational - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55 W Mounting: bottom mount Diameter: 157 mm Depth: 220 mm Holder center mounting screw to front: 127 mm Holder gap: 18 mm Connections White cable = low beam (+) Green cable = ground of H4 bulb Blue cable = high beam (+) Brown cable = parking light
(+) Black cable = ground of parking light (-) Variants 223-031 - Chrome plated, with shade 223-033 - Black, with shade Scope of delivery 1 piece main headlight with bulb Notes Asymmetrical reflector - onl...

Availability: In Stock
