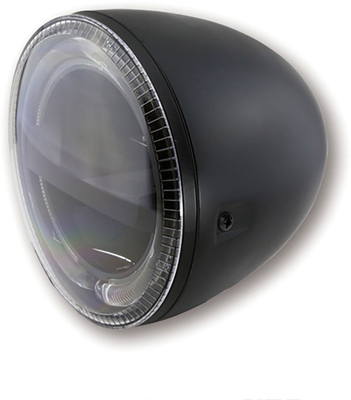

Highsider Circle, LED Headlight 5 3/4 Inch

HIGHSIDER 5 3/4 inch LED main headlight CIRCLE, E-approved. The Light Guide technology creates a very homogeneous light ring with daytime running and parking light function. The CIRCLE headlight is available in a high quality metal housing, either for lower or side mounting. The bright joy - give your bike a distinctive style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Dimensions Diameter headlight insert: 146.5 mm Depth: 167 mm with glass Mounting side 223-046: with mounting screws M6 Bottom mounting 223-048: with M6 mounting screws Connections 12, 5 Volt DC Green cable = ground White cable = low beam Blue cable = high beam Brown cable = parking light Red cable = daytime running light Variants 223-046 - Black, side mount
223-048 - Black, bottom mount Scope of delivery 1 x main headlight, E-approved Mounting hardware

Availability: In Stock
Supplier: Motoin SE
SKU: se-11083592-001
