Highsider CBW1, CAN-BUS Resistor

Product Description

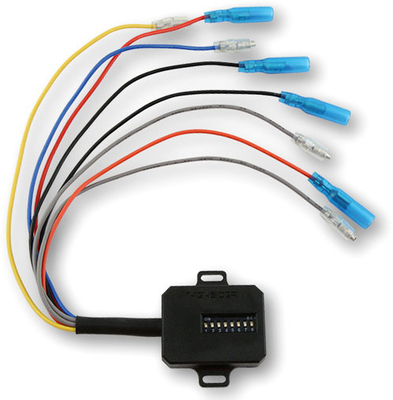

HIGHSIDER CAN-BUS resistor CBW1 with DIP switch. The newly developed HIGHSIDER CAN-BUS resistor CBW1 fits most vehicles that have a CAN-BUS system. The resistor CBW1 provides a required electrical load for their vehicle, which leads to no error message in the cockpit with accessory turn signals when the dip switches are set correctly. In addition, there is a fail-safe feature. That is: In the event of failure of the accessory turn signals due to an electronic defect, an error message is immediately displayed in the cockpit. Features The following resistance values can be set: 150 Ohm 170 Ohm 200 Ohm 240 Ohm 300 Ohm 400 Ohm 600 Ohm 1200 Ohm

Dimensions Height = 11 mm Width = 31 mm (without lugs) Width = 46 mm (with lugs) length = 40 mm Cable length = 200 mm with pins Connections Yellow = Input channel 1 (+) Orange = Output channel 1 (+) Blue = input channel 2 (+) Red = Output channel 2 (+) Gray = Input ground (-) Black = Output ground (-) Scope of delivery 1 piece CAN-BUS resistor CBW1 2...
