HIGHSIDER 5 3/4 inch main headlight CLASSIC 1, bottom mount. H4 halogen main headlight in a high quality processed, black or chromed aluminum housing in retro look. The headlight has an asymmetrical
- only approved for right-hand traffic
- prism reflector & parking light, E-approved. Sensational
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55 W Mounting: bottom mount Diameter: 157 mm

Depth: 220 mm Holder center mounting screw to front: 127 mm Holder gap: 18 mm Connections White cable = low beam (+) Green cable = ground of H4 bulb Blue cable = high beam (+) Brown cable = parking light (+) Black cable = ground of parking light (-) Variants 223-030
- Chrome plated 223-032
- Black Scope of delivery 1 piece main headlight with bulb Notes Asymmetrical reflector
- only approved for right-hand traffic

...

Available

HIGHSIDER 5 3/4 inch main headlight CLASSIC 1 with shade, bottom mount. H4 halogen main headlight in a high quality processed, black or chromed aluminum housing in retro look with nostalgic shade (length: approx. 25 mm). The headlight has an asymmetrical
- only approved for right-hand traffic
- prism reflector & parking light, E-approved. Sensational
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55 W Mounting: bottom mount Diameter: 157 mm

Depth: 220 mm Holder center mounting screw to front: 127 mm Holder gap: 18 mm Connections White cable = low beam (+) Green cable = ground of H4 bulb Blue cable = high beam (+) Brown cable = parking light (+) Black cable = ground of parking light (-) Variants 223-031
- Chrome plated, with shade 223-033
- Black, with shade Scope of delivery 1 piece main headlight with bulb Notes Asymmetrical reflector
- onl...

...

Available

HIGHSIDER 4 1/2 inch main headlight CLASSIC 3 for bottom mount. HS1 halogen main headlight with parking light & a high-quality processed, chrome-plated aluminum housing available in black or chrome. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility, E-approved. Sensational
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Illuminant: HS1, 12 V 35/35 W Mounting: bottom mount Diameter: 125 mm

Depth: 167 mm Holder center mounting screw to front: 116 mm Mounting: bottom mount Connections White cable = low beam (+) Green cable = bulb ground Blue cable = high beam (+) Red-black cable = parking light (+) Black cable = ground parking light (-) Variants 223-037
- Chrome plated 223-038
- Black Scope of delivery 1 piece main headlight with bulb Notes Symmetrical reflector
- also approved for left-hand traffic.

...

Available

HIGHSIDER CLASSIC handlebar end mirror, E-approved. Noble, CNC-milled handlebar end mirror with a round head made from high quality aluminum. The stylized propeller on the back of the mirror head emphasizes the extraordinary design of this model. Thanks to an innovative universal clamping system, the mirrors fit handlebars with an inner handlebar diameter of 12 to 22 mm. The stem is adjustable up & down & offers an even better view to the rear & more safety. Can be used for right & left side. Prudence with style
- whether classic or modern. The HIGHSIDER mirror series are characterized by striking design & aerodynamic function. So you keep the overview.

Dimensions Total

Width: 40 mm (adjustable) Total

Height: approx. 150 mm diameter head: 100 mm Handle length: approx. 95 mm Central screw: M6 x 1.0 mm hexagon socket screw Variant 301-008
- Black 301-009
- Chrome plated Scope of delivery 1 piece incl. mounting set & universal clamping system

...

Available

Handlebar weights made from chrome-plated or black aluminum. Universal fit for handlebars with inner diameters from 12 to 22 mm
-
...

Available

HIGHSIDER LED turn signals with CNC mirror mount TYPE 1. These LED turn signals can be mounted in their holders made from black anodized aluminum quite conveniently on the rear view mirrors & that looks snazzy on scramblers, custom bikes, choppers or cafe racers. The turn signals are appropriate for the front, but can also be mounted horizontally as well as vertically at the rear if required, E-approved for front & rear. In the right direction
- with the innovative turn signal series from HIGHSIDER you show not only where you want to go, but also who you are. This is directional design at its best.

Dimensions Height with holder: 31.6 mm

Height: 13.6 mm

Width: 24 mm

Depth: 14 mm Mounting Ø inside: 10 mm Ø outside: 18 mm Connections Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of LED turn signals 204-116

...

Available

HIGHSIDER control display instrument with a CNC machined aluminum housing & heavily tinted glass for installation. In operating mode, the icon corresponding to the function is displayed. The indicators at a glance 2x turn signal High beam Neutral Oil pressure It fits you
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With the highest level of quality & functionality, you can easily customize your bike to your liking.

Dimensions

Width: 57 mm

Height: 17.5 mm

Depth: 18 mm Connections Black cable (ground) + orange cable = turn signal left Black cable (ground) + blue cable = turn signal right Black wire (ground) + yellow wire = high beams If neutral or oil pressure is switched negative: Connect gray wire to neutral signal & brown wire to 12V (+). Connect green cable to oil pressure signal & violet cable to 12V (+) If neutral or oil pressure is switched positive: Connect brown wire to neutral signal & gray wire to ground (-). Connect v...

...

Available

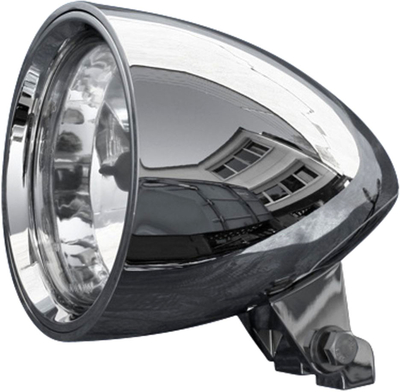

Highsider Classic 3, HS1 Headlight 4 1/2 Inch

HIGHSIDER 4 1/2 inch main headlight CLASSIC 3 for bottom mount. HS1 halogen main headlight with parking light and a high-quality processed, chrome-plated aluminum housing available in black or chrome. The reflector emits a bright, symmetrical light - for good road illumination and optimum visibility, E-approved. Sensational - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Illuminant: HS1, 12 V 35/35 W Mounting: bottom mount Diameter: 125 mm Depth: 167 mm Holder center mounting screw to front: 116 mm Mounting: bottom mount Connections White cable = low beam (+) Green cable = bulb ground Blue cable = high beam (+) Red-black cable = parking light (+) Black cable =
ground parking light (-) Variants 223-037 - Chrome plated 223-038 - Black Scope of delivery 1 piece main headlight with bulb Notes Symmetrical reflector - also approved for left-hand traffic.

Availability: In Stock
Supplier: Motoin SE
SKU: se-11083801-001
