The RAM-B-238U ball base consists of a 1" / 25 mm B size rubber ball connected to a 2.43" x 1.31" / 6.2 x 3.3 cm diamond plate. The diamond plate features two holes that measure 1.912" / 4.85 cm from center to center, matching the industry-standard AMPS hole pattern. This diamond ball base is compatible with a wide variety of RAM® device holders & cradles. Features Diamond plate features industry-standard AMPS hole pattern & measures 2.43" x 1.31" / 6.2 x 3.3 cm Compatible with several RAM® device holders & cradles, ball & socket technology allows for near-infinite adjustability made from powder-coated, marine-grade aluminum for durability & reliability in the most demanding environments

Dimensions Hole pattern 2-hole AMPS: 1.912" / 4.85 cm B size Ball 1" / 25 mm Base size 2.43" x 1.31" / 6.2 x 3.3 cm, diamond shaped Weight Capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr.

...

Available

The RAM-B-202U consists of a 1" / 25 mm B size rubber ball connected to a 2.5" / 5 cm diameter round plate. This mounting component

Includes:: pre-drilled holes using the universal AMPS hole pattern. Features 2.5" / 5 cm round plate connects to RAM® device holders containing the universal AMPS hole pattern Included B size 1" / 25 mm RAM® rubber ball allows for connection to any B size RAM® double socket arm, ball & socket technology allows for near-infinite adjustability made from powder-coated, marine-grade aluminum for durability & reliability in the most demanding environments

Dimensions Hole pattern 4-hole AMPS: 1.181" x 1.496" / 3.0 x 3.8 cm Hole pattern 3-hole 120-Degree: 1.812" / 4.6 cm diameter B size Ball 1" / 25 mm Base diameter 2" / 5 cm Weight Capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr.

...

Available

The RAM-B-347U base consists of a B size 1" / 25 mm diameter rubber ball connected to a 2" x 1.7" square base. The base has four pre-drilled holes at each corner, using the universal AMPS hole pattern. Features 2" x 1.7" / 50 x 43 mm square ball base features industry-standard AMPS hole pattern with four pre-drilled holes at each corner Included B size 1" / 25 mm RAM® rubber ball allows for connection to any B size RAM® double socket arm, ball & socket technology allows for near-infinite adjustability made from powder-coated, marine-grade aluminum for durability & reliability in the most demanding environments

Dimensions Hole pattern 4-hole AMPS: 1.181" x 1.496" / 3.0 x 3.8 cm B size Ball 1" / 25 mm 2" x 1.7" / 50 x 43 mm square ball base Weight Capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr.

...

Available

The RAM-B-231-2 consists of a 1" / 25 mm diameter rubber ball connected at right angles to a base that contains a flexible metal strap. The strap base tightening screw is encased in a compact housing for a clean, safe finish. The strap is long enough to wrap around handle bar posts found on most ATV, UTV, Snowmobiles, Motorcycles & any other applications you can think of. Features Included B size 1" / 25 mm RAM® rubber ball allows for connection to any B size RAM® double socket arm, ball & socket technology allows for near-infinite adjustability made from Powder-coated, marine-grade aluminum for durability & reliability in the most demanding marine environments Hardware included 1 strap clamp adapter 2 1/4"-20 x 1" machine screws 2 1/4"-20 Nylock nuts 1 Zinc worm drive strap clamp 1 6" rubber strip 1 1/4"-20 U-bolt for 0.5"
- 1" rails 2 rubber caps 1 U-bolt spacer

Dimensions B size Ball 1" / 25 mm Strap clamp diameter 1.57"
- 3.15" / 40
- 80 mm Weight capacity Standard use: 2 lbs /...

...

Available

The RAM-B-309-2U connects to your handlebar clutch/brake clamp, left or right side, & holds two 1" / 25 mm diameter mounting ball. The ball that is connected between the hole centers is removable. The base fits the control clamps on your motorcycle with 40 mm x 6 mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-2 base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" / 24 mm & a maximum of 1.58" / 40 mm. Features Combination brake/clutch reservoir base for motorcycles with two mounting balls Included B size 1" / 25 mm RAM® rubber ball allows for connection to any B size RAM® double socket arm, ball & socket technology allows for near-infinite adjustability made from Powder-coated, marine-grade aluminum for durability & reliability in the most demanding marine environments Hardware included 2 M6 x 55 mm hex bolts 2 1/4-20 x 2" hex bolts 2 1/4"-20 x 2.5" he... ...

Available

The RAP-B-200-2U consists of double 1" / 25 mm B size diameter open sockets with a 360-degree center rotation point & a connecting 180-degree swivel joint. The central pivot point provides unsurpassed adjustability for 1" / 25 mm B size ball bases, device holders, & adapters that are connected via the sockets. Features Double socket swivel & ratchet arm features 360-degree center rotation & 180-degree swivel joint with an overall length of 6.25" / 159 mm & a socket-to-socket length of 5.5" / 140 mm Attaches to any B size RAM® ball component, including mounting bases & device holders Double ball & socket technology allows for near-infinite adjustability of your RAM® mounting system

Dimensions Ball size B 1" / 25 mm Socket distance 5.5" / 140 mm Overall length 6.25" / 159 mm Weight capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr.

...

Available

The RAM-B-230 double ball adapter consists of two attached B size 1" / 25 mm rubber balls that allow the connection of two B size double socket arms. When measured from ball center to ball center, the length is 1.75" / 4.5 cm. Features The perfect adapter for connecting two B size RAM® Mounts double socket arms for extra extension or articulation Consists of two B size 1" / 25 mm RAM® rubber balls connected by a. 75" /19 mm length post Post is made from powder-coated, marine-grade aluminum for durability & reliability in the most demanding environments

Dimensions Ball size B 1" / 25 mm Socket distance 1.75" / 45 mm Overall length 2.54" / 65 mm Weight capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr.

...

Available

The RAP-B-378U consists of a 2.5" / 5 cm composite B size ball base, double-sided adhesive PSA stick pad, & sealed alcohol prep pad. This base will attach to all RAM® B size double socket arms, allowing you to connect a compatible device holder. Features Flex adhesive ball base provides a strong mounting surface in a wide variety of use cases, such as a vehicle dash Included B size 1" / 25 mm RAM® rubber balls allows for connection to any B size RAM® double socket arm, ball & socket technology allows for near-infinite adjustability made from high-strength composites for durability & reliability in the most demanding environments

Dimensions Base diameter 2" / 5 cm B size Ball 1" / 25 mm Weight capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr.

...

Available

The RAM® motorcycle fork stem base is one of the cleanest & most popular solutions for mounting your favorite device on the center of your bike. Featuring a B size 1" / 25 mm rubber ball, this part is designed to fit into the cylindrical bore wall of fork stems & will work with stems that measure 12 mm to 38 mm (.5” to 1.49”) in diameter. Hardware included 1 expansion plug for 12 mm
- 38 mm (.5"
- 1.49") fork stem holes 1 M5 x 60 mm machine screw 1 steel washer set 1 nut pocket washer set 1 brass Nylock nut Features Designed to fit into the cylindrical bore wall of fork stems Included B size 1" / 25 mm RAM® rubber ball allows for connection to any B size RAM® double socket arm, ball & socket technology allows for near-infinite adjustability made from powder-coated, marine-grade aluminum for durability & reliability in the most demanding environments

Dimensions Range 12 mm
- 38 mm (.5"
- 1.49") fork stem holes B size Ball 1" / 25 mm Weight capacity Standard use: 2 lbs / 900 gr. He...

...

Available

The RAM-HOL-GA48U consists of a high-strength composite cradle that will allow for the attachment of RAM® components that contain the universal AMPS hole pattern. Compatible & interchangeable with a wide range of popular RAM® Mounts, this cradle is ready to compliment your GPS & become the most useful accessory in your vehicle. Included is a set of two nuts & bolts. Included Hardware 2 8-32 x 1/2" machine screws 2 8-32 x 5/8" machine screws 2 8-32 x 3/4" machine screws 2 8-32 Nylock nuts Hole pattern 2-Hole AMPS: 1.912" / 48.5 mm Note This mount requires the standard belt clip button which is included with the purchase of the GPS unit from Garmin. Suitable for Garmin e Trex 10 Garmin e Trex 20 Garmin e Trex 20x Garmin e Trex 22x Garmin e Trex 30 Garmin e Trex 30x Garmin e Trex 32x ...

Available

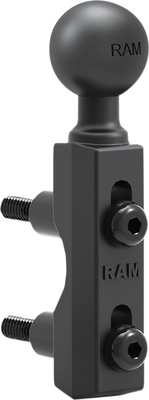

Ram Mount Brake/Clutch, Ball Mount

The RAM-B-309-1U attaches to your motorcycle s handlebar clutch/brake clamp and features one B size 1" / 25 mm rubber ball. The base fits the control clamps on your motorcycle with 40 mm x 6 mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1U base is compatible with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The hole centers have a minimum width of 0.94" / 24 mm and a maximum of 1.58" / 40 mm. Features Connects to your handlebar clutch/brake clamp with provided 40mm x 6mm stainless steel hardware Included B size 1" / 25 mm RAM® rubber ball allows for connection to any B size RAM® double socket arm, ball and socket technology allows for near-infinite adjustability Made of Powder-coated, marine-grade aluminum for
durability and reliability in the most demanding marine environments Hardware included 2 M6 x 55 mm hex bolts 2 1/4-20 x 2" hex bolts 2 1/4"-20 x 2.5" hex bolts 2 1/2" spacers 2 1/4" split lock washers Dimen...

Availability: In Stock
Supplier: Motoin SE
SKU: se-11074586-001

Description Reviews / Comments Add New

Product Description

The RAM-B-309-1U attaches to your motorcycle s handlebar clutch/brake clamp & features one B size 1" / 25 mm rubber ball. The base fits the control clamps on your motorcycle with 40 mm x 6 mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1U base is compatible with your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The hole centers have a minimum width of 0.94" / 24 mm & a maximum of 1.58" / 40 mm. Features Connects to your handlebar clutch/brake clamp with provided 40mm x 6mm stainless steel hardware Included B size 1" / 25 mm RAM® rubber ball allows for connection to any B size RAM® double socket arm, ball & socket technology allows for near-infinite adjustability made from Powder-coated, marine-grade aluminum for durability & reliability in the most demanding marine environments Hardware included 2 M6 x 55 mm hex bolts 2 1/4-20 x 2" hex bolts 2 1/4"-20 x 2.5" hex bolts 2 1/2" spacers 2 1/4" split lock washers Dimen...

Reviews/Comments

Add New

Jargon Buster

RAM - Random Access memory

Stainless steel - A stain and corrosion resistant steel blend

Steel - An alloy made predominately of Iron combined with <2% carbon

rubber - Synthetic rubber is any artificial elastomer, usually a polymer, and is used as a substitute for natural rubber.

rubber - Natural rubber is an elastomer derived from the latex containing sap of some plants.

40mm - The equivilent of 4cm

Size - is the measurement of how big an object is in space.

Powder - a object formed from many tiny pieces.

Width - The measurement of something from one side to the other.
