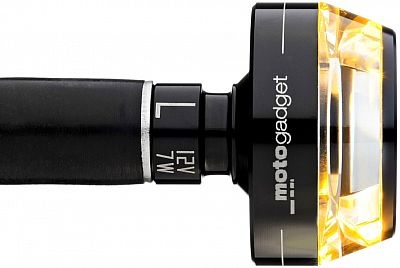

Motogadget Mo.blaze Disc, Bar-end Turn Signal

mo.blaze disc from motogadget - a handlebar end turn signal in a trend-setting design. The mo.blaze disc is the flashing signal light of the latest generation. The characteristic feature of the LED turn signal is the transparent light disk on a compact aluminum base, which harmoniously closes with the handlebar end grip. This is now our third turn signal to use the new TranzLight Technology (TLT, patent pending). This progressive development approach is not limited to simple miniaturization of turn signal housings but designs the light directly via a crystal-like plastic body. Only precise optical CAD calculations and state-of-the-art manufacturing processes make this novel design and its function possible. The light flux required for the TranzLight principle is generated by the
intensiLED® process developed by motogadget and consists of three important components: Selected high power LEDs with maximum efficiency and a total power of 7W with a lifetime of more than 50, 000 hrs. An IC-controlled constant current control clocked at 330kHz A special collimator optics, which couples the light of the LED into the plastic body with pinpoint accuracy The discreet aluminum housing is only used for the stable mounting of the glass body and the integration of control electronics and high-end LEDs. Of course, the housing is CNC-machined, black anodized or highly polished and finely inscribed by laser. The handlebar end turn signal builds very flat and appears neutral and inconspicuous due to the transparent disc. Thus, it fits many styles and the most diverse
motorcycles. The flasher can be operated like any other LED flasher with load resistors or all load-independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay+). Features Absolutely unique, independent design and functional principle Barely noticeable on handlebars when switched off Extremely bright light to the front, highly visible light to the rear State-of-the-art high-performance IntensiLED technology Electronic voltage conditioning and safe protection electronics Flashing indicator light can be omitted Closes the end of the handlebar very harmoniously - especially with mo.grip and other aluminum grips Specifications Diameter: 35 mm Total length over all: approx. 68 mm Partial length outside the handlebar: 20 mm Partial length inside the handlebar: 48 mm Cable length:
approx. 100 cm Weight: approx. 40 gr. Mounting: Supplied with clamping rubbers for metric steel and aluminum handlebars (22 mm and 1 inch handlebars ) with an inner diameter of 14 mm to 21 mm Power consumption: approx. 7 watts Scope of delivery Single handlebar end turn signal mo.blaze disc left or right with clamp for steel and aluminum handlebars (22 mm and 1 inch handlebars) with an inner diameter of 14 mm to 21 mm Installation instructions Note Please always order one left and one right turn signal for use as a pair.
