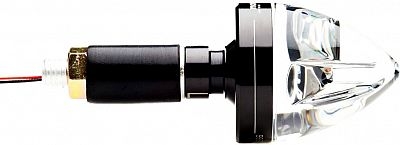

Motogadget Mo.blaze Cone, Bar-end Turn Signal

mo.blaze cone from motogadget - much more than just a handlebar end turn signal. The mo.blaze cone is the flashing signal light of the latest generation, awarded with the renowned iF product design award 2013. A well-known add-on part has been completely rethought, designed and technically very sophisticated implemented. Thanks to the new TranzLight-Technology (TLT, patent pending) from motogadget, the transparent body of the turn signal itself becomes the light medium. TranzLight-Technology® cleverly exploits the total reflection of light waves at interfaces of media with different optical densities. This progressive development approach is not limited to simple miniaturization of turn signal housings, but shapes the light directly via a crystal-like glass body. Only precise optical
CAD calculations and state-of-the-art manufacturing processes make this novel design and its function possible. The light flux required for the TranzLight principle is generated by the intensiLED® process developed by motogadget and consists of three important components: Specially selected, phosophor-converted high-power LED with highest efficiency and a total power of 3W with a lifetime of more than 50, 000 hrs. A 330kHz clocked IC controlled constant current source A special collimator optics, which couples the broadly scattering light of the LED into the plastic body with pinpoint accuracy. An important aspect of the TranzLight technology is the safety benefit due to the improved visibility of the flashing signal. The light is emitted at an angle of almost 180° and is therefore
visible from the front, rear and side. The blinker light can also be omitted - the function of the indicators can be checked directly at any time. A greatly reduced, discreet aluminum housing at the base is used only for the stable mounting of the plastic body and the integration of control electronics and high-end LEDs. Of course, the housing is made of solid aluminum, anodized in black or highly polished and finely inscribed by laser. The mo.blaze cone appears very neutral and inconspicuous due to the transparent plastic body. Thus, it fits many styles and the most diverse motorcycles. The transparent plastic body (PMMA) is extremely impact and scratch resistant. The turn signal can be operated like any other LED turn signal with load resistors or all load-independent flasher relays
(mo.flash, mo.wave, mo.stop, mo.relay+). The handlebar end turn signal mo.blaze cone presented here has an E-mark and is approved as a front turn signal. Features Absolutely unique, new design and functional principle Very neutral and light appearance on the handlebar due to transparent glass body State-of-the-art high-power LED technology Electronic voltage conditioning and safe protection electronics Very bright light to the front, well visible light to almost all sides Flashing indicator light can be omitted Specifications Diameter: 35 mm Total length over all: approx. 96 mm Partial length outside the handlebar: 43 mm Partial length inside the handlebar: 53 mm Cable length: approx. 100 cm Weight: approx. 45 gr. Mounting: Supplied with clamping rubbers for metric steel and aluminum
handlebars (22 mm and 1 inch handlebars ) with an inner diameter of 14 mm to 21 mm Power consumption: approx. 3 watts Scope of delivery Single handlebar end turn signal mo.blaze cone left or right with clamp for steel and aluminum handlebars (22 mm and 1 inch handlebars) with an inner diameter of 14 mm to 21 mm Installation instructions Note Please always order one left and one right turn signal for use as a pair.
