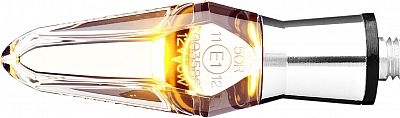

Motogadget Mo.blaze Ice, Turn Signal
Cool as Ice! The mo.blaze ice is the special LED mounted turn signal from motogadget. A well-known add-on part has been completely rethought, fazinierend designed and technically sophisticated implemented. The mo.blaze ice appears through the transparent glass body, which is made of a scratch-resistant plastic, very neutral and inconspicuous. The small billet aluminum base is available anodized black or highly polished. The turn signal matches all styles, paint schemes and a wide variety of motorcycles. Thanks to motogadget s TranzLight-Technology® (TLT, patent pending), the transparent body of the turn signal itself becomes the light source. TranzLight-Technology® cleverly uses the total reflection of light waves. This progressive development approach is not limited to simple
miniaturization of turn signal housings but shapes the light directly via a crystal-like glass body. Only precise optical CAD calculations and state-of-the-art manufacturing processes make this new design and its function possible. The light flux required for the TranzLight principle is generated by the intensiLED® process developed by motogadget and consists of three important pillars: Specially selected, phosophor-converted high-power LED with the highest efficiency and a total power of 3W with a lifetime of more than 50, 000 hrs. A 330kHz clocked IC controlled constant current source A special collimator optic, which couples the broadly scattering light of the LED into the glass body with pinpoint accuracy An important aspect of TranzLight technology is the safety benefit provided by
the improved visibility of the flashing signal. The light is emitted at an angle of almost 180° and is therefore visible from the front, rear and side. The mounted turn signal is mechanically decoupled from the mounting thread by means of a flexible absorber and is thus protected from vibration and mechanical impact. The flasher can be operated with load resistors or all our load-independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay+) like any other LED flasher. The mo.blaze ice surface-mounted turn signal presented here has an E-mark and is approved as a front and rear turn signal. Features Absolutely unique, new design and functional principle (TranzLight-Technology). Very neutral and light appearance due to transparent glass body State-of-the-art high-power LED
technology (IntensiLED) Electronic voltage conditioning and safe protection electronics Very bright light in direction of beam, well visible light to almost all sides Specifications Total length with thread: 83 mm Length without mounting thread: 65 mm Largest diameter: 20.5 mm Cable length: approx. 100 cm Weight: approx. 15 gr. Mounting: M8 threaded bolt Power consumption: approx. 3 Watt Scope of delivery Single turn signal mo.blaze ice with thread M8 M8 nut Installation instructions Note Please order two turn signals for use as one pair, four turn signals for front and rear.
miniaturization of turn signal housings but shapes the light directly via a crystal-like glass body. Only precise optical CAD calculations and state-of-the-art manufacturing processes make this new design and its function possible. The light flux required for the TranzLight principle is generated by the intensiLED® process developed by motogadget and consists of three important pillars: Specially selected, phosophor-converted high-power LED with the highest efficiency and a total power of 3W with a lifetime of more than 50, 000 hrs. A 330kHz clocked IC controlled constant current source A special collimator optic, which couples the broadly scattering light of the LED into the glass body with pinpoint accuracy An important aspect of TranzLight technology is the safety benefit provided by
the improved visibility of the flashing signal. The light is emitted at an angle of almost 180° and is therefore visible from the front, rear and side. The mounted turn signal is mechanically decoupled from the mounting thread by means of a flexible absorber and is thus protected from vibration and mechanical impact. The flasher can be operated with load resistors or all our load-independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay+) like any other LED flasher. The mo.blaze ice surface-mounted turn signal presented here has an E-mark and is approved as a front and rear turn signal. Features Absolutely unique, new design and functional principle (TranzLight-Technology). Very neutral and light appearance due to transparent glass body State-of-the-art high-power LED
technology (IntensiLED) Electronic voltage conditioning and safe protection electronics Very bright light in direction of beam, well visible light to almost all sides Specifications Total length with thread: 83 mm Length without mounting thread: 65 mm Largest diameter: 20.5 mm Cable length: approx. 100 cm Weight: approx. 15 gr. Mounting: M8 threaded bolt Power consumption: approx. 3 Watt Scope of delivery Single turn signal mo.blaze ice with thread M8 M8 nut Installation instructions Note Please order two turn signals for use as one pair, four turn signals for front and rear.
