HIGHSIDER TOREZZO fairing mirror with LED turn signal. Functionality combined with great looks
- aluminum fairing mirror with LED
...

HIGHSIDER TOREZZO mirror, black, E-approved. Sporty cut handlebar mirror with a black anodized aluminum mirror head.



...

HIGHSIDER TOREZZO mirror with LED turn signal. Mirror & turn signal are E-approved. Functionality combined with great looks
- aluminum
...

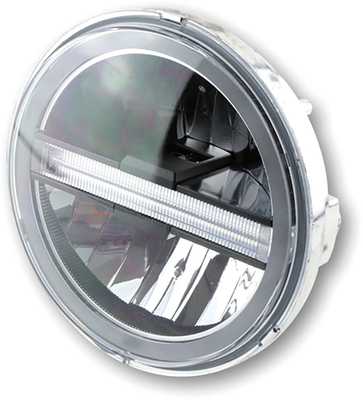

This round, chrome-plated reflector with clear glass has a high beam, low beam, parking light & daytime running light function. The daytime running light & position light are installed in a central strip, creating a very attractive light pattern
- the low beam shines above the strip, the high beam below. The reflector emits an asymmetrical
- only approved for right-hand traffic
- luminous flux, E-approved. HIGHSIDER highlights
- give your bike your unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

Dimensions Diameter A = 177 mm Diameter GA = 168 mm Diameter I = 160 mm T = 61 mm R = 10 mm Connections Black cable = ground (-) Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W Yellow cable = high beam (+), power consumption at 12V: 1.3A, 13W Black cable = ground (-) Daytime running light Black cable = ground (-) Red cable = daytime running light (+), power consumption at 12V: 1.2A, 14W...





...

HIGHSIDER LED main headlight insert TYPE 5, E-approved. This round, chrome-plated reflector with black trim & clear glass has a high beam, low beam & parking light function. Also suitable as inserts for exchange for e.g. the following vehicles Victory Highball Victory Gunner Indian Scout Bobber Indian Scout Sixty HIGHSIDER Highlights
- give your bike your unmistakable style! The fancy design & the perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

Dimensions Diameter A = 145 mm Diameter GA = 133 mm Diameter I = 129 mm T = 60 mm R = 10 mm Cable length: 400 mm Connections Power input = 3 pin connector Black cable = ground (-) Red cable = low beam (+) White cable = high beam (+) Brown cable = parking light (+) Scope of delivery 1 piece main headlight insert 226-017, E-approved Note The enclosed 3-pin standard plug must be mounted after reflector installation.


...

HIGHSIDER ULTIMATE LED headlight with HIGHSIDER Wave holder, black, side mount. There are plenty of round headlights. All the more unusual design your motorcycle if you choose this set with rectangular headlights. Connected to the HIGHSIDER Wave holder, this LED headlight set consists of a high beam & low beam headlight with position light. On the back from the aluminum housing are cooling fins. The clear, simple design of the headlight set are suitable for streetfighter, cruiser & naked bikes. Sensational
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions Width 152 mm Depth 98 mm

Height: 121 mm Distance of the mounting holes (center
- end): 62 mm Fastening: Mounting holes on the side with Ø M 10 Connections Black cable (2x) = ground (-) Yellow cable = high beam (+) Blue cable = low beam (+) White cable = position light (+) Scope of delivery 1 set 223-085 consisting of 1 Highs...





...

HIGHSIDER LED headlight ULTIMATE with Z-bracket, black, side mount. There are plenty of round headlights. All the more unusual design your motorcycle, if you choose this set with rectangular headlights. Connected to a holder in Z-shape, this LED headlight set consists of a high beam & low beam headlight with position light. On the back from the aluminum housing are cooling fins. The clear, simple design of the headlight set are suitable for streetfighter, cruiser & naked bikes. Sensational
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions Width 146 mm Depth 73 mm

Height: 124 mm Distance of the mounting holes (center
- center): 62 mm Mounting: Mounting holes on the side with Ø 10 mm Connections Black cable (2x) = ground (-) Yellow cable = high beam (+) Blue cable = low beam (+) White cable = position light (+) Scope of delivery 1 Set 223-084 consisting of 1 Highsider Ultimate LED low beam headlight 1 Highsider Ultimate LED spotlight Highsider Ultimate Z-bracket right & left





...

HIGHSIDER LED spotlight ULTIMATE-HIGH, E-approved. There are plenty of round headlights. All the more fancy design your motorcycle if you choose a rectangular headlight. The LED spotlight has an aluminum housing with cooling fins on the back. For mounting the headlight are mounting options on the side & bottom. There are four M4 threads on each side & an additional three M4 threads on the bottom. The clear, simple design is suitable for streetfighters, cruisers & naked bikes. Sensational
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions

Width: 137 mm

Height: 55 mm

Depth: 58 mm Technical specifications Voltage: 12 V Assignment Yellow = high beam (+) Black = Ground (-) Scope of delivery 1 piece driving lamp 223-083 Optional orderable Part no.: 223-082 HIGHSIDER LED low beam headlight ULTIMATE-LOW








...

HIGHSIDER LED low beam headlight ULTIMATE-LOW, E-approved. There are plenty of round headlights. All the more unusual design your motorcycle, if you choose a rectangular headlight. The LED low beam headlight with position light has an aluminum housing with cooling fins on the back. For mounting the headlight are mounting options on the side & bottom. There are four M4 threads on each side & an additional three M4 threads at the bottom. The clear, simple design is suitable for streetfighters, cruisers & naked bikes. Sensational
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions

Width: 137 mm

Height: 55 mm

Depth: 58 mm Technical specifications Insert: symmetrical Voltage: 12 V Assignment Blue = low beam (+) White = front position light (+) Black = ground (-) Scope of delivery 1 piece low beam headlight 223-082 Optionally orderable Part no.: 223-083 HIGHSIDER LED spotlight ULTI...








...

HIGHSIDER black anodized universal adapter with aluminum cover. Used to attach fairing mirrors to the fairing, for example. The short version fits fairing mirrors with part no. 301-027, 301-050, 301-447, 301-481, 301-573, 301-580 & 301-582. Precisely matched
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With the highest level of quality & functionality, you can easily customize your bike to your liking.

Dimensions universal adapter short 304-020 Total length: 60 mm

Width: 18 mm Screw hole spacing: 20 mm
- 42 mm

Dimensions universal adapter long 304-022 Total length: 76 mm

Width: 18 mm Screw hole spacing: 21 mm
- 58 mm Scope of delivery 2 x universal adapter black anodized 2 x flat head screw M6- hexagon socket (for mounting the stems) 4 x M6x 10mm hexagon socket screw stainless steel 4 x M6x 15mm hexagon socket screw stainless steel 4 x M6x 20mm hexagon socket screw stainless steel 4 x M6x 25mm hexagon socket screw stainless steel 4 x M6x 30mm hexagon socket screw stainless steel 4 x M6 self-locking nut 4 x washer, diameter: 11.8 x 6 x 1.4 mm 4 x bushing, diameter: 9.8 x 6 x 1 mm 4 x bushing, diameter: 11 x 6 x 9.7 mm 4 x bushing, diameter: 10.5 x 6 x 7 mm










...
