HIGHSIDER TETRA handlebar weights, bead blasted black satin finish. With these distinctive handlebar ends with handlebar end mirror receptacle, you can design your bike in detail according to your ideas. These end pieces serve as a receptacle for all HIGHSIDER & SHIN YO handlebar end mirrors with handlebar outer clamp. In addition, handlebar ends serve to reduce annoying vibrations on the handlebar. Thanks to clamping system with various sleeves universal fit for 7/8 (Ø22 mm), 1 inch (Ø25.4 mm) or X-bar (Ø28.6 mm) tubular handlebars with an inner diameter of 12 to 22 mm.

Dimensions Diameter: 34.4 mm

Width: 20 mm Mounting for handlebar end mirror with outer clamp Diameter: 29.90 mm

Width: 12 mm Scope of delivery 1 pair of handlebar weights 161-314 2 clamping sleeves each with Ø 12 & 16 mm 2 spacer sleeves each with Ø 14, 18 & 21 mm 2 x M6 central screws 2 x M6 cone nuts Note For bar ends with clamping system, the ends of the bar must not be blocked by threaded inserts or similar. Ha...





...

HIGHSIDER TOREZZO fairing mirror, E-approved. Sporty cut fairing mirror with a black anodized aluminum mirror head. Character & overview
-
...

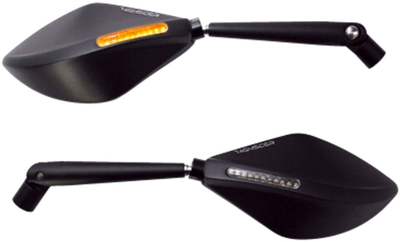

HIGHSIDER TOREZZO fairing mirror with LED sequence indicators, E-approved. The second generation of the popular fairing mirror with embedded LED turn signal on the back of the mirror now features the trendy sequence effect. On/ Off was yesterday, with this cool sequence effect the LEDs light up one after the other from the inside out, creating a visual wipe effect. Look forward to the elegant fairing mirrors made from black anodized aluminum, whose form & function blend beautifully. Mirror & turn signals have an E-mark, which means that the complete mirror can be used legally in road traffic. The assembly of mirrors with LED turn signals is done in pairs. Make sure that the direction indicators are oriented in the direction of travel parallel to the vehicle & forward to the ground. Character & overview
- whether retro or modern. The HIGHSIDER mirror series are characterized by characteristic design & aerodynamic function. This is circumspection in perfection.

Dimensions Width he...


...

HIGHSIDER TOREZZO fairing mirror with LED turn signal. Functionality combined with great looks
- aluminum fairing mirror with LED
...

HIGHSIDER TOREZZO mirror, black, E-approved. Sporty cut handlebar mirror with a black anodized aluminum mirror head.



...

This round, chrome-plated reflector with clear glass has a high beam, low beam, parking light & daytime running light function. The daytime running light & position light are installed in a central strip, creating a very attractive light pattern
- the low beam shines above the strip, the high beam below. The reflector emits an asymmetrical
- only approved for right-hand traffic
- luminous flux, E-approved. HIGHSIDER highlights
- give your bike your unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

Dimensions Diameter A = 177 mm Diameter GA = 168 mm Diameter I = 160 mm T = 61 mm R = 10 mm Connections Black cable = ground (-) Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W Yellow cable = high beam (+), power consumption at 12V: 1.3A, 13W Black cable = ground (-) Daytime running light Black cable = ground (-) Red cable = daytime running light (+), power consumption at 12V: 1.2A, 14W...





...

HIGHSIDER LED main headlight insert TYPE 5, E-approved. This round, chrome-plated reflector with black trim & clear glass has a high beam, low beam & parking light function. Also suitable as inserts for exchange for e.g. the following vehicles Victory Highball Victory Gunner Indian Scout Bobber Indian Scout Sixty HIGHSIDER Highlights
- give your bike your unmistakable style! The fancy design & the perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

Dimensions Diameter A = 145 mm Diameter GA = 133 mm Diameter I = 129 mm T = 60 mm R = 10 mm Cable length: 400 mm Connections Power input = 3 pin connector Black cable = ground (-) Red cable = low beam (+) White cable = high beam (+) Brown cable = parking light (+) Scope of delivery 1 piece main headlight insert 226-017, E-approved Note The enclosed 3-pin standard plug must be mounted after reflector installation.


...

HIGHSIDER 5 3/4 inch LED main headlight insert TYPE 6, E-approved. This round, chrome reflector has high beam, low beam, daytime running lights & a parking light ring. The daytime running light is centered in the strip & the low beam shines in the upper half from the insert. When the high beam is on, both halves illuminate. HIGHSIDER highlights
- give your bike your unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

Dimensions Diameter A = 143 mm Diameter GA = 133 mm Diameter I = 131 mm, T = 70 mm, R = 13 mm Cable length: 400 mm Connections 3 pin connector White = low beam (+) Blue = High beam (+) Green = Ground (-) Red = TFL/DRL (+) to ignition positive Brown = position light (+) Scope of delivery 1 piece main headlight insert, E-approved, incl. 1x connector housing Note The daytime running light can also be used on vehicles without a light switch. For this purpose, the following components ar...


...

HIGHSIDER ULTIMATE LED headlight with HIGHSIDER Wave holder, black, side mount. There are plenty of round headlights. All the more unusual design your motorcycle if you choose this set with rectangular headlights. Connected to the HIGHSIDER Wave holder, this LED headlight set consists of a high beam & low beam headlight with position light. On the back from the aluminum housing are cooling fins. The clear, simple design of the headlight set are suitable for streetfighter, cruiser & naked bikes. Sensational
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions Width 152 mm Depth 98 mm

Height: 121 mm Distance of the mounting holes (center
- end): 62 mm Fastening: Mounting holes on the side with Ø M 10 Connections Black cable (2x) = ground (-) Yellow cable = high beam (+) Blue cable = low beam (+) White cable = position light (+) Scope of delivery 1 set 223-085 consisting of 1 Highs...





...

HIGHSIDER LED headlight ULTIMATE with Z-bracket, black, side mount. There are plenty of round headlights. All the more unusual design your motorcycle, if you choose this set with rectangular headlights. Connected to a holder in Z-shape, this LED headlight set consists of a high beam & low beam headlight with position light. On the back from the aluminum housing are cooling fins. The clear, simple design of the headlight set are suitable for streetfighter, cruiser & naked bikes. Sensational
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions Width 146 mm Depth 73 mm

Height: 124 mm Distance of the mounting holes (center
- center): 62 mm Mounting: Mounting holes on the side with Ø 10 mm Connections Black cable (2x) = ground (-) Yellow cable = high beam (+) Blue cable = low beam (+) White cable = position light (+) Scope of delivery 1 Set 223-084 consisting of 1 Highsider Ultimate LED low beam headlight 1 Highsider Ultimate LED spotlight Highsider Ultimate Z-bracket right & left





...
