HIGHSIDER TOREZZO fairing mirror with LED sequence indicators, E-approved. The second generation of the popular fairing mirror with embedded LED turn signal on the back of the mirror now features the trendy sequence effect. On/ Off was yesterday, with this cool sequence effect the LEDs light up one after the other from the inside out, creating a visual wipe effect. Look forward to the elegant fairing mirrors made from black anodized aluminum, whose form & function blend beautifully. Mirror & turn signals have an E-mark, which means that the complete mirror can be used legally in road traffic. The assembly of mirrors with LED turn signals is done in pairs. Make sure that the direction indicators are oriented in the direction of travel parallel to the vehicle & forward to the ground. Character & overview
- whether retro or modern. The HIGHSIDER mirror series are characterized by characteristic design & aerodynamic function. This is circumspection in perfection.

Dimensions Width he...


...

HIGHSIDER TOREZZO fairing mirror with LED turn signal. Functionality combined with great looks
- aluminum fairing mirror with LED
...

HIGHSIDER TOREZZO mirror, black, E-approved. Sporty cut handlebar mirror with a black anodized aluminum mirror head.



...

HIGHSIDER TOREZZO mirror with LED turn signal. Mirror & turn signal are E-approved. Functionality combined with great looks
- aluminum
...

This round, chrome-plated reflector with clear glass has a high beam, low beam, parking light & daytime running light function. The daytime running light & position light are installed in a central strip, creating a very attractive light pattern
- the low beam shines above the strip, the high beam below. The reflector emits an asymmetrical
- only approved for right-hand traffic
- luminous flux, E-approved. HIGHSIDER highlights
- give your bike your unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

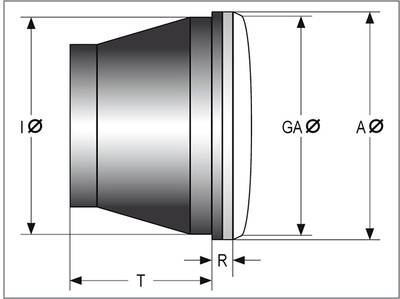

Dimensions Diameter A = 177 mm Diameter GA = 168 mm Diameter I = 160 mm T = 61 mm R = 10 mm Connections Black cable = ground (-) Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W Yellow cable = high beam (+), power consumption at 12V: 1.3A, 13W Black cable = ground (-) Daytime running light Black cable = ground (-) Red cable = daytime running light (+), power consumption at 12V: 1.2A, 14W...





...

HIGHSIDER 5 3/4 inch LED main headlight insert TYPE 6, E-approved. This round, chrome reflector has high beam, low beam, daytime running lights & a parking light ring. The daytime running light is centered in the strip & the low beam shines in the upper half from the insert. When the high beam is on, both halves illuminate. HIGHSIDER highlights
- give your bike your unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

Dimensions Diameter A = 143 mm Diameter GA = 133 mm Diameter I = 131 mm, T = 70 mm, R = 13 mm Cable length: 400 mm Connections 3 pin connector White = low beam (+) Blue = High beam (+) Green = Ground (-) Red = TFL/DRL (+) to ignition positive Brown = position light (+) Scope of delivery 1 piece main headlight insert, E-approved, incl. 1x connector housing Note The daytime running light can also be used on vehicles without a light switch. For this purpose, the following components ar...


...

HIGHSIDER ULTIMATE LED headlight with HIGHSIDER Wave holder, black, side mount. There are plenty of round headlights. All the more unusual design your motorcycle if you choose this set with rectangular headlights. Connected to the HIGHSIDER Wave holder, this LED headlight set consists of a high beam & low beam headlight with position light. On the back from the aluminum housing are cooling fins. The clear, simple design of the headlight set are suitable for streetfighter, cruiser & naked bikes. Sensational
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions Width 152 mm Depth 98 mm

Height: 121 mm Distance of the mounting holes (center
- end): 62 mm Fastening: Mounting holes on the side with Ø M 10 Connections Black cable (2x) = ground (-) Yellow cable = high beam (+) Blue cable = low beam (+) White cable = position light (+) Scope of delivery 1 set 223-085 consisting of 1 Highs...





...

HIGHSIDER LED headlight ULTIMATE with Z-bracket, black, side mount. There are plenty of round headlights. All the more unusual design your motorcycle, if you choose this set with rectangular headlights. Connected to a holder in Z-shape, this LED headlight set consists of a high beam & low beam headlight with position light. On the back from the aluminum housing are cooling fins. The clear, simple design of the headlight set are suitable for streetfighter, cruiser & naked bikes. Sensational
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions Width 146 mm Depth 73 mm

Height: 124 mm Distance of the mounting holes (center
- center): 62 mm Mounting: Mounting holes on the side with Ø 10 mm Connections Black cable (2x) = ground (-) Yellow cable = high beam (+) Blue cable = low beam (+) White cable = position light (+) Scope of delivery 1 Set 223-084 consisting of 1 Highsider Ultimate LED low beam headlight 1 Highsider Ultimate LED spotlight Highsider Ultimate Z-bracket right & left





...

HIGHSIDER LED spotlight ULTIMATE-HIGH, E-approved. There are plenty of round headlights. All the more fancy design your motorcycle if you choose a rectangular headlight. The LED spotlight has an aluminum housing with cooling fins on the back. For mounting the headlight are mounting options on the side & bottom. There are four M4 threads on each side & an additional three M4 threads on the bottom. The clear, simple design is suitable for streetfighters, cruisers & naked bikes. Sensational
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions

Width: 137 mm

Height: 55 mm

Depth: 58 mm Technical specifications Voltage: 12 V Assignment Yellow = high beam (+) Black = Ground (-) Scope of delivery 1 piece driving lamp 223-083 Optional orderable Part no.: 223-082 HIGHSIDER LED low beam headlight ULTIMATE-LOW








...

HIGHSIDER LED low beam headlight ULTIMATE-LOW, E-approved. There are plenty of round headlights. All the more unusual design your motorcycle, if you choose a rectangular headlight. The LED low beam headlight with position light has an aluminum housing with cooling fins on the back. For mounting the headlight are mounting options on the side & bottom. There are four M4 threads on each side & an additional three M4 threads at the bottom. The clear, simple design is suitable for streetfighters, cruisers & naked bikes. Sensational
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions

Width: 137 mm

Height: 55 mm

Depth: 58 mm Technical specifications Insert: symmetrical Voltage: 12 V Assignment Blue = low beam (+) White = front position light (+) Black = ground (-) Scope of delivery 1 piece low beam headlight 223-082 Optionally orderable Part no.: 223-083 HIGHSIDER LED spotlight ULTI...








...
