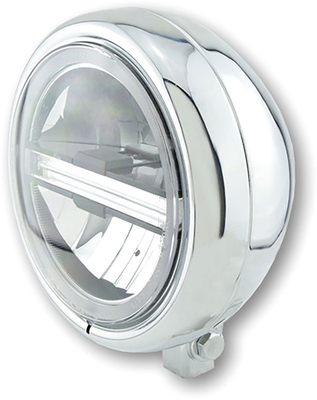

Highsider Pecos Typ 6, LED Headlight 5 3/4 Inch

Product Description

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 6 with TFL, black matt or chrome, E-approved. Puristically shaped main headlight with metal housing for lower mounting. The latest lighting technology & the extraordinary light design distinguish the PECOS TYP 6. The special feature of this LED headlight is the additional features with daytime running light & parking light ring. The daytime running light for even more visibility in road traffic is located in the centrally positioned strip. In the upper half of the headlight, the low beam lights up & when the high beam is switched on, both halves light up. Catch the eye
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Features Illuminant: LED Glass: clear Chromed reflector with TFL/DRL & parking light ring Fastening on the side: with M6 thread Bottom mounting: with threaded bolt M10 x length 25 mm

Dimensions Housing diameter: 165 mm

Depth: 135 mm Connections 3-pin connector White = low beam (+) Blue = High beam (+) Green = Ground (-) Red = TFL/DRL (+) to ignition plus Brown = position light (+) Variants 223-219- Black, side mount 223-221
- Black, bottom mount 223-222
- Chrome plated, bottom mount Scope of delivery 1 piece main headlight, E-approved Optionally orderable 208-108 HIGHSIDER DRL CONTROL- BOX CB1, Daytime running light control box for vehicles without light switch, 12V 240-044 Light switch on/off with clamp for handlebar mounting Note If it should happen with this product in connection with the HIGHSIDER DRL CONTROL- BOX CB1 (208-108) that the headlight does not switch daytime running light after starting the engine, please proceed as follows: Install the enclosed 120 Ohm resistor as indicated in the instructions Now the headlight should also switch the daytime running light
