HIGHSIDER MONTANA handlebar end mirror, E-approved. Universal handlebar end mirror, noble design, with a round head made from black anodized aluminum or chrome-plated. Suitable for 1 inch & 7/8 inch handlebars. Can be used for left & right side. Character & overview
- whether retro or modern. The HIGHSIDER mirror series are characterized by characteristic design & aerodynamic function. This is circumspection in perfection.

Dimensions Ø head: 102 mm Total

Width: 56 mm Total

Height: 180 mm Stem length: 70 mm from head to bend & 115 mm to end of clamp Weight: 208 gr. Variants 301-017
- Chrome plated 301-018
- Black 301-002
- Matte Black (Blast) Scope of delivery 1 piece handlebar end mirror Reducing rings 1 & 7/8 inch Note To close any holes for mounting the original handlebar mirrors, use the HIGHSIDER closing caps.









...

HIGHSIDER MONTANA handlebar end mirror, E-approved. Universal handlebar end mirror, noble design, with a round head made from black anodized aluminum or chrome-plated. Suitable for 1 inch & 7/8 inch handlebars. Can be used for left & right side. Character & overview
- whether retro or modern. The HIGHSIDER mirror series are characterized by characteristic design & aerodynamic function. This is circumspection in perfection.

Dimensions Ø head: 102 mm Total

Width: 56 mm Total

Height: 180 mm Stem length: 70 mm from head to bend & 115 mm to end of clamp Weight: 208 gr. Variants 301-017
- Chrome plated 301-018
- Black 301-002
- Matte Black (Blast) Scope of delivery 1 piece handlebar end mirror Reducing rings 1 & 7/8 inch Note To close any holes for mounting the original handlebar mirrors, use the HIGHSIDER closing caps.









...

HIGHSIDER MONTANA mirror, E-approved. Noble universal mirror with a round, chrome-plated or black aluminum head & adjustable stem. Thanks to the use of a second joint on the stem, there are additional adjustment options for your safety.

Includes:: extra adapter M10 x 1.25 mm with left-hand thread for Yamaha. Can be used for left & right side. Prudence with style
- whether classic or modern. The HIGHSIDER mirror series are characterized by striking design & aerodynamic function. So you keep the overview.

Dimensions Ø head: 102 mm Total

Width: 210 mm Total

Height: 120 mm Stem length: 150 mm to the joint, then another 30 mm to the threaded bolt Variants 301-015
- Chrome plated 301-016
- Black 301-001
- Matte Black (Blast) Scope of delivery 1 piece rear view mirror Adapter M10 x 1.25 mm with left-hand thread











...

HIGHSIDER MONTANA mirror, E-approved. Noble universal mirror with a round, chrome-plated or black aluminum head & adjustable stem. Thanks to the use of a second joint on the stem, there are additional adjustment options for your safety.

Includes:: extra adapter M10 x 1.25 mm with left-hand thread for Yamaha. Can be used for left & right side. Prudence with style
- whether classic or modern. The HIGHSIDER mirror series are characterized by striking design & aerodynamic function. So you keep the overview.

Dimensions Ø head: 102 mm Total

Width: 210 mm Total

Height: 120 mm Stem length: 150 mm to the joint, then another 30 mm to the threaded bolt Variants 301-015
- Chrome plated 301-016
- Black 301-001
- Matte Black (Blast) Scope of delivery 1 piece rear view mirror Adapter M10 x 1.25 mm with left-hand thread











...

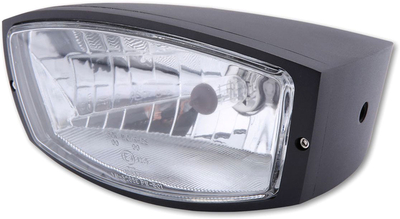

HIGHSIDER headlight OREGON, E-approved. H4 halogen main headlight including parking light & a galvanized metal housing can be ordered in black or chrome. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility. The trapezoidal headlamp impresses with its soft, curved lines & elegant high-gloss housing. See & be seen
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55W

Width: 195 mm

Height: 95 mm

Depth: 155 mm (with glass) Side mount: 3-way adjustable with M 10 x 1.5 mm mounting bolts Bottom mount: 3-way adjustable with M 10 x 1.5 mm mounting bolts. Connections H4 headlight Black cable = ground (-) Yellow cable = low beam (+) Blue cable = high beam (+) Connections parking light Black cable = ground (-) Green cable = plus (+) Variants 223-056
- Black, bottom mount 223-058
- Black, side mount Scope of delivery 1 piece main headlight









...

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 5, black, E-approved. Puristically shaped main headlight with matte black metal housing has a high beam, low beam & parking light function. The upper half illuminates the low beam & when the high beam is switched on, both halves of the headlight illuminate. The simple design is ideal for classics, roadsters & customized bikes. HIGHSIDER Highlights
- give your bike a distinctive style! The fancy design & the perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Features Illuminant: LED Glass: clear Chrome reflector with black bezel Mounting side: with M6 thread Bottom mounting point: with threaded bolt M10 x length 25 mm

Dimensions Housing diameter: 165 mm

Depth: 135 mm Distance fixing points: approx. 160 mm Connections 3-pin connector Red = low beam (+) White = High beam (+) Brown = position light (+) Black = Ground (-) Variants 223-215
- Black, side mount 223-217
- Black, bottom mount Scope of delivery 1 piece main headlight, E-approved






...

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 6 with TFL, black matt or chrome, E-approved. Puristically shaped main headlight with metal housing for lower mounting. The latest lighting technology & the extraordinary light design distinguish the PECOS TYP 6. The special feature of this LED headlight is the additional features with daytime running light & parking light ring. The daytime running light for even more visibility in road traffic is located in the centrally positioned strip. In the upper half of the headlight, the low beam lights up & when the high beam is switched on, both halves light up. Catch the eye
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Features Illuminant: LED Glass: clear Chromed reflector with TFL/DRL & parking light ring Fastening on the side: with M6 thread Bottom mounting: with threaded bolt M10 x length 25 mm

Dimensions Housing diameter: 165 mm

Depth: 135 mm Connections 3-pin connector White = low beam (+) Blue = High beam (+) Green = Ground (-) Red = TFL/DRL (+) to ignition plus Brown = position light (+) Variants 223-219- Black, side mount 223-221
- Black, bottom mount 223-222
- Chrome plated, bottom mount Scope of delivery 1 piece main headlight, E-approved Optionally orderable 208-108 HIGHSIDER DRL CONTROL- BOX CB1, Daytime running light control box for vehicles without light switch, 12V 240-044 Light switch on/off with clamp for handlebar mounting Note If it should happen with this product in connection with the HIGHSIDER DRL CONTROL- BOX CB1 (208-108) that the headlight does not switch daytime running light after starting the engine, please proceed as follows: Install the enclosed 120 Ohm resistor as indicated in the instructions Now the headlight should also switch the daytime running light






...

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 6 with TFL, black matt or chrome, E-approved. Puristically shaped main headlight with metal housing for lower mounting. The latest lighting technology & the extraordinary light design distinguish the PECOS TYP 6. The special feature of this LED headlight is the additional features with daytime running light & parking light ring. The daytime running light for even more visibility in road traffic is located in the centrally positioned strip. In the upper half of the headlight, the low beam lights up & when the high beam is switched on, both halves light up. Catch the eye
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Features Illuminant: LED Glass: clear Chromed reflector with TFL/DRL & parking light ring Fastening on the side: with M6 thread Bottom mounting: with threaded bolt M10 x length 25 mm

Dimensions Housing diameter: 165 mm De...


...

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 6 with TFL, black matt or chrome, E-approved. Puristically shaped main headlight with metal housing for lower mounting. The latest lighting technology & the extraordinary light design distinguish the PECOS TYP 6. The special feature of this LED headlight is the additional features with daytime running light & parking light ring. The daytime running light for even more visibility in road traffic is located in the centrally positioned strip. In the upper half of the headlight, the low beam lights up & when the high beam is switched on, both halves light up. Catch the eye
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Features Illuminant: LED Glass: clear Chromed reflector with TFL/DRL & parking light ring Fastening on the side: with M6 thread Bottom mounting: with threaded bolt M10 x length 25 mm

Dimensions Housing diameter: 165 mm De...


...

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 7 with parking light ring, black matt or chrome, E-approved. Puristically shaped main headlight with matt black metal housing for lower mounting. The latest lighting technology & the extraordinary light design distinguish the PECOS TYP 7. The special feature of this LED headlight with parking light ring is the dark appearance thanks to matte black housing & the inconspicuous reflector in black. In the upper area of the headlight shines the low beam & when the high beam is switched on, both areas light up. HIGHSIDER highlights
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Features Illuminant: LED Glass: clear Black reflector with parking light ring Mounting on the side: with M6 thread Bottom mounting: with threaded bolt M10 x length 25 mm

Dimensions Housing diameter: 165 mm

Depth: 135 mm Connections 3-pin connector White = low beam (+)...




...
