HIGHSIDER headlight OREGON, E-approved. H4 halogen main headlight including parking light & a galvanized metal housing can be ordered in black or chrome. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility. The trapezoidal headlamp impresses with its soft, curved lines & elegant high-gloss housing. See & be seen
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55W

Width: 195 mm

Height: 95 mm

Depth: 155 mm (with glass) Side mount: 3-way adjustable with M 10 x 1.5 mm mounting bolts Bottom mount: 3-way adjustable with M 10 x 1.5 mm mounting bolts. Connections H4 headlight Black cable = ground (-) Yellow cable = low beam (+) Blue cable = high beam (+) Connections parking light Black cable = ground (-) Green cable = plus (+) Variants 223-056
- Black, bottom mount 223-058
- Black, side mount Scope of delivery 1 piece main headlight









...

HIGHSIDER headlight OREGON, E-approved. H4 halogen main headlight including parking light & a galvanized metal housing can be ordered in black or chrome. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility. The trapezoidal headlamp impresses with its soft, curved lines & elegant high-gloss housing. See & be seen
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Bulb: H4, 12 V 60/55W

Width: 195 mm

Height: 95 mm

Depth: 155 mm (with glass) Side mount: 3-way adjustable with M 10 x 1.5 mm mounting bolts Bottom mount: 3-way adjustable with M 10 x 1.5 mm mounting bolts. Connections H4 headlight Black cable = ground (-) Yellow cable = low beam (+) Blue cable = high beam (+) Connections parking light Black cable = ground (-) Green cable = plus (+) Variants 223-056
- Black, bottom mount 223-058
- Black, side mount Scope of delivery 1 piece main headlight









...

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 5, black, E-approved. Puristically shaped main headlight with matte black metal housing has a high beam, low beam & parking light function. The upper half illuminates the low beam & when the high beam is switched on, both halves of the headlight illuminate. The simple design is ideal for classics, roadsters & customized bikes. HIGHSIDER Highlights
- give your bike a distinctive style! The fancy design & the perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Features Illuminant: LED Glass: clear Chrome reflector with black bezel Mounting side: with M6 thread Bottom mounting point: with threaded bolt M10 x length 25 mm

Dimensions Housing diameter: 165 mm

Depth: 135 mm Distance fixing points: approx. 160 mm Connections 3-pin connector Red = low beam (+) White = High beam (+) Brown = position light (+) Black = Ground (-) Variants 223-215
- Black, side mount 223-217
- Black, bottom mount Scope of delivery 1 piece main headlight, E-approved






...

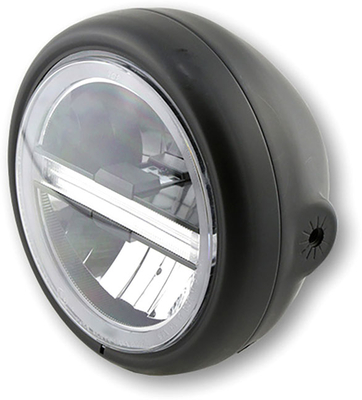

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 6 with TFL, black matt or chrome, E-approved. Puristically shaped main headlight with metal housing for lower mounting. The latest lighting technology & the extraordinary light design distinguish the PECOS TYP 6. The special feature of this LED headlight is the additional features with daytime running light & parking light ring. The daytime running light for even more visibility in road traffic is located in the centrally positioned strip. In the upper half of the headlight, the low beam lights up & when the high beam is switched on, both halves light up. Catch the eye
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Features Illuminant: LED Glass: clear Chromed reflector with TFL/DRL & parking light ring Fastening on the side: with M6 thread Bottom mounting: with threaded bolt M10 x length 25 mm

Dimensions Housing diameter: 165 mm

Depth: 135 mm Connections 3-pin connector White = low beam (+) Blue = High beam (+) Green = Ground (-) Red = TFL/DRL (+) to ignition plus Brown = position light (+) Variants 223-219- Black, side mount 223-221
- Black, bottom mount 223-222
- Chrome plated, bottom mount Scope of delivery 1 piece main headlight, E-approved Optionally orderable 208-108 HIGHSIDER DRL CONTROL- BOX CB1, Daytime running light control box for vehicles without light switch, 12V 240-044 Light switch on/off with clamp for handlebar mounting Note If it should happen with this product in connection with the HIGHSIDER DRL CONTROL- BOX CB1 (208-108) that the headlight does not switch daytime running light after starting the engine, please proceed as follows: Install the enclosed 120 Ohm resistor as indicated in the instructions Now the headlight should also switch the daytime running light






...

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 6 with TFL, black matt or chrome, E-approved. Puristically shaped main headlight with metal housing for lower mounting. The latest lighting technology & the extraordinary light design distinguish the PECOS TYP 6. The special feature of this LED headlight is the additional features with daytime running light & parking light ring. The daytime running light for even more visibility in road traffic is located in the centrally positioned strip. In the upper half of the headlight, the low beam lights up & when the high beam is switched on, both halves light up. Catch the eye
- give your bike an unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Features Illuminant: LED Glass: clear Chromed reflector with TFL/DRL & parking light ring Fastening on the side: with M6 thread Bottom mounting: with threaded bolt M10 x length 25 mm

Dimensions Housing diameter: 165 mm De...


...

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 7 with parking light ring, black matt or chrome, E-approved. Puristically shaped main headlight with matt black metal housing for lower mounting. The latest lighting technology & the extraordinary light design distinguish the PECOS TYP 7. The special feature of this LED headlight with parking light ring is the dark appearance thanks to matte black housing & the inconspicuous reflector in black. In the upper area of the headlight shines the low beam & when the high beam is switched on, both areas light up. HIGHSIDER highlights
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Features Illuminant: LED Glass: clear Black reflector with parking light ring Mounting on the side: with M6 thread Bottom mounting: with threaded bolt M10 x length 25 mm

Dimensions Housing diameter: 165 mm

Depth: 135 mm Connections 3-pin connector White = low beam (+)...




...

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 7 with parking light ring, black matt or chrome, E-approved. Puristically shaped main headlight with matt black metal housing for lower mounting. The latest lighting technology & the extraordinary light design distinguish the PECOS TYP 7. The special feature of this LED headlight with parking light ring is the dark appearance thanks to matte black housing & the inconspicuous reflector in black. In the upper area of the headlight shines the low beam & when the high beam is switched on, both areas light up. HIGHSIDER highlights
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Features Illuminant: LED Glass: clear Black reflector with parking light ring Mounting on the side: with M6 thread Bottom mounting: with threaded bolt M10 x length 25 mm

Dimensions Housing diameter: 165 mm

Depth: 135 mm Connections 3-pin connector White = low beam (+)...




...

HIGHSIDER 5 3/4 inch LED headlight PECOS TYPE 7 with parking light ring, black matt or chrome, E-approved. Puristically shaped main headlight with matt black metal housing for lower mounting. The latest lighting technology & the extraordinary light design distinguish the PECOS TYP 7. The special feature of this LED headlight with parking light ring is the dark appearance thanks to matte black housing & the inconspicuous reflector in black. In the upper area of the headlight shines the low beam & when the high beam is switched on, both areas light up. HIGHSIDER highlights
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Features Illuminant: LED Glass: clear Black reflector with parking light ring Mounting on the side: with M6 thread Bottom mounting: with threaded bolt M10 x length 25 mm

Dimensions Housing diameter: 165 mm

Depth: 135 mm Connections 3-pin connector White = low beam (+)...




...

HIGHSIDER LED taillight, brake light, turn signal PEN HEAD DOUBLE. LED tail light, brake light, turn signal in a black metal housing with tinted glass & waterproof mini-plugs. The outward tapered housing blends beautifully with the black rubber stem & is E-approved for rear installation. The best is saved for last
- HIGHSIDER s taillight & taillight/turn signal series give you the safety you need & the look you want
- whether cruiser, sport bike or scooter.

Dimensions A: 47 mm B: 62 mm C: 22 mm D: 21 mm Threaded bolt: M8 x 1.25 mm Connections Black cable = ground (-) Yellow cable= turn signal (+) Orange cable = tail light (+) Red cable = brake light (+) Scope of delivery 1 pair of tail light, brake light, turn signals, E-approved Note Installation location: rear E-approved



...

HIGHSIDER LED turn signal/parking light unit PEN HEAD DOUBLE. LED turn signal/parking light unit in a black metal housing & tinted glass, E-approved. Head in the right direction
- with the innovative turn signal series from HIGHSIDER. Show not only where you want to go, but also who you are. This is directional design at its finest.

Dimensions A: 47 mm B: approx. 62 mm C: 22 mm D: 21 mm Threaded bolt M8 x 1.25 mm Connections For both functions: Black = Ground (-) For turn signal: Yellow = turn signal (+) For parking light: White = parking light (+) Scope of delivery 1 pair of turn signal/position light front, E-approved Note Installation location: front E-approved


...
