HIGHSIDER LED taillight / brake light INTERSTATE with holder. Powerful LED tail light in a black metal housing with red glass. Without license plate light, E-approved. The best is saved for last
- HIGHSIDER s taillight & taillight/turn signal series give you the safety you need & the look you want
- whether cruiser, scooter or speedster.

Dimensions

Width: 150 mm

Height: 27.5 mm

Depth: 28 mm Hole spacing, bracket: 22 mm (center-to-center) Connections Black cable = ground (-) Yellow cable= taillight (+) Blue cable = brake light (+) Scope of delivery 1 piece LED taillight 255-906 including holder









...

HIGHSIDER Headlight IOWA H4 halogen main headlight including parking light with clear or blue glass in a chrome or black oval metal housing for bottom mount. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility, E-approved See & be seen
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Illuminant: H4, 12 V 60/55W

Width: 175 mm

Height: 102 mm

Depth: 132 mm Side mount lamp ring: side mount with M3 socket head screws, M3 x 0.5 mm, length: 15 mm, (actual thread length: 12 mm), head diameter: 5 mm. Bottom mount: M10 Connections Black cable = ground (-) Yellow cable = low beam (+) Blue cable = high beam (+) Parking light Green cable = parking light (+) Black cable = ground (-) Variants 223-060
- Chrome/blue-tinted 223-062
- Black/blue-tinted 223-063
- Chrome/ Clear 223-064
- Black/ Clear Scope of delivery 1 piece H4 headlight











...

HIGHSIDER Headlight IOWA H4 halogen main headlight including parking light with clear or blue glass in a chrome or black oval metal housing for bottom mount. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility, E-approved See & be seen
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Illuminant: H4, 12 V 60/55W

Width: 175 mm

Height: 102 mm

Depth: 132 mm Side mount lamp ring: side mount with M3 socket head screws, M3 x 0.5 mm, length: 15 mm, (actual thread length: 12 mm), head diameter: 5 mm. Bottom mount: M10 Connections Black cable = ground (-) Yellow cable = low beam (+) Blue cable = high beam (+) Parking light Green cable = parking light (+) Black cable = ground (-) Variants 223-060
- Chrome/blue-tinted 223-062
- Black/blue-tinted 223-063
- Chrome/ Clear 223-064
- Black/ Clear Scope of delivery 1 piece H4 headlight











...

HIGHSIDER Headlight IOWA H4 halogen main headlight including parking light with clear or blue glass in a chrome or black oval metal housing for bottom mount. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility, E-approved See & be seen
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Illuminant: H4, 12 V 60/55W

Width: 175 mm

Height: 102 mm

Depth: 132 mm Side mount lamp ring: side mount with M3 socket head screws, M3 x 0.5 mm, length: 15 mm, (actual thread length: 12 mm), head diameter: 5 mm. Bottom mount: M10 Connections Black cable = ground (-) Yellow cable = low beam (+) Blue cable = high beam (+) Parking light Green cable = parking light (+) Black cable = ground (-) Variants 223-060
- Chrome/blue-tinted 223-062
- Black/blue-tinted 223-063
- Chrome/ Clear 223-064
- Black/ Clear Scope of delivery 1 piece H4 headlight











...

HIGHSIDER Headlight IOWA H4 halogen main headlight including parking light with clear or blue glass in a chrome or black oval metal housing for bottom mount. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility, E-approved See & be seen
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Illuminant: H4, 12 V 60/55W

Width: 175 mm

Height: 102 mm

Depth: 132 mm Side mount lamp ring: side mount with M3 socket head screws, M3 x 0.5 mm, length: 15 mm, (actual thread length: 12 mm), head diameter: 5 mm. Bottom mount: M10 Connections Black cable = ground (-) Yellow cable = low beam (+) Blue cable = high beam (+) Parking light Green cable = parking light (+) Black cable = ground (-) Variants 223-060
- Chrome/blue-tinted 223-062
- Black/blue-tinted 223-063
- Chrome/ Clear 223-064
- Black/ Clear Scope of delivery 1 piece H4 headlight











...

HIGHSIDER handlebar end mirror in cross design with an aluminum head. Suitable for handlebars with a handlebar inner diameter of 12 to 21 mm, ie for most 7/8-inch & 1-inch aluminum or steel handlebars. Can be used for left & right side, E-approved. A question of view
- retro or modern. The HIGHSIDER mirror series are characterized by characteristic design & aerodynamic function. So you keep the overview.

Dimensions

Width: 110 mm

Height: 110 mm

Depth: 20 mm Length, arm to joint: 70 mm Length, arm to clamp: 115 mm Width, clamp: 12 mm Variants 301-112
- Black 301-113
- Chrome plated Scope of delivery 1 pc. incl. reducing rings for 1 inch & 7/8 inch Note To close any holes for mounting the original handlebar mirrors, use the HIGHSIDER closing caps: No. 160-314










...

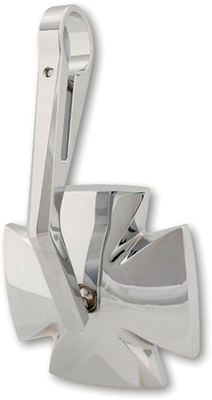

HIGHSIDER mirror IRON CROSS, mirror in cross design, including extra adapter for Harley Davidson & for Yamaha, E-approved. A question of view
- whether retro or modern. The HIGHSIDER mirror series are characterized by characteristic design & aerodynamic function. So you keep the overview.

Dimensions

Width: 110 mm

Height: 110 mm

Depth: 20 mm Handle, length: 170 mm Variants 301-110
- Black 301-111
- Chrome plated Scope of delivery 1 pair of mirrors 2x Harley-Davidson adapter 2x M10 adapter with right-hand thread 1x M10 adapter with left-hand thread










...

HIGHSIDER mirror IRON CROSS, mirror in cross design, including extra adapter for Harley Davidson & for Yamaha, E-approved. A question of view
- whether retro or modern. The HIGHSIDER mirror series are characterized by characteristic design & aerodynamic function. So you keep the overview.

Dimensions

Width: 110 mm

Height: 110 mm

Depth: 20 mm Handle, length: 170 mm Variants 301-110
- Black 301-111
- Chrome plated Scope of delivery 1 pair of mirrors 2x Harley-Davidson adapter 2x M10 adapter with right-hand thread 1x M10 adapter with left-hand thread










...

HIGHSIDER LED main headlight insert JACKSON, 5 3/4 inch. This round, chrome-plated reflector has high beam, low beam, parking light & a clear glass. The parking light function is shown in the center of the insert as a light bar (Light Guide System). The reflector emits an asymmetrical
- only approved for right-hand traffic
- luminous flux, E-approved. Sensational
- give your bike your unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

Dimensions Diameter A = 148 mm Diameter GA = 134 mm Diameter I = 128 mm T = 60 mm R = 11 mm Technical specifications Voltage: 12 V Connections with triple plug Black = ground (-) Blue = low beam (+) Red = high beam (+) Separate wires Red = parking light/parking light (+) Black = Ground (-) Scope of delivery 1 piece LED main headlight insert 226-016




...

The LED daytime running light with 4 LEDs is installed in a round, black-painted aluminum housing. The powerful LEDs significantly increase the perception of motorcyclists by other road users. See & be seen
- give your bike personality! The unusual design & perfect technology of the HIGHSIDER headlight series will definitely make you a sensational highlight!

Dimensions Diameter: 71.5 mm

Depth: 47.5 mm Technical specifications Current consumption at 12.5 volts: only 0.2 amps (approx. 2.5 watts) Luminous flux at 12 volts: 150 lumens Connections Black cable: ground (-) Red cable = positive (+), connects to switched positive (ignition). White cable = control line to parking light Scope of delivery 1 piece daytime running light 222-502 Note 1
- WITH existing light switch Prerequisite for the operation of the daytime running light (TFL) is a manually switched low beam (light switch), otherwise the function of the TFL would be canceled. According to road traffic regulations, the TFL must...





...
