HIGHSIDER Headlight IOWA H4 halogen main headlight including parking light with clear or blue glass in a chrome or black oval metal housing for bottom mount. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility, E-approved See & be seen
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Illuminant: H4, 12 V 60/55W

Width: 175 mm

Height: 102 mm

Depth: 132 mm Side mount lamp ring: side mount with M3 socket head screws, M3 x 0.5 mm, length: 15 mm, (actual thread length: 12 mm), head diameter: 5 mm. Bottom mount: M10 Connections Black cable = ground (-) Yellow cable = low beam (+) Blue cable = high beam (+) Parking light Green cable = parking light (+) Black cable = ground (-) Variants 223-060
- Chrome/blue-tinted 223-062
- Black/blue-tinted 223-063
- Chrome/ Clear 223-064
- Black/ Clear Scope of delivery 1 piece H4 headlight











...

HIGHSIDER Headlight IOWA H4 halogen main headlight including parking light with clear or blue glass in a chrome or black oval metal housing for bottom mount. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility, E-approved See & be seen
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Illuminant: H4, 12 V 60/55W

Width: 175 mm

Height: 102 mm

Depth: 132 mm Side mount lamp ring: side mount with M3 socket head screws, M3 x 0.5 mm, length: 15 mm, (actual thread length: 12 mm), head diameter: 5 mm. Bottom mount: M10 Connections Black cable = ground (-) Yellow cable = low beam (+) Blue cable = high beam (+) Parking light Green cable = parking light (+) Black cable = ground (-) Variants 223-060
- Chrome/blue-tinted 223-062
- Black/blue-tinted 223-063
- Chrome/ Clear 223-064
- Black/ Clear Scope of delivery 1 piece H4 headlight











...

HIGHSIDER handlebar end mirror in cross design with an aluminum head. Suitable for handlebars with a handlebar inner diameter of 12 to 21 mm, ie for most 7/8-inch & 1-inch aluminum or steel handlebars. Can be used for left & right side, E-approved. A question of view
- retro or modern. The HIGHSIDER mirror series are characterized by characteristic design & aerodynamic function. So you keep the overview.

Dimensions

Width: 110 mm

Height: 110 mm

Depth: 20 mm Length, arm to joint: 70 mm Length, arm to clamp: 115 mm Width, clamp: 12 mm Variants 301-112
- Black 301-113
- Chrome plated Scope of delivery 1 pc. incl. reducing rings for 1 inch & 7/8 inch Note To close any holes for mounting the original handlebar mirrors, use the HIGHSIDER closing caps: No. 160-314










...

HIGHSIDER handlebar end mirror in cross design with an aluminum head. Suitable for handlebars with a handlebar inner diameter of 12 to 21 mm, ie for most 7/8-inch & 1-inch aluminum or steel handlebars. Can be used for left & right side, E-approved. A question of view
- retro or modern. The HIGHSIDER mirror series are characterized by characteristic design & aerodynamic function. So you keep the overview.

Dimensions

Width: 110 mm

Height: 110 mm

Depth: 20 mm Length, arm to joint: 70 mm Length, arm to clamp: 115 mm Width, clamp: 12 mm Variants 301-112
- Black 301-113
- Chrome plated Scope of delivery 1 pc. incl. reducing rings for 1 inch & 7/8 inch Note To close any holes for mounting the original handlebar mirrors, use the HIGHSIDER closing caps: No. 160-314










...

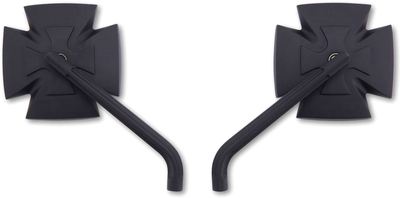

HIGHSIDER mirror IRON CROSS, mirror in cross design, including extra adapter for Harley Davidson & for Yamaha, E-approved. A question of view
- whether retro or modern. The HIGHSIDER mirror series are characterized by characteristic design & aerodynamic function. So you keep the overview.

Dimensions

Width: 110 mm

Height: 110 mm

Depth: 20 mm Handle, length: 170 mm Variants 301-110
- Black 301-111
- Chrome plated Scope of delivery 1 pair of mirrors 2x Harley-Davidson adapter 2x M10 adapter with right-hand thread 1x M10 adapter with left-hand thread










...

HIGHSIDER LED main headlight insert JACKSON, 5 3/4 inch. This round, chrome-plated reflector has high beam, low beam, parking light & a clear glass. The parking light function is shown in the center of the insert as a light bar (Light Guide System). The reflector emits an asymmetrical
- only approved for right-hand traffic
- luminous flux, E-approved. Sensational
- give your bike your unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

Dimensions Diameter A = 148 mm Diameter GA = 134 mm Diameter I = 128 mm T = 60 mm R = 11 mm Technical specifications Voltage: 12 V Connections with triple plug Black = ground (-) Blue = low beam (+) Red = high beam (+) Separate wires Red = parking light/parking light (+) Black = Ground (-) Scope of delivery 1 piece LED main headlight insert 226-016




...

The LED daytime running light with 4 LEDs is installed in a round, black-painted aluminum housing. The powerful LEDs significantly increase the perception of motorcyclists by other road users. See & be seen
- give your bike personality! The unusual design & perfect technology of the HIGHSIDER headlight series will definitely make you a sensational highlight!

Dimensions Diameter: 71.5 mm

Depth: 47.5 mm Technical specifications Current consumption at 12.5 volts: only 0.2 amps (approx. 2.5 watts) Luminous flux at 12 volts: 150 lumens Connections Black cable: ground (-) Red cable = positive (+), connects to switched positive (ignition). White cable = control line to parking light Scope of delivery 1 piece daytime running light 222-502 Note 1
- WITH existing light switch Prerequisite for the operation of the daytime running light (TFL) is a manually switched low beam (light switch), otherwise the function of the TFL would be canceled. According to road traffic regulations, the TFL must...





...

The LED daytime running light with 4 power LEDs & parking light function ensures that bikers are well perceived by other road users. Packaged in a matte black, rectangular aluminum housing, the daytime running light is manufactured for universal mounting. With this daytime running light, the light switches to dimmed parking light mode when switched to low beam, E-approved. See & be seen
- give your bike personality! The unusual design & perfect technology of the HIGHSIDER headlight series will definitely make you a sensational highlight!

Dimensions

Width: 150 mm

Height: 38 mm

Depth: 39.5 mm Technical specifications Current consumption at 12.5 volts: max. 0.4 amps on (equivalent to approx. 5 watts) Luminous flux at 12 volts: 250 lumens Connections Black cable: ground (-) Red cable = plus (+), is connected to switched on plus (ignition). White cable = is connected to the control line of the low beam. Scope of delivery 1 piece daytime running light 222-501 Note 1
- with existing lig...









...

LED fog light with a black, round aluminum housing & clear glass. A U-shaped bracket with slotted holes allows for flexible mounting. The High Power LED provides a very good light output with optimal road illumination, E-approved. See & be seen
- give your bike personality! The unusual design & perfect technology of the HIGHSIDER headlight series will definitely make you a sensational highlight!

Dimensions Diameter: 72 mm Total height with holder: approx. 78 mm (holder adjustable in height)

Depth: 60 mm Width holder: 59 mm Hole spacing from the center of the U-holder: 15 mm Technical specifications Voltage: 12 V DC Connections Red cable = positive (+) Black cable = ground (-) Scope of delivery 1 piece fog light 222-203 including holder




...

HIGHSIDER LED 3in 1 taillight / brake light / turn signal combination LITTLE BRONX with tinted glass, E-approved
- Chic & compact
...
