SHIN YO handlebar end mirror SURFACE, E-approved. Shapely & high quality universal handlebar end mirror made from aluminum, sandblasted, black satin finish. The ball head allows an individual adjustment. Mountable either with the supplied reducing sleeves directly on the steering tube or on optionally available handlebar ends with handlebar end mirror mount. The mirror can be mounted on the right & left as well as standing up or hanging down. Handlebar end mirrors give motorcycles a very special look. With hanging handlebar end mirrors, many a well-behaved bike suddenly gets a slightly aggressive touch. With an attractive price-performance ratio, you can easily customize your bike to your liking with accessories from SHIN YO.

Dimensions Height head: 91.5 mm Width head: 115 mm Total

Width: 80 mm Total

Height: 185 mm Stem length: approx. 65 mm from the head to the bend & approx. 115 mm to the end of the clamp Weight: 0, 230kg Scope of delivery 1 pc. handlebar end mirror 301-086 Reduc...





...

SHIN YO mirror SURFACE, E-approved. Shapely & high quality universal mirror made from aluminum, sandblasted, black satin finish. The adjustable stem & ball head allow individual adjustment. The mirror can be mounted on the right & left.

Dimensions Width head: 115 mm Width head: 91.5 mm Blind hole: M8 x 1.25 mm Adapter: M10 x 1.25 mm Scope of delivery 1 piece mirror 301-084

...

SHIN YO LED fairing turn signal SWIFT. The latest lighting technology in a robust plastic housing in black with clear honeycomb lens. The turn signal is attached with adhesive film & is E-approved for front & rear.

Dimensions

Width: 36 mm

Height: 18, 5 mm

Depth: 44.5 mm Scope of delivery 1 pair of fairing turn signals 203-065







...

SHIN YO flasher relay SY-02, 3-pole, 12 volts 1-100 watts. Universal flasher relay ideal for conversion from original to LED turn signals. In addition, the splash-proof & vibration-resistant relay is ideal for off-road vehicles such as quads or ATVs. Features Load independent in the range of 1-100 watts Splash-proof Shockproof Also suitable for hazard warning lights Suitable for 12 Volt vehicle electrical systems Small

Dimensions Dimensions 30 mm x 30 mm Connections L= turn signal switch B = 12V (+) E = ground (-) Scope of delivery 1 piece flasher relay 208-020

...

SHIN YO flasher relay SY-03.

Dimensions Diameter: Ø 7.0 mm Length: 14 mm Cable length: 2x 105 mm Connections Load

...

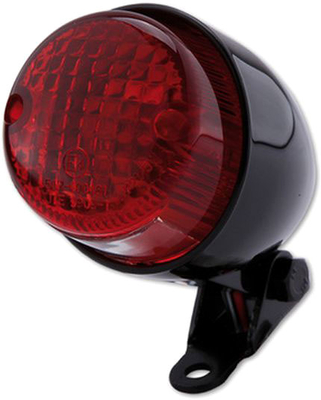

SHIN YO Mini taillight TEXAS. 12 volt 21/5 watt tail light & brake light function in housing with adjustable bracket & license plate light.

Dimensions Glass diameter 50 mm Housing diameter approx. 85 mm Scope of delivery 1 piece mini taillight Note ONLY the tail light is E-approved, the license plate light is WITHOUT test mark.

...

SHIN YO MOVE type 2 universal LED taillight / brake light combination with license plate holder & license plate light in a black metal housing & tinted glass. The tail light is removable, E-approved.

Dimensions taillight

Width: 47 mm

Height: 15 mm

Depth: 43 mm

Dimensions license plate holder

Width: 179 mm

Height: 27 mm Thickness: 2 mm Connections Black = ground (-) Yellow = taillight (+) Red = brake light (+) Scope of delivery 1 piece tail light / brake light combination 255-162













...

SHIN YO LED turn signal TOLEDO. The latest lighting technology in a robust plastic housing in black with tinted glass, E-approved.

Dimensions

Width: 50 mm Total

Width: approx. 62.5 mm

Height: 22 mm

Depth: 27 mm Threaded bolt: M8 Connections Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of LED turn signal 203-092









...

SHIN YO Halogen Turn Signal TOLEDO Triangular turn signal with robust plastic housing in black & yellow glass, E-approved.



...

SHIN YO 12 V universal TRI-LED parking light. A small parking light with three bright LEDs. With holder, screws & self-adhesive 3M foil for mounting, E-approved.

Dimensions Length: 40 mm

Height: 10 mm

Depth: 17 mm Scope of delivery 1 piece parking light 223-323 Mounting hardware





...
