SHIN YO LED turn signal Rock. The latest lighting technology in a robust plastic housing, E-approved.

Dimensions

...

SHIN YO LED running light turn signal RUN. The modern turn signal with built-in running light system, lightweight plastic housing & tinted glass has the latest lighting technology. When flashing, the individual LEDs light up one after another from the inside to the outside, creating a wiping effect like current car models. The trendy running light is a real eye-catcher with which your vehicle stands out in traffic & thus increases road safety. Even with the tinted glass, the turn signal is well perceived by the running light in road traffic. A rubber mounted stem reduces vibration & ensures longer life of the bulb. The turn signal is E-approved for front & rear.

Dimensions

Width: 70 mm

Height: 20 mm

Depth: 23 mm Width (with rubber stem 12 mm): 82 mm Threaded bolt: M 8 Connections Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of running light turn signals 203-027







...

SHIN YO 7 inch headlight Santa Fe, E-approved. The popular main headlight with its classic look in hemisphere shape makes the pig headlight the perfect part for all conversion projects. The headlight is also robust & easy to install. Technical data Bulb H4 12V 60/55W With parking light Metal housing Clear glass (prismatic reflector) Side mount

Dimensions Insert diameter: 178 mm Housing diameter: 205 mm

Depth: 150 mm Depth from thread: 100 mm Thread: M6 Variants 223-191
- Matte black 223-192
- Black Scope of delivery 1 piece headlight Bulb





...

SHIN YO LED 3in 1 tail light, brake light, turn signal SCURO. The latest lighting technology in black metal housing & heavily tinted glass. Very bright LED turn signal with integrated tail light & COB technology (Chip On Board). Due to the new LED chip embedding for high-power LEDs, a very high luminance is achieved with currently the best possible efficiency & service life. In addition, higher light values can be achieved than with conventional LEDs. An optical highlight on every motorcycle, E-approved.

Dimensions Approx. 43 x 58 x 20 mm M8 x 1.25 threaded bolt Connections Yellow cable = tail light (+) Red cable = brake light (+) Blue cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of tail light, brake light, turn signals

...

SHIN YO LED turn signal SCURO, the latest lighting technology in black metal housing & heavily tinted glass. Very bright LED turn signal with COB technology (Chip On Board). With COB technology (Chip On Board). Due to the new LED chip embedding for high-power LEDs, a very high luminance is achieved with currently the best possible efficiency & service life. In addition, higher light values can be achieved than with conventional LEDs. A visual highlight on any motorcycle, E-approved.

Dimensions Approx. 43 x 58 x 20 mm Threaded bolt: M8 x 1, 25 mm Connections Yellow cable = turn signal (+) black cable = ground (-) Scope of delivery 1 pair of turn signal 204-029

...

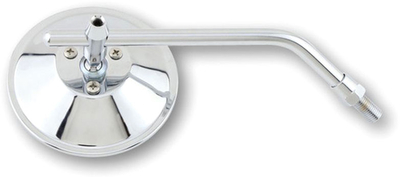

SHIN YO handlebar mirror SEVENTY, E-approved. Classic round mirror with mirror head adjustable in height. The thread size is M10 x 1.25 mm. The delivery

Includes:: an extra adapter for left-hand thread. The mirror can be used left & right.

Dimensions

Width: 101 mm Length: 101 mm Total

Width: approx. 120 mm Total

Height: approx. 160 mm Handle length: approx. 145 mm up to the bend & then from the bend 45 mm Weight: 276 gr. Variants 301-104
- Black 301-105
- Chrome plated Scope of delivery 1 piece handlebar mirror











...

SHIN YO SHORTY FIN 3in 1 LED taillight, brake light, turn signal, E-approved for rear. A modern designed tail light / turn signal with the latest lighting technology in a sturdy plastic housing in black. With rubber stem & tinted glass.

Dimensions Approx. 50 x 62 x 24 mm Threaded bolt: M8 x 1.25 mm Connections Yellow cable = rear light (+) Black cable = ground (-) Red cable = brake light (+) Blue cable = turn signal (+) Scope of delivery 1 pair 3in 1 LED taillight, brake light, turn signal 254-075

...

SHIN YO SHORTY FIN LED turn signal / position light, for front E-approved. A modern designed turn signal with integrated position light. The latest light technology in a robust plastic housing in black, with rubber stem & tinted glass.

Dimensions Approx. 50 x 62 x 24 mm Threaded bolt: M8 x 1.25 mm Connections Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of turn signal / position light 204-076

...

SHIN YO SHORTY 3in 1 LED taillight, brake light, turn signal, E-approved for rear. Very unobtrusive & tinted body made from plastic. A bright LED tail light / turn signal unit.

Dimensions

Width: 40 mm

Height: 8 mm

Depth: 13 mm Connections Yellow cable = tail light (+) Red cable = brake light (+) Blue cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair tail light, brake light, turn signal 254-071







...

SHIN YO SHORTY LED turn signal / position light, E-approved for front. Very inconspicuous & tinted body made from plastic. A bright LED turn signal with integrated position light.

Dimensions

Width: 40 mm

Height: 8 mm

Depth: 13 mm Connections Yellow cable = turn signal (+) Black cable = ground (-) White cable = position light (+) Scope of delivery 1 pair of turn signal / position light 204-072







...
