SHIN YO LED running light turn signal RUN. The modern turn signal with built-in running light system, lightweight plastic housing & tinted glass has the latest lighting technology. When flashing, the individual LEDs light up one after another from the inside to the outside, creating a wiping effect like current car models. The trendy running light is a real eye-catcher with which your vehicle stands out in traffic & thus increases road safety. Even with the tinted glass, the turn signal is well perceived by the running light in road traffic. A rubber mounted stem reduces vibration & ensures longer life of the bulb. The turn signal is E-approved for front & rear.

Dimensions

Width: 70 mm

Height: 20 mm

Depth: 23 mm Width (with rubber stem 12 mm): 82 mm Threaded bolt: M 8 Connections Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of running light turn signals 203-027







...

SHIN YO 7 inch headlight Santa Fe, E-approved. The popular main headlight with its classic look in hemisphere shape makes the pig headlight the perfect part for all conversion projects. The headlight is also robust & easy to install. Technical data Bulb H4 12V 60/55W With parking light Metal housing Clear glass (prismatic reflector) Side mount

Dimensions Insert diameter: 178 mm Housing diameter: 205 mm

Depth: 150 mm Depth from thread: 100 mm Thread: M6 Variants 223-191
- Matte black 223-192
- Black Scope of delivery 1 piece headlight Bulb





...

SHIN YO LED 3in 1 tail light, brake light, turn signal SCURO. The latest lighting technology in black metal housing & heavily tinted glass. Very bright LED turn signal with integrated tail light & COB technology (Chip On Board). Due to the new LED chip embedding for high-power LEDs, a very high luminance is achieved with currently the best possible efficiency & service life. In addition, higher light values can be achieved than with conventional LEDs. An optical highlight on every motorcycle, E-approved.

Dimensions Approx. 43 x 58 x 20 mm M8 x 1.25 threaded bolt Connections Yellow cable = tail light (+) Red cable = brake light (+) Blue cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of tail light, brake light, turn signals

...

SHIN YO LED turn signal SCURO, the latest lighting technology in black metal housing & heavily tinted glass. Very bright LED turn signal with COB technology (Chip On Board). With COB technology (Chip On Board). Due to the new LED chip embedding for high-power LEDs, a very high luminance is achieved with currently the best possible efficiency & service life. In addition, higher light values can be achieved than with conventional LEDs. A visual highlight on any motorcycle, E-approved.

Dimensions Approx. 43 x 58 x 20 mm Threaded bolt: M8 x 1, 25 mm Connections Yellow cable = turn signal (+) black cable = ground (-) Scope of delivery 1 pair of turn signal 204-029

...

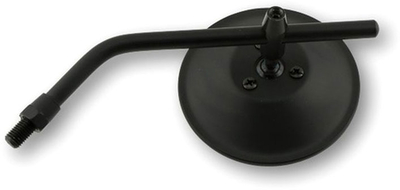

SHIN YO handlebar mirror SEVENTY, E-approved. Classic round mirror with mirror head adjustable in height. The thread size is M10 x 1.25 mm. The delivery

Includes:: an extra adapter for left-hand thread. The mirror can be used left & right.

Dimensions

Width: 101 mm Length: 101 mm Total

Width: approx. 120 mm Total

Height: approx. 160 mm Handle length: approx. 145 mm up to the bend & then from the bend 45 mm Weight: 276 gr. Variants 301-104
- Black 301-105
- Chrome plated Scope of delivery 1 piece handlebar mirror











...

SHIN YO SHORTY FIN 3in 1 LED taillight, brake light, turn signal, E-approved for rear. A modern designed tail light / turn signal with the latest lighting technology in a sturdy plastic housing in black. With rubber stem & tinted glass.

Dimensions Approx. 50 x 62 x 24 mm Threaded bolt: M8 x 1.25 mm Connections Yellow cable = rear light (+) Black cable = ground (-) Red cable = brake light (+) Blue cable = turn signal (+) Scope of delivery 1 pair 3in 1 LED taillight, brake light, turn signal 254-075

...

SHIN YO SHORTY FIN LED turn signal / position light, for front E-approved. A modern designed turn signal with integrated position light. The latest light technology in a robust plastic housing in black, with rubber stem & tinted glass.

Dimensions Approx. 50 x 62 x 24 mm Threaded bolt: M8 x 1.25 mm Connections Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of turn signal / position light 204-076

...

SHIN YO SHORTY 3in 1 LED taillight, brake light, turn signal, E-approved for rear. Very unobtrusive & tinted body made from plastic. A bright LED tail light / turn signal unit.

Dimensions

Width: 40 mm

Height: 8 mm

Depth: 13 mm Connections Yellow cable = tail light (+) Red cable = brake light (+) Blue cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair tail light, brake light, turn signal 254-071







...

SHIN YO SHORTY LED turn signal / position light, E-approved for front. Very inconspicuous & tinted body made from plastic. A bright LED turn signal with integrated position light.

Dimensions

Width: 40 mm

Height: 8 mm

Depth: 13 mm Connections Yellow cable = turn signal (+) Black cable = ground (-) White cable = position light (+) Scope of delivery 1 pair of turn signal / position light 204-072







...

SHIN YO LED sequence turn signal Sora, black, E-approved. The modern turn signal with built-in running light system, lightweight plastic housing has the latest lighting technology. When flashing, the individual LEDs light up one after the other from the inside to the outside & a wiping effect is created, a kind of treadmill. The trendy running light is a real eye-catcher & is very eye-catching due to the precise coordination of the individual LED s. The turn signal is well perceived by the running light in road traffic. The turn signal is suitable for front & rear.

Dimensions Width A: 70 mm Width B: 85 mm

Height: 23 mm

Depth: 20 mm Threaded bolt: M8 Rubber stem: 15 mm Weight: 34 gr. Connections Power input: 12 V Red cable: turn signal (+) Black cable: ground (-) Variants 203-030
- Black tinted 203-031
- Black mirrored Scope of delivery 1 pair of sequence indicators







...
