SHIN YO MODUL 1 LED taillight / brake light combinationwith 4 SMDs, E-approved. Very inconspicuous & red body made from plastic with SMD LED technology. This durable & powerful LED technology with specially adapted lens is compared to normal LEDs brighter with the same power consumption & allows an extremely small & flat design. You will be surprised how much power & brightness comes out of small SMD LEDs. The taillight is tested for horizontal mounting & is suitable for laminating or gluing in.

Dimensions

Width: 21.5 mm

Height: 8, 5 mm

Depth: 11, 5 mm Connections Yellow = driving light (+) Red = brake light (+) Black = ground (-) Variants 255-147
- Tinted 255-148
- Red Scope of delivery 1 piece tail light / brake light









...

SHIN YO MODUL 1 LED taillight / brake light combinationwith 4 SMDs, E-approved. Very inconspicuous & red body made from plastic with SMD LED technology. This durable & powerful LED technology with specially adapted lens is compared to normal LEDs brighter with the same power consumption & allows an extremely small & flat design. You will be surprised how much power & brightness comes out of small SMD LEDs. The taillight is tested for horizontal mounting & is suitable for laminating or gluing in.

Dimensions

Width: 21.5 mm

Height: 8, 5 mm

Depth: 11, 5 mm Connections Yellow = driving light (+) Red = brake light (+) Black = ground (-) Variants 255-147
- Tinted 255-148
- Red Scope of delivery 1 piece tail light / brake light









...

SHIN YO MODUL 1 LED turn signal with 5 SMDs, E-approved for front & rear. Very inconspicuous & tinted body made from plastic with SMD LED technology. This durable & powerful LED technology with specially adapted lens is brighter compared to normal LEDs with the same power consumption & allows an extremely small & flat design. You will be surprised how much power & brightness comes out of small SMD LEDs. The flasher is tested for horizontal mounting & is suitable for laminating or gluing in.

Dimensions

Width: 21.5 mm

Height: 8, 5 mm

Depth: 11, 5 mm Connections Yellow = Indicator (+) Black = ground (-) Scope of delivery 1 pair of turn signal 204-147







...

SHIN YO MODULE SIXTEEN LED installation tail light for almost invisible installation on motorcycles, quads or scooters. The SHIN YO MODUL SIXTEEN taillight can be installed in many positions on the vehicle & is particularly popular for conversions where taillights should not be visible or simply have no space. Noble look with tinted or red glass & thanks to four illuminated SMD LEDs unmissable. For gluing or laminating, E-approved for rear.

Dimensions Diameter: 16 mm

Depth: 8.6 mm Connections Yellow = taillight (+) Red = brake light (+) Black = Ground (-) Scope of delivery 1 piece tail light 255-371



...

SHIN YO MODUL 2 LED turn signal with 3 SMDs, E-approved ONLY for rear. Very inconspicuous & tinted body made from plastic with SMD LED technology. This durable & powerful LED technology with specially adapted lens is brighter than normal LEDs with the same power consumption & allows an extremely small & flat design. You will be surprised how much power & brightness comes out of small SMD LEDs. The flasher is tested for horizontal installation & is suitable for laminating or gluing in.

Dimensions

Width: 15, 5 mm

Height: 8, 5 mm

Depth: 11 mm Connections Yellow = Indicator (+) Black = Ground (-) Scope of delivery 1 pair of turn signals 204-148







...

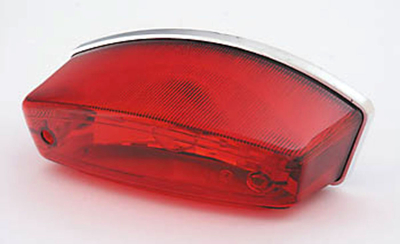

SHIN YO LED taillight Monster with brake light function. This design gives your motorcycle the ultimate Ducati Monster look. With license plate light, E-approved.

Dimensions Front: 50 x 145 mm Rear plate: 65 x 165 mm Screw spacing: 110 mm Installation

Depth: approx. 85 mm Connections Black = Ground Green = driving light Red = brake light Variants 255-825
- Black Clear 255-826
- Black Red 255-827
- Black Tinted Scope of delivery 1 piece tail light






...

SHIN YO LED taillight Monster with brake light function. This design gives your motorcycle the ultimate Ducati Monster look. With license plate light, E-approved.

Dimensions Front: 50 x 145 mm Rear plate: 65 x 165 mm Screw spacing: 110 mm Installation

Depth: approx. 85 mm Connections Black = Ground Green = driving light Red = brake light Variants 255-825
- Black Clear 255-826
- Black Red 255-827
- Black Tinted Scope of delivery 1 piece tail light






...

SHIN YO LED taillight Monster with brake light function. This design gives your motorcycle the ultimate Ducati Monster look. With license plate light, E-approved.

Dimensions Front: 50 x 145 mm Rear plate: 65 x 165 mm Screw spacing: 110 mm Installation

Depth: approx. 85 mm Connections Black = Ground Green = driving light Red = brake light Variants 255-825
- Black Clear 255-826
- Black Red 255-827
- Black Tinted Scope of delivery 1 piece tail light






...

SHIN YO Led taillight, brake light, turn signal Morella DUE. The latest lighting technology with powerful high power led & a tuned lens. Robust metal housing, E-approved.

Dimensions Approx. 55 x 73 x 22 mm Variants 254-350
- Black, Tinted 254-351
- Chrome, Clear Scope of delivery 1 pair of tail light, brake light, turn signals



...

SHIN YO Led taillight, brake light, turn signal Morella DUE. The latest lighting technology with powerful high power led & a tuned lens. Robust metal housing, E-approved.

Dimensions Approx. 55 x 73 x 22 mm Variants 254-350
- Black, Tinted 254-351
- Chrome, Clear Scope of delivery 1 pair of tail light, brake light, turn signals



...
