SHIN YO MODUL 1 PRO SMD built-in turn signal, for front & rear E-approved. The model SHIN YO MODUL 1 PRO may be installed vertically & horizontally. With tinted glass for laminating or gluing in.

Dimensions

Width: 21.5 mm

Height: 8, 5 mm

Depth: 10.5 mm Cable length: 350 mm Connectors Power input: 12.5V Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of built-in turn signals 204-145

...

Available

SHIN YO MODUL 1 PRO LED turn signal / position light, E-approved for front. The model SHIN YO MODUL 1 PRO can be installed vertically or horizontally. Very inconspicuous & tinted body made from plastic with SMD LED technology. This durable & powerful LED technology with specially adapted lens, is compared to normal LEDs brighter with the same power consumption & allows an extremely small & flat design. You will be surprised how much power & brightness comes out of small SMD LEDs.

Dimensions

Width: 21.5 mm

Height: 8, 5 mm

Depth: 10.5 mm Connections Yellow = turn signal (+) White = position light (+) Black = Ground (-) Scope of delivery 1 pair of turn signal / position light 204-149

...

Available

SHIN YO MODUL 1 PRO 3in 1 SMD tail light, brake light, turn signal, E-approved for rear. The MODUL 1 PRO model can be installed vertically or horizontally. To be laminated or glued in place.

Dimensions

Width: 21.5 mm

Height: 8, 5 mm

Depth: 10, 5 mm Connections Yellow cable = tail light (+) Red cable = brake light (+) Brown cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair tail light, brake light, turn signal 254-145

...

Available

SHIN YO MODUL 1 LED taillight / brake light combinationwith 4 SMDs, E-approved. Very inconspicuous & red body made from plastic with SMD LED technology. This durable & powerful LED technology with specially adapted lens is compared to normal LEDs brighter with the same power consumption & allows an extremely small & flat design. You will be surprised how much power & brightness comes out of small SMD LEDs. The taillight is tested for horizontal mounting & is suitable for laminating or gluing in.

Dimensions

Width: 21.5 mm

Height: 8, 5 mm

Depth: 11, 5 mm Connections Yellow = driving light (+) Red = brake light (+) Black = ground (-) Variants 255-147
- Tinted 255-148
- Red Scope of delivery 1 piece tail light / brake light

...

Available

SHIN YO MODULE SIXTEEN LED installation tail light for almost invisible installation on motorcycles, quads or scooters. The SHIN YO MODUL SIXTEEN taillight can be installed in many positions on the vehicle & is particularly popular for conversions where taillights should not be visible or simply have no space. Noble look with tinted or red glass & thanks to four illuminated SMD LEDs unmissable. For gluing or laminating, E-approved for rear.

Dimensions Diameter: 16 mm

Depth: 8.6 mm Connections Yellow = taillight (+) Red = brake light (+) Black = Ground (-) Scope of delivery 1 piece tail light 255-371

...

Available

SHIN YO MODUL 2 LED turn signal with 3 SMDs, E-approved ONLY for rear. Very inconspicuous & tinted body made from plastic with SMD LED technology. This durable & powerful LED technology with specially adapted lens is brighter than normal LEDs with the same power consumption & allows an extremely small & flat design. You will be surprised how much power & brightness comes out of small SMD LEDs. The flasher is tested for horizontal installation & is suitable for laminating or gluing in.

Dimensions

Width: 15, 5 mm

Height: 8, 5 mm

Depth: 11 mm Connections Yellow = Indicator (+) Black = Ground (-) Scope of delivery 1 pair of turn signals 204-148

...

Available

SHIN YO universal tail light with brake light function & license plate light, incl. prism reflector, E-approved.

Dimensions

...

Available

SHIN YO LED taillight Monster with brake light function. This design gives your motorcycle the ultimate Ducati Monster look. With license plate light, E-approved.

Dimensions Front: 50 x 145 mm Rear plate: 65 x 165 mm Screw spacing: 110 mm Installation

Depth: approx. 85 mm Connections Black = Ground Green = driving light Red = brake light Variants 255-825
- Black Clear 255-826
- Black Red 255-827
- Black Tinted Scope of delivery 1 piece tail light

...

Available

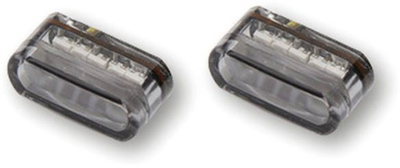

Shin Yo Modul-1, LED Turn Signals

SHIN YO MODUL 1 LED turn signal with 5 SMDs, E-approved for front and rear. Very inconspicuous and tinted body made of plastic with SMD LED technology. This durable and powerful LED technology with specially adapted lens is brighter compared to normal LEDs with the same power consumption and allows an extremely small and flat design. You will be surprised how much power and brightness comes out of small SMD LEDs. The flasher is tested for horizontal mounting and is suitable for laminating or gluing in. Dimensions Width: 21.5 mm Height: 8, 5 mm Depth: 11, 5 mm Connections Yellow = Indicator (+) Black = ground (-) Scope of delivery 1 pair of turn signal 204-147

Availability: In Stock
Supplier: Motoin SE
SKU: se-11084165-001

Description Reviews / Comments Add New

Product Description

SHIN YO MODUL 1 LED turn signal with 5 SMDs, E-approved for front & rear. Very inconspicuous & tinted body made from plastic with SMD LED technology. This durable & powerful LED technology with specially adapted lens is brighter compared to normal LEDs with the same power consumption & allows an extremely small & flat design. You will be surprised how much power & brightness comes out of small SMD LEDs. The flasher is tested for horizontal mounting & is suitable for laminating or gluing in.

Dimensions

Width: 21.5 mm

Height: 8, 5 mm

Depth: 11, 5 mm Connections Yellow = Indicator (+) Black = ground (-) Scope of delivery 1 pair of turn signal 204-147
