SHIN YO 4 1/2 inch driving lamp, E-approved. The popular driving lamp with a classic slim shape makes the headlight the perfect part for all conversion projects. The headlight is also robust & easy to install. Technical data Flat metal housing H3 insert 12V/55W Mounting point: bottom H3 bulb included

Dimensions Diameter insert: 115 mm Diameter: 126 mm

Depth: 73 mm Variants 222-049
- Chrome, clear glass 222-051
- Black, clear glass Scope of delivery 1 piece driving lamp, bulb included





...

SHIN YO 4 1/2 inch driving lamp, E-approved. The popular driving lamp with a classic slim shape makes the headlight the perfect part for all conversion projects. The headlight is also robust & easy to install. Technical data Flat metal housing H3 insert 12V/55W Mounting point: bottom H3 bulb included

Dimensions Diameter insert: 115 mm Diameter: 126 mm

Depth: 73 mm Variants 222-049
- Chrome, clear glass 222-051
- Black, clear glass Scope of delivery 1 piece driving lamp, bulb included





...

SHIN YO driving lamp with LED parking light ring. A round headlight in metal housing with clear glass & adjustable bracket, E-approved.

Dimensions Glass diameter: 102 mm Bulb: H3 bulb 12V 55W, PK 22S Connections Parking light ring Yellow cable = plus (+) Black cable = ground (-) High beam White cable = plus (+) Black cable = ground (-) Scope of delivery 1 piece driving lamp 222-215 with holder

...

SHIN YO fog light, in chrome-plated aluminum housing with holder, E-approved.

Dimensions

Width:



...

SHIN YO fog light, in chrome-plated aluminum housing with holder, E-approved.

Dimensions

Width:



...

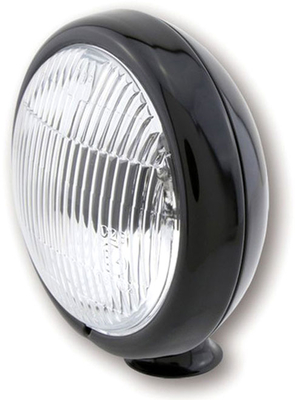

SHIN YO 4 1/2 inch fog light, E-approved. The popular fog light with a classic slim shape makes the headlight the perfect part for all conversion projects. The headlight is also robust & easy to install. Technical data Flat metal housing H3 insert 12V/55W Mounting point: bottom H3 bulb included

Dimensions Diameter insert: 115 mm Diameter: 126 mm

Depth: 73 mm Variants 222-050
- Chrome plated 222-053
- Black Scope of delivery 1 piece fog light





...

SHIN YO 5 3/4 inch main headlight with parking light for side mount. H4 main headlight in a matte black metal housing with adjustable inner ring & ribbed glass. The headlight has an asymmetrical reflector
- approved for right-hand traffic only
- & parking light, E-approved.

Dimensions Housing diameter: 165 mm Total depth including curved glass: 145 mm Mounting: side mount M8 Housing

Depth: approx. 75 mm (center of side mounting holes to rear). Illuminant: H4, 12V 60/55 W Connections Black cable = ground parking light (-) Brown cable = parking light (+) White cable = low beam (+) Blue cable = high beam (+) Green cable = ground (-) Variants 223-014
- Black 223-015
- Chrome plated Scope of delivery 1 piece headlight including bulb Notes Asymmetrical reflectors are only approved for right-hand traffic.







...

SHIN YO 5 3/4 inch main headlight with parking light for side mount. H4 main headlight in a matte black metal housing with adjustable inner ring & ribbed glass. The headlight has an asymmetrical reflector
- approved for right-hand traffic only
- & parking light, E-approved.

Dimensions Housing diameter: 165 mm Total depth including curved glass: 145 mm Mounting: side mount M8 Housing

Depth: approx. 75 mm (center of side mounting holes to rear). Illuminant: H4, 12V 60/55 W Connections Black cable = ground parking light (-) Brown cable = parking light (+) White cable = low beam (+) Blue cable = high beam (+) Green cable = ground (-) Variants 223-014
- Black 223-015
- Chrome plated Scope of delivery 1 piece headlight including bulb Notes Asymmetrical reflectors are only approved for right-hand traffic.







...

SHIN YO 6 1/2 inch main headlight. Asymmetrical headlight with metal housing & M8 side mount holes or bottom mount. Clear lens plastic lens. H4 insert with parking light, E-approved.

Dimensions Housing diameter: 190 mm

Depth: 157 mm Diameter between the side mounting holes: 170 mm Variants 223-052
- Matt-Black, side mount 223-078
- Black, side mount 223-079
- Black/chrome, side mount 223-053
- Black, bottom mount 223-054
- Chrome, bottom mount Scope of delivery 1 piece main headlight Note Without H4 bulb Asymmetrical reflector, only approved for right-hand traffic








...

SHIN YO 6 1/2 inch main headlight. Asymmetrical headlight with metal housing & M8 side mount holes or bottom mount. Clear lens plastic lens. H4 insert with parking light, E-approved.

Dimensions Housing diameter: 190 mm

Depth: 157 mm Diameter between the side mounting holes: 170 mm Variants 223-052
- Matt-Black, side mount 223-078
- Black, side mount 223-079
- Black/chrome, side mount 223-053
- Black, bottom mount 223-054
- Chrome, bottom mount Scope of delivery 1 piece main headlight Note Without H4 bulb Asymmetrical reflector, only approved for right-hand traffic








...
