SHIN YO LED sequence turn signal FORK. Right on trend: running light turn signals are becoming more & more popular. On/off was yesterday, with this cool sequence effect, the LEDs light up one after the other from the inside out, creating a visual wipe effect. Look forward to this elegant direction blinker with dark turn signal glass, whose form & function blend together wonderfully. An absolute eye-catcher on the motorcycle! The FORK can be used as a front & rear turn signal & is E-approved.

Dimensions

Width: 64 mm Total

Width: 75 mm

Height: 27.5 mm

Depth: 21, 5 mm Rubber stem: 11 mm Threaded bolt: M10 Weight: 35 gr. Connections Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of running light turn signals 204-042 Note LED turn signals work with less wattage than standard turn signals. Therefore it may be necessary to replace the original relay with a load independent relay.









...

SHIN YO LED turn signal GILL. The latest lighting technology in a robust plastic housing in black, modern design & tinted glass, E-approved.

Dimensions 60 x 24, 5 x 15, 5 mm Threaded bolt: M10 Connections Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of turn signal 203-048

...

SHIN YO 4 1/2 inch driving lamp, E-approved. The popular driving lamp with a classic slim shape makes the headlight the perfect part for all conversion projects. The headlight is also robust & easy to install. Technical data Flat metal housing H3 insert 12V/55W Mounting point: bottom H3 bulb included

Dimensions Diameter insert: 115 mm Diameter: 126 mm

Depth: 73 mm Variants 222-044
- Chrome plated 222-045
- Black Scope of delivery 1 piece driving lamp, bulb included





...

SHIN YO 4 1/2 inch driving lamp, E-approved. The popular driving lamp with a classic slim shape makes the headlight the perfect part for all conversion projects. The headlight is also robust & easy to install. Technical data Flat metal housing H3 insert 12V/55W Mounting point: bottom H3 bulb included

Dimensions Diameter insert: 115 mm Diameter: 126 mm

Depth: 73 mm Variants 222-044
- Chrome plated 222-045
- Black Scope of delivery 1 piece driving lamp, bulb included





...

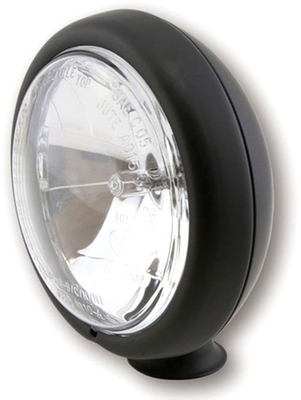

SHIN YO 4 1/2 inch driving lamp, E-approved. The popular driving lamp with a classic slim shape makes the headlight the perfect part for all conversion projects. The headlight is also robust & easy to install. Technical data Flat metal housing H3 insert 12V/55W Mounting point: bottom H3 bulb included

Dimensions Diameter insert: 115 mm Diameter: 126 mm

Depth: 73 mm Variants 222-049
- Chrome, clear glass 222-051
- Black, clear glass Scope of delivery 1 piece driving lamp, bulb included





...

SHIN YO driving lamp with LED parking light ring. A round headlight in metal housing with clear glass & adjustable bracket, E-approved.

Dimensions Glass diameter: 102 mm Bulb: H3 bulb 12V 55W, PK 22S Connections Parking light ring Yellow cable = plus (+) Black cable = ground (-) High beam White cable = plus (+) Black cable = ground (-) Scope of delivery 1 piece driving lamp 222-215 with holder

...

SHIN YO fog light, in chrome-plated aluminum housing with holder, E-approved.

Dimensions

Width:



...

SHIN YO fog light, in chrome-plated aluminum housing with holder, E-approved.

Dimensions

Width:



...

SHIN YO 4 1/2 inch fog light, E-approved. The popular fog light with a classic slim shape makes the headlight the perfect part for all conversion projects. The headlight is also robust & easy to install. Technical data Flat metal housing H3 insert 12V/55W Mounting point: bottom H3 bulb included

Dimensions Diameter insert: 115 mm Diameter: 126 mm

Depth: 73 mm Variants 222-050
- Chrome plated 222-053
- Black Scope of delivery 1 piece fog light





...

SHIN YO 4 1/2 inch fog light, E-approved. The popular fog light with a classic slim shape makes the headlight the perfect part for all conversion projects. The headlight is also robust & easy to install. Technical data Flat metal housing H3 insert 12V/55W Mounting point: bottom H3 bulb included

Dimensions Diameter insert: 115 mm Diameter: 126 mm

Depth: 73 mm Variants 222-050
- Chrome plated 222-053
- Black Scope of delivery 1 piece fog light





...
