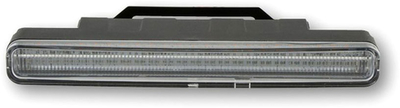

Shin Yo 222-503, Daytime Running Light

Product Description

SHIN YO LED daytime running light with parking light function. The LED daytime running light with several dozen power LEDs & parking light function ensures that bikers are well perceived by other road users. Packaged in a matte black rectangular plastic housing, the daytime running light is manufactured for universal mounting. With this daytime running light, the light switches to dimmed parking light mode (position light) when switching to low beam, E-approved. See & be seen
- give your bike personality!

Dimensions

Width: 150 mm

Height: 17 mm

Depth: 37.5 mm

Dimensions U-Holder Width holder: 100 mm Height holder: 15.5 mm Holder

Depth: 27.5 mm Thickness: 1, 5 mm Connections Black = ground (-) Red = connect to switched positive (ignition 15+)t White = connect control line to parking light (+) Scope of delivery 1 piece daytime running light 222-503 Notes Prerequisite is a manually switched low beam (light switch), otherwise the function of the TFL would be disabled. According to the regulations, the TFL must be connected so that it goes out when the main headlight is switched on. (Exception: headlight flasher). The rear tail light must always remain switched on, i.e. set to ignition plus. If there are other parking lights on the vehicle, these must be disconnected, as there may be a maximum of 2 parking lights on the vehicle. Optionally available HIGHSIDER DRL CONTROL- BOX CB1, daytime running light control box for vehicles without light switch, 12V No. 208-108 Light switch on/off with clamp for handlebar mounting e.g. No. 240-044
