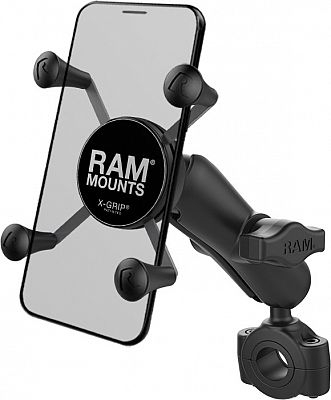

The RAM-B-174-UN7U consists of hardware for mounting to either brake/clutch reservoirs & rails that are 0.5" to 1.25" in diameter, double socket arm & universal X-Grip® cell phone cradle. Designed into the mount is a 1" / 25 mm diameter patented rubber ball & socket system with adjustment points at both ends of the socket arm, this with a twist of the arm knob, means that you can move the X-Grip® mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard & metric mounting bolts. The included X-Grip® cradle has a clean & clever four leg design that sports great holding power without hiding your phone behind foam pads & plastic. The spring-loaded X-Grip® cradle expands & contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today s vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip®

Includes:: a device tether recommended for outdoor application...

...

Designed to fit into the cylindrical bore wall of fork stems that measure 12 mm to 38 mm (.5” to 1.49”) in diameter, the RAM-B-176-A-UN7U consists of a fork stem base, short length double socket arm, & the popular spring-loaded RAM® X-Grip® phone holder. The RAM® X-Grip® features an X design that expands & contracts to provide a perfect fit for your device – even if it s in a case. made from high-strength composite & stainless steel, this version of the RAM® X-Grip® fits phones ranging from 1.87" to 3.25" in width & keeps your device completely functional & accessible. RAM® ball & socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock & vibration damping. For outdoor applications, the RAM® X-Grip®

Includes:: a device tether that is recommended for added security & peace of mind. Hardware included 1 optional tether 1 glue tube for rubber caps 1 expansion plug for 12 mm
- 38...


...

The RAM® X-Grip® Phone Mount with Low-Profile RAM® Tough-Claw™ (RAM-HOL-UN7-400-2U) consists of the small RAM® Tough-Claw™ base & universal large RAM® X-Grip® phone holder, connected by the RAM® Pin-Lock™ adapter. The large RAM® X-Grip® features an ‘X’ design that expands & contracts to secure your phone, &

Includes:: a device tether recommended for outdoor applications. With the RAM® Tough-Claw™ base connected, easily attach the RAM® X-Grip® on round, square, & odd-shaped rails & bars ranging from 0.625” to 1.5” in outer diameter. It is important to verify the

Dimensions of your handheld device with its case, sleeve, or skin when determining the overall size. Hardware included 1 optional tether 1 glue tube for rubber caps Material High strength composite Stainless steel Cradle/clamp

Dimensions Width range: 1, 875"
- 3, 25" / 47, 5
- 82.5 mm Max.

Depth: 0.875" / 22 mm Clamp range 0.625"
- 1.14" / 16
- 29 mm diameter Weight Capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 l...











...

The RAM® Tough-Strap™ is lowest profile rugged mounting solution for any bike or motorcycle handlebars. With two different size straps, easily install the RAM® Tough-Strap™ on any mountain bike, road bike or e-bike with a simple twist of a knob. This RAM® Tough-Strap™ Handlebar Mounting kit utilizes the RAM® Pin-Lock™ system to secure the included standard size RAM® X-Grip® for a low-profile fitting on your handlebar. The long strap is used for bar diameters ranging from 1.25"-1.38" while the short strap is used for diameters ranging from 0.875"-1". Utilize the extra rubber strip to cut down to the diameter range of 1"-1.125" for a more custom fit. Take the low-profile RAM® Tough-Strap™ on your next adventure on & off the road. Hardware included 1 X-Grip phone holder 1 10-24 x 1" machine screw 1 10-24 Nylock nut Pin-Lock base 1 straight rubber spacer 1 angled rubber spacer 2 cable ties 1 rubber adhesive pad 1 glue for caps 1 tether Material High strength composite Cradle/clamp

Dimensions Width range: 1, 875"
- 3, 25" / 47, 5
- 82.5 mm Max.

Depth: 0.875" / 22 mm Clamp range 0.875"
- 1.38" / 22
- 3.5cm diameter Weight Capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr. Note Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.







...

The RAM-HOL-UN7-400U consists of the small Tough-Claw™ base & universal X-Grip® cradle. The X-Grip® cradle has a clean & clever four leg design that sports great holding power without hiding your smart-phone behind foam pads & plastic. The X-Grip® cradle expands & contracts for perfect fit of most smartphones. This mount rotates 360 degrees. The X-Grip®

Includes:: a device tether recommended for outdoor applications. It is important to verify the

Dimensions of your handheld device with a case/sleeve/skin when determining the overall size. Hardware included 1 optional tether 1 glue tube for rubber caps Material High strength composite Stainless steel Cradle/clamp

Dimensions Width range: 1, 875"
- 3, 25" / 47, 5
- 82.5 mm Max.

Depth: 0.875" / 22 mm Clamp range 0.625"
- 1.14" / 16
- 29 mm diameter Ball/socket size RAM Snap-Link 3/4" / 19 mm Weight Capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr. Note Exposure to vibrations, like those generated by high-powered moto...











...

The RAM-B-149Z-UN7U consists of a zinc coated U-Bolt base, double socket arm & universal X-Grip® cradle. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base

Includes:: black cover caps to be placed over the exposed ends of the u-bolt. The mount is designed with a RAM 1" / 25 mm diameter patented rubber ball & socket system that has adjustment points at both ends of the double socket arm, this allowing for almost infinite adjustment & perfect viewing angles. The included composite rail adapter can narrow the rail to a minimum width of 0.5" / 12.5 mm. The included X-Grip® cradle has a clean & clever four leg design that sports great holding power without hiding your phone behind foam pads & plastic. The spring-loaded X-Grip® cradle expands & contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today s vehicles, the RAM X-Grip® is the cell phone cradle evolv...

...

The RAP-SB-187-UN7U consists of the RAM EZ-Strap™ base, double ball SHORT arm & universal X-Grip® cradle. The strap can be cut to fit tubing, square rails & irregular shapes from 0.5" to 2.58" (12 bis 65 mm) in diameter. Multiple adjustment points allow you to move the universal X-Grip® cradle to your optimum viewing position. This mount rotates 180 degrees. The X-Grip®

Includes:: a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the

Dimensions listed below. It is important to verify the

Dimensions of your handheld device with a case/sleeve/skin when determining the overall size. Material High strength composite Stainless steel Ball/socket size RAM Snap-Link 3/4" / 19 mm Cradle clamping

Dimensions Width range: 1.875"
- 3.25" / 4.7
- 8.2 cm Max.

Depth: 0.875" / 2.2 cm Weight Capacity Standard use: 0, 5 lbs / 225 gr. Note Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone c...











...

The RAM-B-174-UN10 consists of hardware for mounting to either brake/clutch reservoirs & rails that are 0.5" to 1.25" / 12.5 to 31.5 mm in diameter, double socket arm & universal X-Grip® large phone/phablet holder. Designed into the mount is a 1" / 25 mm diameter patented rubber ball & socket system with adjustment points at both ends of the socket arm, this with a twist of the arm knob, means that you can move the X-Grip® mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard & metric mounting bolts. The included X-Grip® cradle has a clean & clever four leg design that sports great holding power without hiding your phone behind foam pads & plastic. The spring-loaded X-Grip® cradle expands & contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today s vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip®

Includes:: a device tether recommen...

...

The RAM® Tough-Strap™ is lowest profile rugged mounting solution for any bike or motorcycle handbebars. With two different size straps, easily install the RAM® Tough-Strap™ on any mountain bike, road bike or e-bike with a simple twist of a knob. This RAM® Tough-Strap™ Handlebar Mounting kit utilizes the RAM® Pin-Lock™ system to secure the included Large RAM® X-Grip® for a low-profile fitting on your handlebar. The long strap is used for bar diameters ranging from 1.25"-1.38" while the short strap is used for diameters ranging from 0.875"-1". Utilize the extra rubber strip to cut down to the diameter range of 1"-1.125" for a more custom fit. Take the low-profile RAM® Tough-Strap™ on your next adventure on & off the road. Hardware included 1 X-Grip phone holder 1 10-24 x 2" hex bolt 1 long strap 1 short strap 1 long rubber strip 1 short rubber strip 1 tightening knob 1 tether Material High strength composite Cradle/clamp

Dimensions Width range: 1.75"
- 4.5" / 44.5
- 114 mm Max.

Depth:...





...

The RAM® Tough-Claw™ is the perfect mounting base for toolless installation & removal on round, square, & odd-shaped rails & bars. The small version of the RAM® Tough-Claw™ can quickly be clamped on rails ranging from. 625" to 1.14" in outer diameter & is ideal for mounting on the yoke of an aircraft, handlebars of bicycles & motorcycles, or even on kayak rails & roll bars. This kit

Includes:: the popular spring-loaded RAM® X-Grip® phone holder, featuring an X design that expands & contracts to provide a perfect fit for your device – even if it s in a case. This large version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width & keeps your device completely functional & accessible. For outdoor applications, the RAM® X-Grip®

Includes:: a device tether that is recommended for added security & peace of mind. Hardware included 1 optional tether 1 glue tube for rubber caps Material High strength composite Stainless steel Cradle/clamp

Dimensions Width range: 1...





...
