The RAM® Quick-Grip™ Wireless is a patented, universal water-resistant wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement & removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top & bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward & then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible

Dimensions. For added security & peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless kit for vehicles

Includes:: a B size diamond base featuring a 1” / 25 mm rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that means that you can turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2 m Type-A male to Type-A female extension cable. This kit

Includes:: a hardwire charger. Features Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design & 10 W maximum output Kit

Includes:: wireless charging cradle, B size diamond ball base, & hardwire charger, attaches to B size double socket arms made from powder-coated, marine-grade aluminum, stainless steel components, & high-strength composite for durability & reliability in the most demanding environments Hardware included 1 Safety Tether 1 Silicon sleeve for USB (Universal Serial Bus) waterproof connection 1 1.2 Meter USB (Universal Serial Bus) Extension Cable 4 Small zip ties 2 Large zip ties Cradle

Dimensions Height Range: 5.625"
- 6.625" / 14
- 16.8 cm Max.

Width: 3.125" / 7.9 cm Max.

Depth:. 7" max / 1, 75 cm Material High strength composite Stainless steel Power specifications Input Power: 5 V
- 2 A, 9 V
- 1.67 A Output: 5 W / 7.5 W / 10 W Conversion Efficiency: 85% Max Maximum Case Thickness: 6 mm Working Frequency: 110-205 KHZ Product Standard: WPC v.1.2.4 QI Compatible Compatible with QC 2.0/QC 3.0 power supplies Operating temperatures 0° C to + 37.7° C Important notes For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB (Universal Serial Bus) Type-A male & female connector to protect the connections & prevent corrosion. Failure to do so will void warranty. Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5. iPhone 12 & iPhone 13 products support a new & proprietary wireless charging standard not supported in this product.

















...

The RAM® Quick-Grip™ Wireless is a patented, universal water-resistant wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement & removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top & bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward & then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible

Dimensions. For added security & peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless kit for vehicles

Includes:: a B size diamond base featuring a 1” / 25 mm rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that means that you can turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2 m Type-A male to Type-A female extension cable. Features Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design & 10 W maximum output RAM® Mounts Compatible™ with B size double socket arms & ball bases for mounting in your preferred location made from powder-coated, marine-grade aluminum, stainless steel components, & high-strength composite for durability & reliability in the most demanding environments Hardware included 1 Safety Tether 1 Silicon sleeve for USB (Universal Serial Bus) waterproof connection 1 1.2 Meter USB (Universal Serial Bus) Extension Cable 4 Small zip ties 2 Large zip ties Cradle

Dimensions Height Range: 5.625"
- 6.625" / 14
- 16.8 cm Max.

Width: 3.125" / 7.9 cm Max.

Depth:. 7" max / 1, 75 cm Material High strength composite Stainless steel Power specifications Input Power: 5 V
- 2 A, 9 V
- 1.67 A Output: 5 W / 7.5 W / 10 W Conversion Efficiency: 85% Max Maximum Case Thickness: 6 mm Working Frequency: 110-205 KHZ Product Standard: WPC v.1.2.4 QI Compatible Compatible with QC 2.0/QC 3.0 power supplies Operating temperatures 0° C to + 37.7° C Important notes For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB (Universal Serial Bus) Type-A male & female connector to protect the connections & prevent corrosion. Failure to do so will void warranty. Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5. iPhone 12 & iPhone 13 products support a new & proprietary wireless charging standard not supported in this product.













...

The RAM Quick-Grip™ device mount is capable of holding a broad range of electronic devices. The spring-loaded mechanism & the adjustable side keepers allow for a secure grip on your device. Whether it is a cell, GPS, blue tooth speaker or anything that will fit in the

Dimensions of the cradle, your electronics will be secure. Included B size 1" RAM® rubber balls allows for connection to any B size RAM® double socket arm, ball & socket technology allows for near-infinite adjustability. Features The mount is equipped with rubberized ball in 1" diameter for continuous adjustment & setting the perfect viewing angle Material Marine-grade aluminum High strength composite Cradle clamping

Dimensions Height range: 5.75"
- 8.25" / 14, 6
- 21 cm Width range: 2, 625"
- 3, 625" / 6, 7
- 9, 2 cm Max.

Depth: 0.72" / 1.8 cm Weight Capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr. Note Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact i Ph...









...

The RAM Quick-Grip™ handlebar mount consists of a zinc-plated U-bolt base, double-joint arm & a spring-loaded frame to accommodate most phones. The RAM Quick-Grip™ device mount is capable of holding a broad range of electronic devices. The spring-loaded mechanism & the adjustable side keepers allow for a secure grip on your device. Whether it is a cell, GPS, blue tooth speaker or anything that will fit in the

Dimensions of the cradle, your electronics will be secure. Features The package

Includes:: mounting hardware for pipes from 0.50" / 12.5 mm to 1.25" / 31 mm diameter The base comes with black caps for the ends of the bracket screw The mount features a patented RAM clamping arm with 1" diameter rubberized ball that can be adjusted at either end of the double-jointed arm, allowing for infinite adjustment & setting the perfect viewing angle Material Marine-grade aluminum High strength composite Cradle clamping

Dimensions Height range: 5.75"
- 8.25" / 14, 6
- 21 cm Width range: 2, 6...







...

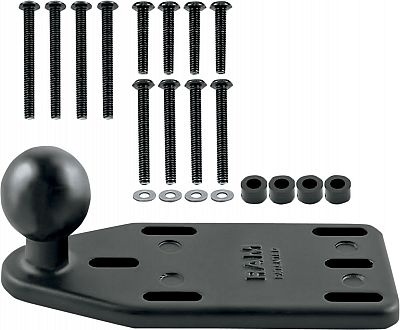

The RAM-B-345U brake/clutch reservoir cover ball base fits cleanly over your existing reservoir cover with the 1" / 25 mm rubber ball centered. made from die-cast aluminum with an overmolded rubber ball, both form & function are unsurpassed. Installation is simple & all necessary hardware is included. This mount is not compatible with the 2016 BMW R1200RT. Features Utilize your existing reservoir cover with this ball base for motorcycles, hardware included Included B size 1" / 25 mm RAM® rubber ball allows for connection to any B size RAM® double socket arm, ball & socket technology allows for near-infinite adjustability made from Powder-coated, marine-grade aluminum for durability & reliability in the most demanding marine environments Hardware included 4 M4 x 20 mm machine screws 4 M4 x 30 mm machine screws 4 M4 x 3.5cm machine screws 4 M4 flat washers 4 0.188" nylon spacers

Dimensions B size Ball 1" / 25 mm Weight capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450...

...

The RAM-B-201-A, short double socket arm, has a socket at both ends that accommodate 1" / 25 mm ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball & socket connection. This socket technology allows for almost infinite adjustment & perfect viewing angles. The knob has a locking Acorn nut that prevents the mount from being removed from the socket. This feature allows for a secure mount while giving the ability to adjust your device without the ability to remove the device.

Dimensions Ball size B 1" / 25 mm Socket distance 1.75" / 45 mm Overall length 2.42" / 50 mm Weight capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr.

...

The RAM-B-108BU consists of a B size 1" / 25 mm rubber ball connected at a right angle to a V-shaped base, & accommodates rails from 1" to 2.1" in diameter. To mount the RAM-B-108BU base, place the saddle-shaped plate on the rail & then wrap the metal clamp strap around the rail & plate. Tighten the knob on the metal strap with a screwdriver until it has a firm hold on the rail. Features Saddle-shaped clamp-mount ideal for rails ranging from 1" to 2.1" in diameter Included B size 1" / 25 mm RAM® rubber ball allows for connection to any B size RAM® double socket arm, ball & socket technology allows for near-infinite adjustability made from Powder-coated, marine-grade aluminum for durability & reliability in the most demanding marine environments Hardware included 1 20 Worm drive strap clamp 1 28 Worm drive strap clamp 1 6" rubber strip

Dimensions B size Ball 1" / 25 mm Clamp range 1"
- 2.1" / 25
- 53 mm diameter Weight capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 l...



...

The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycles. The hardware you need to mount to the fill port is included. Hardware included 4 M5-0.8 x 40 mm socket head cap screws 3 M5-0.8 x 25 mm socket head cap screws 4 M5 stainless steel washers

Dimensions B size Ball 1" / 25 mm To ensure proper fit use the measuring guide, tank bolts distance for this part will be 4" Weight capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr. Suitable for Manufacturer Model Model year BMW 900 RT 05 SF 2005/2006, 2009/2010 BMW F 650 CS 1999, 2001-2005 BMW F 650 GS 2000-2008 BMW F 650 GS Dakar 2000-2007 BMW G 650 GS 2008-2010 BMW HP2 Enduro 2005-2007 BMW HP2 Megamoto 2007-2009 BMW K 1200 GT 2002-2009 BMW K 1200 R 2004-2009 BMW K 1200 R Sport 2005-2008 BMW K 1200 RS 1996-2005 BMW...

...

The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycles. The hardware you need to mount to the fill port is included. Hardware included 3 M6-1.0 x 25 mm socket head cap screw 3 M5-0.8 x 3.5cm socket head cap screw 4 M5-0.8 x 45 mm socket head cap screw 3 M5-0.8 x 25 mm socket head cap screw 3 M5-0.8 x 20 mm socket head cap screw 3 M5-0.8 x 16 mm socket head cap screw 4 M5 stainless steel washers 3 M6 stainless steel washers

Dimensions B size Ball 1" / 25 mm To ensure proper fit use the measuring guide, tank bolts distance for this part will be 4" Weight capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr. Suitable for Manufacturer Model Model year Honda CB500 2016 Honda CBR500 2016 Honda CBR650 2014-2016 Honda CBR1000 2014-2016 Honda NC700 2016 Honda VFR1200 20...

...

The large version of the RAM® Torque™ handlebar mounting base features a 1" / 25 mm B size RAM® rubber ball & is compatible with rails 1 1/8” to 1 1/2" / 28
- 38 mm in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The large RAM® Torque™ mounting base also

Includes:: nylon-insert locknuts to prevent loosening in high vibration environments. Hardware included 2 10-24 x 1" socket head cap screws 2 10-24 Nylock nuts 2 1.12" split reducing bushings 2 1.27" split reducing bushings 1 5/32" hex key wrench 1 127 mm x 17 mm rubber adhesive strip Features Handlebar mounting base with B size 1" / 25 mm rubber ball accommodates rails 1 1/8" to 1 1/2" in diameter

Includes:: sizing inserts to provide a tight fit while protecting the mounting surface, mount

Includes:: nylon-insert locknuts to prevent loosening made from powder-coated, marine-grade aluminum for durability & reliability in the most demanding environments

Dimensions Clamp range 1 1...








...
