HIGHSIDER RS1, black anodized bracket made from CNC machined aluminum, e.g. for mounting a HIGHSIDER SATELLITE high or low beam headlight. The HIGHSIDER RS1 holder is attached to the CNC aluminum standpipe clamps No. 207-402 to 207-419 (not included). Can also be used universally. Tailor-made for your bike
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With the highest level of quality & functionality, you can easily customize your bike according to your wishes.

Dimensions

Width: 56 mm (mounting hole 14 mm & Ø5 mm hole diameter)

Height: 15 mm

Depth: 36 mm Mounting hole for headlight: M6 x 1 mm Scope of delivery 1 pair RS1 holder 220-103 2x cable fix 2x M6 x 15 mm screws (black)








...

HIGHSIDER RS2, universal CNC bracket in black anodized aluminum. The model HIGHSIDER RS2 is an ingenious multifunctional holder. Attached to the handlebar, it can be used to hold instrument, nav or cell phone holders. With a mounting on the crash bar, additional headlights, such as the HIGHSIDER SATELLITE low beam or high beam headlights (No. 223-456 / 223-457), can be attached. A total of five holes with a female M6 thread ensure the greatest possible flexibility in use. Suitable for tube diameters of 20 mm, 22 mm, 27 mm & 28 mm. The holder can be easily & quickly adapted to the above diameters with the enclosed insert shells. Tailor-made for your bike
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With a maximum of quality & functionality, you can easily design your bike according to your wishes.

Dimensions

Width: 38.5 mm

Height: 17 mm

Depth: 76 mm Internal thread: 5 x M6 (1 x front, 1 x top, 1 x bottom, 1 x each side) Clamping: 20...








...

HIGHSIDER SATELLITE LED driving lamp with holder, E-approved. Small, powerful driving lamp with 3 power LEDs (8 watts each) in a matte black aluminum housing with round lens, enclosed in a sturdy steel bracket. The LED technology & the insert used produce a symmetrical, bright light for optimal perception of bikers by other road users. See & be seen
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions headlight & holder Lens diameter: 50 mm Maximum housing diameter: 64 mm Housing length: 62 mm Base plate holder with slotted holes: 33 x 33 mm Max. Width holder: 59 mm E-box

Dimensions

Height: 16 mm

Width: 49 mm

Depth: 19 mm Power consumption at 12.5 volts DC (suitable for 8
- 16 volts DC): approx. 0.9 amps, 800 lumens Connections Black cable: ground (-) Red cable: plus (+) Scope of delivery 1 piece low beam headlight 223-457











...

HIGHSIDER SATELLITE LED low beam headlight with bracket, E-approved. Small, powerful low beam headlight with 2 power LEDs (8 watts each) in a matte black aluminum housing with round lens, enclosed in a sturdy steel bracket. The LED technology & the insert used produce a symmetrical, bright light for optimal perception of bikers by other road users. See & be seen
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions headlight & holder Lens diameter: 44 mm Maximum housing diameter: 50 mm Housing length: 62 mm Base plate holder with slotted holes: 33 x 33 mm Max. Width holder: 59 mm

Dimensions E- Box

Height: 16 mm

Width: 49 mm

Depth: 19 mm Power consumption at 12.5 volts DC (suitable for 8
- 16 volts): approx. 0, 7 Ampere, 520 Lumen Connections Red = Plus (+) Red wire connects to ignition positive (+) Black = ground (-) Scope of delivery 1 piece low beam headlight 223-456











...

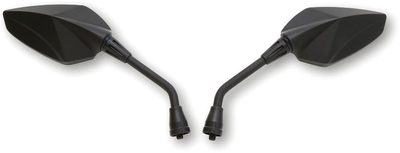

HIGHSIDER SEMPIONE, matte black fairing mirror in a sporty design. The mirror made from plastic is reinforced by a CNC-milled joint sleeve. E-approved. Please order adapter set 304-020 or 304-022 separately. Prudence with style
- whether classic or modern. The HIGHSIDER mirror series are characterized by striking design & aerodynamic function. So you can keep an overview.

Dimensions Width, head: 145 mm, mirror surface: 139 mm Height, head: 86 mm, mirror surface: 80 mm Length, handle from head to bend: 105 mm Length, stem from head to thread: 145 mm Connection thread: M6 Scope of delivery 1 pair of fairing mirror 301-481 without adapter


...

HIGHSIDER 5 3/4 inch main headlight SKYLINE with LED parking light ring. The innovation for your safety
- the SKYLINE model is
...

HIGHSIDER 5 3/4 inch main headlight SKYLINE with LED parking light ring. The innovation for your safety
- the SKYLINE model is
...

HIGHSIDER 5 3/4 inch main headlight SKYLINE with LED parking light ring. The innovation for your safety
- the SKYLINE model is
...

HIGHSIDER 5 3/4 inch main headlight SKYLINE with LED parking light ring. The innovation for your safety
- the SKYLINE model is
...

This LED license plate light can be placed inconspicuously due to its extremely small design. Self-adhesive, allows many mounting positions for the legally required complete illumination of the license plate. The license plate light has an E-mark & requires no further papers. Tailor-made for your bike
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With the highest level of quality & functionality, you can thus easily design your bike according to your wishes.

Dimensions

Height: 6.5 mm

Width: 16 mm

Depth: 10 mm Connections White = Plus (+) Black = Ground (-) Scope of delivery 1 piece license plate light 256-065








...
