HIGHSIDER ROCKET BULLET 3in 1 LED tail light, brake light, turn signal with aluminum housing & tinted glass
- for rear E-approved.
...

HIGHSIDER ROCKET BULLET LED turn signal with aluminum housing & tinted glass. The cone-shaped variant to the HIGHSIDER ROCKET CLASSIC
-
...

HIGHSIDER ROCKET BULLET LED turn signal / position light with aluminum housing & tinted glass. The cone-shaped variant to the HIGHSIDER ROCKET CLASSIC
- for front E-approved. Inspired by organic shapes, HIGHSIDER product development has designed a completely new housing shape without losing sight of the reference to the past. At the same time, the soft, round shape supports the classic associations evoked in the viewer. In the center 6 very bright SMD are installed. The outer ring consists of COBs (Chip On Board). Due to the new LED chip embedding for high-power LEDs, a very high luminance is achieved with currently the best possible efficiency & service life. In addition, higher light values can be achieved than with conventional LEDs. In the right direction
- with the innovative turn signal series from HIGHSIDER. Show not only where you want to go, but also who you are. This is directional design at its best.

Dimensions Diameter: 45 mm

Width: 65 mm

Depth: 64 mm Stem length: 24 mm...







...

HIGHSIDER ROCKET LED turn signals
- suitable for mounting or surface mounting
- with black aluminum ring & tinted glass. E-approved

...

HIGHSIDER ROCKET LED turn signal / position light combination
- suitable for mounting or surface mounting
- with a black aluminum

...

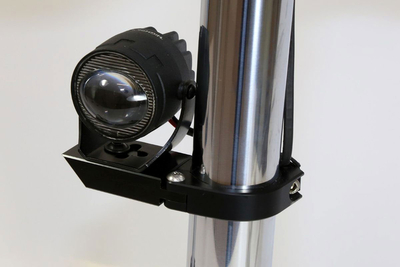

HIGHSIDER RS2, universal CNC bracket in black anodized aluminum. The model HIGHSIDER RS2 is an ingenious multifunctional holder. Attached to the handlebar, it can be used to hold instrument, nav or cell phone holders. With a mounting on the crash bar, additional headlights, such as the HIGHSIDER SATELLITE low beam or high beam headlights (No. 223-456 / 223-457), can be attached. A total of five holes with a female M6 thread ensure the greatest possible flexibility in use. Suitable for tube diameters of 20 mm, 22 mm, 27 mm & 28 mm. The holder can be easily & quickly adapted to the above diameters with the enclosed insert shells. Tailor-made for your bike
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With a maximum of quality & functionality, you can easily design your bike according to your wishes.

Dimensions

Width: 38.5 mm

Height: 17 mm

Depth: 76 mm Internal thread: 5 x M6 (1 x front, 1 x top, 1 x bottom, 1 x each side) Clamping: 20...








...

HIGHSIDER SATELLITE LED driving lamp with holder, E-approved. Small, powerful driving lamp with 3 power LEDs (8 watts each) in a matte black aluminum housing with round lens, enclosed in a sturdy steel bracket. The LED technology & the insert used produce a symmetrical, bright light for optimal perception of bikers by other road users. See & be seen
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions headlight & holder Lens diameter: 50 mm Maximum housing diameter: 64 mm Housing length: 62 mm Base plate holder with slotted holes: 33 x 33 mm Max. Width holder: 59 mm E-box

Dimensions

Height: 16 mm

Width: 49 mm

Depth: 19 mm Power consumption at 12.5 volts DC (suitable for 8
- 16 volts DC): approx. 0.9 amps, 800 lumens Connections Black cable: ground (-) Red cable: plus (+) Scope of delivery 1 piece low beam headlight 223-457











...

HIGHSIDER SATELLITE LED low beam headlight with bracket, E-approved. Small, powerful low beam headlight with 2 power LEDs (8 watts each) in a matte black aluminum housing with round lens, enclosed in a sturdy steel bracket. The LED technology & the insert used produce a symmetrical, bright light for optimal perception of bikers by other road users. See & be seen
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions headlight & holder Lens diameter: 44 mm Maximum housing diameter: 50 mm Housing length: 62 mm Base plate holder with slotted holes: 33 x 33 mm Max. Width holder: 59 mm

Dimensions E- Box

Height: 16 mm

Width: 49 mm

Depth: 19 mm Power consumption at 12.5 volts DC (suitable for 8
- 16 volts): approx. 0, 7 Ampere, 520 Lumen Connections Red = Plus (+) Red wire connects to ignition positive (+) Black = ground (-) Scope of delivery 1 piece low beam headlight 223-456











...

HIGHSIDER SEMPIONE, matte black fairing mirror in a sporty design. The mirror made from plastic is reinforced by a CNC-milled joint sleeve. E-approved. Please order adapter set 304-020 or 304-022 separately. Prudence with style
- whether classic or modern. The HIGHSIDER mirror series are characterized by striking design & aerodynamic function. So you can keep an overview.

Dimensions Width, head: 145 mm, mirror surface: 139 mm Height, head: 86 mm, mirror surface: 80 mm Length, handle from head to bend: 105 mm Length, stem from head to thread: 145 mm Connection thread: M6 Scope of delivery 1 pair of fairing mirror 301-481 without adapter


...

HIGHSIDER SEMPIONE, matte black universal mirror in a sporty design. The mirror made from plastic is reinforced by a CNC-milled joint sleeve. E-approved. Circumspection with style
- whether classic or modern. The HIGHSIDER mirror series are characterized by striking design & aerodynamic function. So you keep the overview.

Dimensions Width, head: 145 mm, mirror surface: 139 mm Height, head: 86 mm, mirror surface: 80 mm Length, handle from head to bend: 105 mm Length, stem from head to thread: 145 mm Connection thread: M10 x 1.25 mm Scope of delivery 1 pair of mirrors 301-480


...
