Aluminum turn signal holder, black, for CNC aluminum fork pipe clamps. Scope of delivery 1 pair of turn signal holder 207-122 ...

The HIGHSIDER FT13- FOG is a powerful fog light in a matte black aluminum housing with a round lens, E-approved: ECE R19, F3. The LED technology & the insert used produce a bright light for optimal perception.

Dimensions headlight Diameter: 55 mm Lens diameter: 44 mm Distance of mounting holes: 56 mm Mounting holes lateral: 63, 8 mm Depth of housing: 70 mm Depth from mounting point: 62 mm Cable length to E-box: 590 mm Material housing: aluminum Material holder: steel

Dimensions of the box

Height: 11 mm

Width: 44, 5 mm

Depth: 12 mm Weight: 0, 3kg Connections Red = low beam (+) Black = Ground (-) Scope of delivery 1 piece fog light 222-464 1x screw 1x washer 1x nut 1x E-box Notes EMC ready The headlamp must never be connected without the supplied black electronic box (voltage control).









...

HIGHSIDER LED low beam headlight FT13- LOW, E-approved. Small LED low beam headlight, solidly made & with high light output. The FT13- LOW is a powerful low beam headlight with a round lens. The headlight s matte black housing is made from high-quality aluminum & has a sturdy steel bracket. The LED technology & the insert used produce a symmetrical, bright light for optimal perception. Together with the LED spotlight FT13- HIGH (to be ordered separately) a true dream team. The result is something to be proud of: Ideal for conversions of any kind & thanks to test mark STVO compliant. The bright joy
- give your bike your unmistakable style! The unusual design & perfect technology of the HIGHSIDER headlight series will definitely make you a highlight!

Dimensions headlight Diameter: 55 mm Lens diameter: 44 mm Distance of the mounting holes: 54 mm Mounting holes on the side: M4 Depth of housing / from mounting point: 70 mm / 40 mm E-box

Dimensions

Width: 53.3 mm

Depth: 33.5 mm Heigh...








...

HIGHSIDER LED position light GLOW-PL1, E-approved. This special LED position light is a shapely, flat module which can be laminated into fairings, for example, or mounted quickly & easily thanks to the adhesive tape on the back. The LED s have a modern cool white appearance.

Dimensions

Width: 110 mm Width to the kink: 75.6 mm Width after kink: 34 mm

Height: 4.5 mm

Depth: 4 mm Cable length: 1000 mm Connections Red = position light (+) Black = Ground (-) Scope of delivery 1 pair of position lights 223-300 Note Never connect the LED position light GLOW-PL1 as described in the month manual without the enclosed electronic module.







...

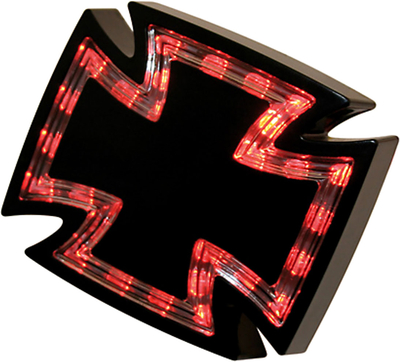

HIGHSIDER LED taillight / brake light combination GOTHIC. Tail light with power LED in a plastic housing in cross design & clear glass lens, E-approved. Be seen with safety -the tail light & taillight/turn signal series from HIGHSIDER give you the safety you need & the look you want
- whether cruiser, scooter or speedster.

Dimensions

Width: 74 mm

Height: 64 mm

Depth: 20.5 mm Mounting: with 2 x M4- screws on the back, hole spacing: 40 mm. Connections Black cable = ground (-) Yellow cable = rear light (+) Red cable = brake light (+) Variants 255-095
- Black 255-096
- Chrome plated Scope of delivery 1 piece tail light










...

HIGHSIDER hand protectors with LED daytime running light & parking light. The ingenious accessory for all enduro riders
- hand
...

This adapter expands your options when choosing a mirror from the HIGHSIDER accessories program for your Harley-Davidson. Herewith you can attach, right & left, all mirrors with an M8 internal thread in the stem to your Harley. Variants 304-011
- Chrome plated 304-012
- Black Scope of delivery 1 piece mirror adapter

...

This adapter expands your options when choosing a mirror from the HIGHSIDER accessories program for your Harley-Davidson. Herewith you can attach, right & left, all mirrors with an M8 internal thread in the stem to your Harley. Variants 304-011
- Chrome plated 304-012
- Black Scope of delivery 1 piece mirror adapter

...

HIGHSIDER LED taillight / brake light INTERSTATE with holder. Powerful LED tail light in a black metal housing with red glass. Without license plate light, E-approved. The best is saved for last
- HIGHSIDER s taillight & taillight/turn signal series give you the safety you need & the look you want
- whether cruiser, scooter or speedster.

Dimensions

Width: 150 mm

Height: 27.5 mm

Depth: 28 mm Hole spacing, bracket: 22 mm (center-to-center) Connections Black cable = ground (-) Yellow cable= taillight (+) Blue cable = brake light (+) Scope of delivery 1 piece LED taillight 255-906 including holder









...

HIGHSIDER Headlight IOWA H4 halogen main headlight including parking light with clear or blue glass in a chrome or black oval metal housing for bottom mount. The reflector emits a bright, symmetrical light
- for good road illumination & optimum visibility, E-approved See & be seen
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case! Technical specifications Illuminant: H4, 12 V 60/55W

Width: 175 mm

Height: 102 mm

Depth: 132 mm Side mount lamp ring: side mount with M3 socket head screws, M3 x 0.5 mm, length: 15 mm, (actual thread length: 12 mm), head diameter: 5 mm. Bottom mount: M10 Connections Black cable = ground (-) Yellow cable = low beam (+) Blue cable = high beam (+) Parking light Green cable = parking light (+) Black cable = ground (-) Variants 223-060
- Chrome/blue-tinted 223-062
- Black/blue-tinted 223-063
- Chrome/ Clear 223-064
- Black/ Clear Scope of delivery 1 piece H4 headlight











...
