HIGHSIDER color ring for handlebar weights
- Styling for your bike. The color ring, consisting of the finest anodized aluminum
...

Available

Replacement mounting kit for HIGHSIDER handlebar end weights EVO & handlebar end mirrors EVO. Replacement mounting kit for HIGHSIDER handlebar end weights EVO (item no. 161-032 & 161-033) & handlebar end mirrors EVO (item no. 301-019, 301-026, 301-784). Suitable for handlebars with an inner diameter of 12 to 22 mm. All our handlebar end mirrors (hanging mirrors) with a diameter of 1 inch (25.4 mm) can be attached to the handlebar weight. Precisely matched
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With the highest level of quality & functionality, you can easily customize your bike to your liking.

Dimensions Diameter: 25.4 mm Length: 28 mm Weight with attachments: approx. 75 gr. Scope of delivery 1 pair of mounting sets 161-034 Each 2 x clamping sleeves D. 12 mm u. D. 16 mm 2 x centering sleeves type 1, type 2, type 3 each Each 2 x central screw M6, toothed lock washer & conical nut M6

...

Available

HIGHSIDER CNC aluminum lamp holder EXTEND, adjustable length, black. The perfect part for your conversion project. Precisely processed lamp holders of the extra class, elaborately CNC-milled & anodized. The aluminum holders for mounting headlights are robust, lightweight & look classy. The EXTEND lamp holders are adjustable in length, so the distance for the headlight can be variably adjusted from about 3.5cm to 90 mm & simplifies the alignment of the headlight on your chopper, cruiser or naked bike. Attached to the fork, the headlight can be mounted closely to the bike. Precisely tuned
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With the highest level of quality & functionality, you can easily customize your bike to your liking.

Dimensions Thickness: 12 mm Length holder Min: 3.5cm (Measured center hole to headlight mount) Length holder Max: 95 mm (Measured center hole to headlight mount)

Height: 55 mm Hole diameter: 10 mm Scope...

...

Available

HIGHSIDER CNC fairing mirror adapter FB-1 short or long selectable, set. The CNC fairing mirror adapters are attached to the fairing, where originally the OEM fairing mirrors were installed. A special screw adapter (M6, M8) is screwed into the handlebar mirror e.g. HIGHSIDER VICTORY 301-027 (not included) & in turn attached to the CNC fairing mirror adapter.

Dimensions version short (304-029) Length: 61 mm

Width: 18 mm Screw hole spacing: 8-43 mm

Dimensions version long (304-030) Length: 77.5 mm

Width: 18 mm Screw hole spacing: 8-59 mm Scope of delivery 2 x CNC fairing mirror adapter short or long 2 x screw adapter M6 2 x screw adapter M8 4 x screws M6 x 30 mm 2 x screws M6 x 15 mm 4 x M6 self-locking nut 4 x washer D.9, 8 x 6 x 1, 3 mm 4 x washer D.11, 8 x 6 x 1, 4 mm 4 x bushing D.10.4 x 6 x 7 mm 4 x socket D.11 x 6 x 10 mm 4 x mirror adapter for fastening to the holder Notes For mirrors 301-027, 301-050, 301-447, 301-573, 301-580 & 301-582 CNC fairing mirror adapter long, No. 304-03...

...

Available

HIGHSIDER FERRARA 2-XL mirror, E-approved, surface finely bead-blasted in black satin. The XL generation of the popular HIGHSIDER FERRARA 2 has a 25 mm longer aluminum arm for the best possible view to the rear. So you get, for example, the elbow or knee of the pillion out of the field of view. The aluminum spear head has a corrosion-resistant stainless steel ball clamp & allows precise adjustment of the mirror. The assembly takes place classically in the handlebar fitting. The screw connection with the handlebar fittings is made via an adapter (M10x 1.25) & is therefore suitable for most models on the market. For Yamaha models with left-hand thread is a corresponding adapter included. Can be used for left & right side. Prudence with style
- whether classic or modern. The HIGHSIDER mirror series are characterized by striking design & aerodynamic function. So you can keep an overview.

Dimensions A Width head: 122 mm B Height head: 85 mm C Total

Width: 197 mm D Total

Height: 176 m...

...

Available

Noble handlebar end mirror in a sporty design with a head made from aluminum. Suitable for handlebars with an inner handlebar diameter of 12 to 21 mm, i.e. for most 7/8-inch & 1-inch aluminum or steel handlebars. Can be used for left & right side, E-approved. Prudence with style
- whether classic or modern. The HIGHSIDER mirror series are characterized by striking design & aerodynamic function. So you can keep an overview.

Dimensions A: Width head 120 mm B: Height head 85 mm C: Width 90 mm D: Height 180 mm

Depth: 24 mm Length, arm to bend: 70 mm Length, arm to end of clamp: 115 mm Width, clamp: 12 mm Variants 301-782
- Black 301-783
- Chrome plated Scope of delivery 1 piece handlebar end mirror, incl. reducing rings for 1 inch & 7/8 inch Note To close any holes for mounting the original handlebar mirrors, use the HIGHSIDER closing caps.

...

Available

Handlebar mirror with an aluminum head & adjustable stem. Thanks to the use of a second joint on the stem, there are additional adjustment options for your safety.

Includes:: extra adapter M10 x 1.25 mm with left-hand thread for Yamaha. Can be used for left & right side. Prudence with style
- whether classic or modern. The HIGHSIDER mirror series are characterized by striking design & aerodynamic function. So you can keep an overview.

Dimensions A Width head: 120 mm B Height head: 85 mm C Total

Width: 200 mm D Total

Height: 150 mm Depth head: 24 mm Length, arm to joint: 150 mm Length, arm to threaded bolt: 180 mm Blind hole M8 x 1.25 mm Variants 301-780
- Black 301-781
- Chrome plated Scope of delivery 1 piece rear view mirror Adapter M10 x 1, 25 mm with left hand thread for Yamaha

...

Available

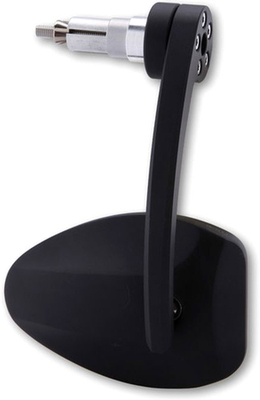

Highsider Ferrara 2 EVO, Bar End Mirror

HIGHSIDER FERRARA 2 EVO handlebar end mirror, usable for left and right side, E-approved. Black anodized handlebar end mirror in a sporty design with a head made of aluminum and a bent stem - without kink as in the HIGHSIDER FERRARA 2 model. Suitable for handlebars with an inner handlebar diameter of 12 to 22 mm, i.e. for most 7/8-inch and 1-inch aluminum or steel handlebars. Character and overview - whether retro or modern. The HIGHSIDER mirror series are characterized by characteristic design and aerodynamic function. This is circumspection in perfection. Dimensions Width, head: 122 mm Height, head: 85 mm Depth: 24 mm Length, handle: approx. 130 mm Central screw: M6 x 1.0 mm hexagon socket screw Scope of delivery 1 piece handlebar end mirror 301-784, including mounting kit and
universal clamping system. Notes For conversion, loosen the five M4 screws and reattach the intermediate adapter on the other side. To close any holes for mounting the original handlebar mirrors, please use the...

Availability: In Stock
Supplier: Motoin SE
SKU: se-11083725-001

Description Reviews / Comments Add New

Product Description

HIGHSIDER FERRARA 2 EVO handlebar end mirror, usable for left & right side, E-approved. Black anodized handlebar end mirror in a sporty design with a head made from aluminum & a bent stem
- without kink as in the HIGHSIDER FERRARA 2 model. Suitable for handlebars with an inner handlebar diameter of 12 to 22 mm, i.e. for most 7/8-inch & 1-inch aluminum or steel handlebars. Character & overview
- whether retro or modern. The HIGHSIDER mirror series are characterized by characteristic design & aerodynamic function. This is circumspection in perfection.

Dimensions Width, head: 122 mm Height, head: 85 mm

Depth: 24 mm Length, handle: approx. 130 mm Central screw: M6 x 1.0 mm hexagon socket screw Scope of delivery 1 piece handlebar end mirror 301-784, including mounting kit & universal clamping system. Notes For conversion, loosen the five M4 screws & reattach the intermediate adapter on the other side. To close any holes for mounting the original handlebar mirrors, please use the...

Reviews/Comments

Add New

Jargon Buster

Black - A colour which does not emit any colour of the spectrum. Black absorbs all frequencies of the spectrum.

Diameter - A measurement across a circle passing through the middle

Steel - An alloy made predominately of Iron combined with <2% carbon

Inch - Equivalent to approximately 2.5cm

kink - A twist or bend in material.

delivery - The method by which something is delivered from one location to another

Screws - A simple device use for physically attaching two objects together

Width - The measurement of something from one side to the other.

Dimensions - The shapes and angles of something or a situation.

Design - A drawing or styles that shows the look and functionality of something before its made.

Retro - something that is vintage or replicates a style in the past.

Head - The upper part of a body typically separated by the neck.

Model - A representation of a person or thing, usually smaller scale. It can also be a person that wears clothing.
