HIGHSIDER 5 3/4 inch LED main headlight BATES STYLE TYPE 5, E-approved. Stylish LED headlight with a black or chrome metal housing in BATES STYLE design. The round, chrome-plated reflector with black bezel & clear glass has a high beam, low beam & parking light function. The upper half illuminates the low beam & when the high beam is on, both halves of the headlight illuminate. The tested headlight is also robust & easy to install. HIGHSIDER highlights
- give your bike a distinctive style! The unusual design & perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions Housing diameter: 155 mm Diameter headlight insert: 145 mm Depth without glass: 110 mm Mounting: bottom Connections 3-pin connector red = low beam (+) white = high beam (+) black = ground (-) brown = position light (+) black = ground (-) Variants 223-213
- Black, bottom mount 223-214
- Chrome, bottom mount Scope of delivery 1 piece main headlight, E-approved




...

HIGHSIDER LED taillight, brake light, turn signal BLAZE. LED tail light, brake light, turn signal in a metal housing with black rubber stem & a compact rectangular shape. The high quality BLAZE has waterproof mini-plugs & is E-approved for rear installation. Not to be overlooked -HIGHSIDER s taillight & taillight/turn signal series give you the safety you need & the look you want
- whether cruiser, sport bike or scooter.

Dimensions A: 39.5 mm B: 55 mm C: 19.5 mm D: 19 mm Threaded bolt: M8 x 1.25 mm Connections Black cable = ground (-) Yellow cable= turn signal (+) Orange cable = tail light (+) Red cable = brake light (+) Variant 254-300
- Black / tinted glass 254-301
- Chrome / clear glass 254-302
- Black / clear glass Scope of delivery 1 pair rear, brake light, turn signal for rear





...

HIGHSIDER LED taillight, brake light, turn signal BLAZE. LED tail light, brake light, turn signal in a metal housing with black rubber stem & a compact rectangular shape. The high quality BLAZE has waterproof mini-plugs & is E-approved for rear installation. Not to be overlooked -HIGHSIDER s taillight & taillight/turn signal series give you the safety you need & the look you want
- whether cruiser, sport bike or scooter.

Dimensions A: 39.5 mm B: 55 mm C: 19.5 mm D: 19 mm Threaded bolt: M8 x 1.25 mm Connections Black cable = ground (-) Yellow cable= turn signal (+) Orange cable = tail light (+) Red cable = brake light (+) Variant 254-300
- Black / tinted glass 254-301
- Chrome / clear glass 254-302
- Black / clear glass Scope of delivery 1 pair rear, brake light, turn signal for rear





...

HIGHSIDER LED taillight, brake light, turn signal BLAZE. LED tail light, brake light, turn signal in a metal housing with black rubber stem & a compact rectangular shape. The high quality BLAZE has waterproof mini-plugs & is E-approved for rear installation. Not to be overlooked -HIGHSIDER s taillight & taillight/turn signal series give you the safety you need & the look you want
- whether cruiser, sport bike or scooter.

Dimensions A: 39.5 mm B: 55 mm C: 19.5 mm D: 19 mm Threaded bolt: M8 x 1.25 mm Connections Black cable = ground (-) Yellow cable= turn signal (+) Orange cable = tail light (+) Red cable = brake light (+) Variant 254-300
- Black / tinted glass 254-301
- Chrome / clear glass 254-302
- Black / clear glass Scope of delivery 1 pair rear, brake light, turn signal for rear





...

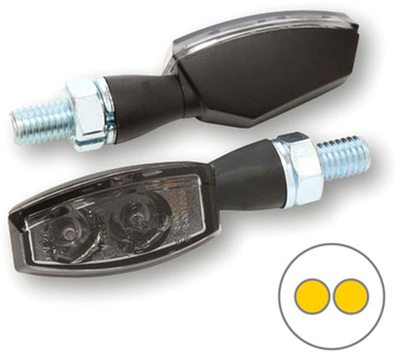

HIGHSIDER LED turn signal BLAZE. The BLAZE model combines powerful LED technology with a modern design. The tinted glass blends harmoniously with the high-quality processed, black metal housing. The turn signals include small, waterproof plugs & a rubber stem, E-approved. Head in the right direction
- with the innovative turn signal series from HIGHSIDER. Show not only where you want to go, but also who you are. This is directional design at its finest.

Dimensions A: approx. 40 mm B: approx. 55 mm C: approx. 20 mm D: 19 mm Threaded bolt M8 x 1.25 mm, length: approx. 20 mm Connections Black cable = ground (-) Red cable = turn signal (+) Variant 204-300
- Black / tinted glass 204-301
- Chrome / clear glass 204-302
- Black / clear glass Scope of delivery 1 pair of turn signals





...

HIGHSIDER LED turn signal / position light unit BLAZE. This unit combines powerful LED technology with a modern design. The tinted glass blends harmoniously with the high-quality processed, black metal housing. The turn signals include small, waterproof plugs & a rubber stem, E-approved. Head in the right direction
- with the innovative turn signal series from HIGHSIDER. Show not only where you want to go, but also who you are. This is directional design at its finest.

Dimensions A: approx. 40 mm B: approx. 55 mm C: approx. 20 mm D: 19 mm Threaded bolt M8 x 1.25 mm, length: approx. 20 mm Connections Black cable = ground (-) for both functions Yellow cable = turn signal (+) White cable = parking light (+) Scope of delivery 1 pair of turn signal/position light 204-304


...

HIGHSIDER CNC FRAME CAP Set, 2-piece (160-326) or 7-piece (160-325), suitable for BMW Rnine T from 2014-2016 (complete set). ATTENTION From model year 2016, the frame has been changed on some models. Thus, the cover cap (vehicle side bestrachtet from the left) top right (above the cylinder head- injector) does not fit! SEE PHOTO The black anodized aluminum caps cover the frame holes of the BMW Rnine T. Combined with polished bevels, these caps stand for a noble, stylish design & fit perfectly to our HIGHSIDER CONERO series. Tailor-made for your bike
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With the highest level of quality & functionality, you can easily customize your bike to your liking.

Dimensions 2-piece set Cap, left = A: 49 mm, B: 42 mm, C: 13 mm Locking cap, right = A: 58 mm, B: 48 mm, C: 10 mm

Dimensions 7-piece set Swingarm cover = A: 49 mm, B: 42 mm, C: 13 mm Swingarm closing lid = A: 58 mm, B: 48 mm, C: 10 mm Upper swing...




...

This special handlebar adapter is suitable for mounting various HIGHSIDER handlebar end weights & handlebar end mirrors directly on the original handlebar of the BMW R nine T. Tailor-made for your bike
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With the highest level of quality & functionality, you can easily customize your bike according to your wishes.

Dimensions Bolt: M12 Internal thread: M6 Scope of delivery 1 pair of handlebar adapters 161-037 2 x threaded sleeves 2 x washers Suitable for BMW R 1200 Nine T ABS, 2014- BMW S 1000R ABS, 2014-2016


...

This load-independent digital flasher unit is ideal for LED conversions. Equipped with under- & overvoltage protection, the relay provides an absolutely constant flashing frequency & can be used for all turn signals from 1 watt to 21 watts. Other

Features: waterproof, vibration-proof, wear-free & overload-proof. Made in Germany. Tailor-made for your bike
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With the highest level of quality & functionality, you can easily customize your bike according to your wishes.

Dimensions Length: 20 mm

Width: 20 mm

Height: 13 mm Technical specifications Supply voltage: 5 V
- 16 V Load range: 1 W
- 90 W No quiescent current consumption Simple connections via 2 wires Connect red cable = 12 V (+) with terminal 49, it is recommended to connect a 10 A fuse in front. Black cable = connect ground (-) in series to turn signal switch with terminal 49a Scope of delivery 1 piece flasher unit 208-011 Bracket fo...










...

HIGHSIDER 7 inch LED headlight BRITISH-STYLE TYPE 8
- See & be seen!
- For motorcyclists of utmost importance. The installed

...
