SHIN YO STRAIGHT handlebar end mirror, E-approved. The STRAIGHT is a trendy &, due to its plastic head, lightweight mirror. It is suitable for handlebars with a diameter of 7/8 inch & 1 inch. The mirror can be used on the left & right & is available in a short or long version. You can mount the mirror either with the supplied reducing sleeves directly on the handlebar or on the special handlebar end weights HIGHSIDER DOT, HIGHSIDER CURVE, HIGHSIDER CONERO, etc. which are optinal available.

Dimensions Width head A: 120 mm Height head B: 85 mm Stem length long, center
- center: 120 mm Stem length short, center
- center: 75 mm Variants 301-175
- Long 301-176
- Short Scope of delivery 1 pc. handlebar end mirror Reducing rings for 1 inch & 7/8 inch





...

SHIN YO STRAIGHT handlebar end mirror, E-approved. The STRAIGHT is a trendy &, due to its plastic head, lightweight mirror. It is suitable for handlebars with a diameter of 7/8 inch & 1 inch. The mirror can be used on the left & right & is available in a short or long version. You can mount the mirror either with the supplied reducing sleeves directly on the handlebar or on the special handlebar end weights HIGHSIDER DOT, HIGHSIDER CURVE, HIGHSIDER CONERO, etc. which are optinal available.

Dimensions Width head A: 120 mm Height head B: 85 mm Stem length long, center
- center: 120 mm Stem length short, center
- center: 75 mm Variants 301-175
- Long 301-176
- Short Scope of delivery 1 pc. handlebar end mirror Reducing rings for 1 inch & 7/8 inch





...

SHIN YO STRAIGHT fairing mirror, E-approved. Look forward to this trendy fairing mirror with a lightweight plastic rearview mirror housing & an aluminum mirror arm. A corrosion-resistant stainless steel ball clamp allows for precise adjustment of the mirror. For mounting to the fairing you need an adapter set, please order the required adapter set separately, this is available in different lengths & variants. The mirror can be used on the left & right & has an E-mark, which allows the mirror to be used legally in road traffic.

Dimensions Width head: 120 mm Height head: 85 mm Total

Width: 185 mm Total

Height: 160 mm Stem length: 144 mm, joint 33 mm Blind hole: M6 x 1.25 mm Scope of delivery 1 piece fairing mirror 301-174 Note Please order adapter set for fairing separately





...

SHIN YO STRAIGHT mirror, E-approved. The rearview mirror housing is molded in plastic & a corrosion-resistant stainless steel ball clamp allows precise adjustment of the lightweight mirror in a trendy design. The mirror head is supported by an aluminum arm, which is screwed classically into the handlebar fitting. The screw connection with the handlebar fittings is made via an adapter (M10x 1.25) & is therefore suitable for most models on the market. For Yamaha models with left-hand thread is a corresponding adapter included. Can be used for left & right side.

Dimensions Width head: 120 mm Height head: 85 mm Total

Width: 185 mm Total

Height: 160 mm Stem length: 144 mm, joint 33 mm Blind hole: M8 x 1.25 mm Adapter: M10 x 1.25 mm Scope of delivery 1 piece mirror 301-173 Yamaha adapter with left-hand thread M10x 1.25





...

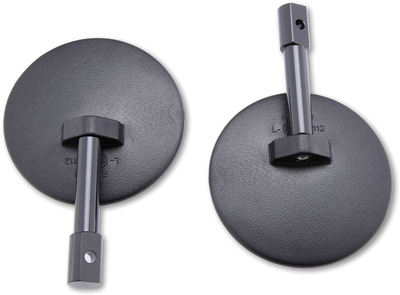

SHIN YO handlebar end mirror SUPERBIKE 2. Black round mirror with convex glass, straight short stem & adjustable joint. E-approved.

Dimensions Glass diameter: 94 mm Head diameter: 99.5 mm Stem length: 65 mm (to center of mounting hole) Height with stem: 140 mm Through hole for M6 Scope of delivery 1 pair of handlebar end mirrors 301-078 Note An approx. 10 mm longer screw must be used to screw the mirror onto the existing handlebar weights

...

SHIN YO tail light with brake light function & reflector, with red glass, with license plate light, E-approved.

Dimensions

...

SHIN YO LED taillight / brake light combination SUPERFLAT. Very flat tail light with brake & driving light function, clear glass & tabs for mounting, E-approved.

Dimensions Length: 95 mm

Width: 25 mm

Depth: 10.5 mm Scope of delivery 1 piece taillight 255-082





...

SHIN YO handlebar end mirror SURFACE, E-approved. Shapely & high quality universal handlebar end mirror made from aluminum, sandblasted, black satin finish. The ball head allows an individual adjustment. Mountable either with the supplied reducing sleeves directly on the steering tube or on optionally available handlebar ends with handlebar end mirror mount. The mirror can be mounted on the right & left as well as standing up or hanging down. Handlebar end mirrors give motorcycles a very special look. With hanging handlebar end mirrors, many a well-behaved bike suddenly gets a slightly aggressive touch. With an attractive price-performance ratio, you can easily customize your bike to your liking with accessories from SHIN YO.

Dimensions Height head: 91.5 mm Width head: 115 mm Total

Width: 80 mm Total

Height: 185 mm Stem length: approx. 65 mm from the head to the bend & approx. 115 mm to the end of the clamp Weight: 0, 230kg Scope of delivery 1 pc. handlebar end mirror 301-086 Reduc...





...

SHIN YO mirror SURFACE, E-approved. Shapely & high quality universal mirror made from aluminum, sandblasted, black satin finish. The adjustable stem & ball head allow individual adjustment. The mirror can be mounted on the right & left.

Dimensions Width head: 115 mm Width head: 91.5 mm Blind hole: M8 x 1.25 mm Adapter: M10 x 1.25 mm Scope of delivery 1 piece mirror 301-084

...

SHIN YO LED fairing turn signal SWIFT. The latest lighting technology in a robust plastic housing in black with clear honeycomb lens. The turn signal is attached with adhesive film & is E-approved for front & rear.

Dimensions

Width: 36 mm

Height: 18, 5 mm

Depth: 44.5 mm Scope of delivery 1 pair of fairing turn signals 203-065







...
