SHIN YO Rectangular Double Headlight. High beam & fog light with black metal housing & transparent glass. The holder is with oblong holes & can be mounted hanging or standing, E-approved.

Dimensions

Width: 150 mm

Height: 51 mm

Depth: 71 mm Scope of delivery 1 piece of high beam & fog light 224-336 with holder Note No main headlight approval!







...

SHIN YO Reno 2, 7 inch main headlight with LED position light in lamp ring. H4 prismatic reflector in a black or chrome metal housing with M8 side mount, E-approved. Technical data Housing diameter: 200 mm Headlight insert diameter: 178 mm Housing

Depth: 160 mm Distance of mounting holes (center
- center): 170 mm Distance of mounting hole (center) to end of housing: approx. 90 mm Side mount: with M8 threaded bolt Connections 3-way connector for H4 use Green = ground (-) White = low beam (+) Blue = high beam (+) LED ring for front position light Brown = Plus (+) Black = Ground (-) Variants 223-144
- Glossy black 223-145
- Chrome plated Scope of delivery 1 piece main headlight




...

SHIN YO Reno 2, 7 inch main headlight with LED position light in lamp ring. H4 prismatic reflector in a black or chrome metal housing with M8 side mount, E-approved. Technical data Housing diameter: 200 mm Headlight insert diameter: 178 mm Housing

Depth: 160 mm Distance of mounting holes (center
- center): 170 mm Distance of mounting hole (center) to end of housing: approx. 90 mm Side mount: with M8 threaded bolt Connections 3-way connector for H4 use Green = ground (-) White = low beam (+) Blue = high beam (+) LED ring for front position light Brown = Plus (+) Black = Ground (-) Variants 223-144
- Glossy black 223-145
- Chrome plated Scope of delivery 1 piece main headlight




...

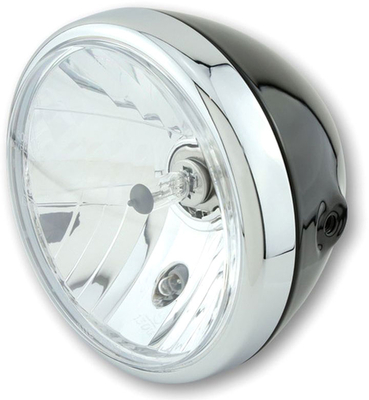

SHIN YO Reno, round 7 inch main headlight for side mount. Thanks to its puristic, timeless design, it is a highlight for many motorcycles. The headlight has an H4- insert with high beam & parking light function as well as a symmetrical prism reflector & clear plastic glass, E-approved.

Dimensions Housing diameter: 200 mm Headlight insert diameter: 178 mm Depth of housing: 160 mm Distance of mounting holes (center
- center): 170 mm Distance of mounting hole (center) to end of housing: approx. 90 mm Side mount: with M8 threaded bolt Variants 223-073
- black/chrome plated 223-130
- Black 223-131
- Chrome plated Scope of delivery 1 piece main headlight Note Use symmetrical, approved for right
- & left-hand traffic.






...

SHIN YO Reno, round 7 inch main headlight for side mount. Thanks to its puristic, timeless design, it is a highlight for many motorcycles. The headlight has an H4- insert with high beam & parking light function as well as a symmetrical prism reflector & clear plastic glass, E-approved.

Dimensions Housing diameter: 200 mm Headlight insert diameter: 178 mm Depth of housing: 160 mm Distance of mounting holes (center
- center): 170 mm Distance of mounting hole (center) to end of housing: approx. 90 mm Side mount: with M8 threaded bolt Variants 223-073
- black/chrome plated 223-130
- Black 223-131
- Chrome plated Scope of delivery 1 piece main headlight Note Use symmetrical, approved for right
- & left-hand traffic.






...

SHIN YO Turn Signal ROCK, Halogen turn signal with rubus plastic housing in black & yellow glass, E-approved.

Dimensions

...

SHIN YO LED turn signal Rock. The latest lighting technology in a robust plastic housing, E-approved.

Dimensions

...

SHIN YO LED running light turn signal RUN. The modern turn signal with built-in running light system, lightweight plastic housing & tinted glass has the latest lighting technology. When flashing, the individual LEDs light up one after another from the inside to the outside, creating a wiping effect like current car models. The trendy running light is a real eye-catcher with which your vehicle stands out in traffic & thus increases road safety. Even with the tinted glass, the turn signal is well perceived by the running light in road traffic. A rubber mounted stem reduces vibration & ensures longer life of the bulb. The turn signal is E-approved for front & rear.

Dimensions

Width: 70 mm

Height: 20 mm

Depth: 23 mm Width (with rubber stem 12 mm): 82 mm Threaded bolt: M 8 Connections Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of running light turn signals 203-027







...

SHIN YO 7 inch headlight Santa Fe, E-approved. The popular main headlight with its classic look in hemisphere shape makes the pig headlight the perfect part for all conversion projects. The headlight is also robust & easy to install. Technical data Bulb H4 12V 60/55W With parking light Metal housing Clear glass (prismatic reflector) Side mount

Dimensions Insert diameter: 178 mm Housing diameter: 205 mm

Depth: 150 mm Depth from thread: 100 mm Thread: M6 Variants 223-191
- Matte black 223-192
- Black Scope of delivery 1 piece headlight Bulb





...

SHIN YO LED 3in 1 tail light, brake light, turn signal SCURO. The latest lighting technology in black metal housing & heavily tinted glass. Very bright LED turn signal with integrated tail light & COB technology (Chip On Board). Due to the new LED chip embedding for high-power LEDs, a very high luminance is achieved with currently the best possible efficiency & service life. In addition, higher light values can be achieved than with conventional LEDs. An optical highlight on every motorcycle, E-approved.

Dimensions Approx. 43 x 58 x 20 mm M8 x 1.25 threaded bolt Connections Yellow cable = tail light (+) Red cable = brake light (+) Blue cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of tail light, brake light, turn signals

...
