SHIN YO Led turn signal PICCO. State-of-the-art lighting technology packed into extremely small

Dimensions. A visual

...

SHIN YO Led turn signal PICCO. State-of-the-art lighting technology packed into extremely small

Dimensions. A visual

...

SHIN YO PONZA handlebar end mirror, E-approved. Universal handlebar end mirror with a round plastic head attached to a short, straight aluminum style that is only as long as necessary. The stylized turbine design on the back of the mirror head gives the SHIN YO PONZA handlebar end mirror yet another shine. The ball head allows for individual adjustment. The aluminum clamp is clamped directly to the 1 inch or 7/8 inch steering tube. In addition, a clamp on a suitable handlebar weight is possible. Through a joint on the clamp, there are additional adjustment options for better visibility. The mirror can be mounted right & left as well as standing up or hanging down.

Dimensions Width head: 101 mm Height head: 101 mm Total

Width: 120 mm total

Height: 140 mm Weight: 160 gr. with mounting kit Scope of delivery 1 pc. handlebar end mirror 301-115 Reducing rings for 1 inch (25.4 mm) & 7/8 inch (22 mm)





...

SHIN YO fairing mirror RACE. The black mirror excellently emphasizes the racing look on sport bikes & super sport bikes. The bracket with a 55 mm wide slotted hole allows an adjustable & universal mounting.

Dimensions Head

Width: 105 mm Head

Height: 60 mm Stem length: 120 mm Screw length: 5 mm Scope of delivery 1 pair of fairing mirrors 301-341 Note Not for use in road traffic! Only for show & racing purposes! No ABE! Without homologation.





...

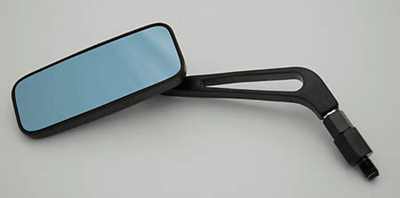

SHIN YO aluminum mirror. High quality finished, handlebar mirror with a rectangular head & a blue tinted mirror glass for optimum glare protection. The mirror arm is provided with a large recess.

Dimensions Head

Width: 120 mm Head

Height: 50 mm Stem length: 120 mm Variants 301-530
- Black 301-531
- Chrome plated Scope of delivery 1 pair of handlebar mirrors 2x M10 right-hand thread adapter 1x M10 left-hand thread adapter for Yamaha Note Not for use in road traffic! Only for show & racing purposes! No ABE! Without homologation.







...

SHIN YO universal mirror RAVENNA with LED turn signal, black, E-approved.

Dimensions Mirror surface: 170 x 90 mm

...

SHIN YO Universal mirror RAVENNA. Sporty cut handlebar mirror in black. Due to the large mirror surface, the model offers a good view to the rear, E-approved.

Dimensions Head

Width: 170 mm Head

Height: 90 mm Stem length, head to bend: 110 mm Stem length, bend to center of thread: 40 mm M10 thread Scope of delivery 1 pair of universal mirrors 301-095





...

SHIN YO Rectangular Double Headlight. High beam & fog light with black metal housing & transparent glass. The holder is with oblong holes & can be mounted hanging or standing, E-approved.

Dimensions

Width: 150 mm

Height: 51 mm

Depth: 71 mm Scope of delivery 1 piece of high beam & fog light 224-336 with holder Note No main headlight approval!







...

SHIN YO Reno 2, 7 inch main headlight with LED position light in lamp ring. H4 prismatic reflector in a black or chrome metal housing with M8 side mount, E-approved. Technical data Housing diameter: 200 mm Headlight insert diameter: 178 mm Housing

Depth: 160 mm Distance of mounting holes (center
- center): 170 mm Distance of mounting hole (center) to end of housing: approx. 90 mm Side mount: with M8 threaded bolt Connections 3-way connector for H4 use Green = ground (-) White = low beam (+) Blue = high beam (+) LED ring for front position light Brown = Plus (+) Black = Ground (-) Variants 223-144
- Glossy black 223-145
- Chrome plated Scope of delivery 1 piece main headlight




...

SHIN YO Reno 2, 7 inch main headlight with LED position light in lamp ring. H4 prismatic reflector in a black or chrome metal housing with M8 side mount, E-approved. Technical data Housing diameter: 200 mm Headlight insert diameter: 178 mm Housing

Depth: 160 mm Distance of mounting holes (center
- center): 170 mm Distance of mounting hole (center) to end of housing: approx. 90 mm Side mount: with M8 threaded bolt Connections 3-way connector for H4 use Green = ground (-) White = low beam (+) Blue = high beam (+) LED ring for front position light Brown = Plus (+) Black = Ground (-) Variants 223-144
- Glossy black 223-145
- Chrome plated Scope of delivery 1 piece main headlight




...
