SHIN YO Turn Signal MICRO FLASH. Mini turn signal with plastic housing & tinted glass, E-approved.

Dimensions Approx.

...

SHIN YO Turn Signal MICRO FLASH. Mini turn signal with plastic housing & tinted glass, E-approved.

Dimensions Approx.

...

SHIN YO LED license plate light Micro, without housing, with E-mark. This LED license plate light can be placed inconspicuously due to its extremely small design. Can be glued or screwed on. This allows many mounting positions for the legally required complete illumination of the license plate. The license plate light has an E-mark & requires no further papers. It can therefore be installed without further ado, according to the mounting regulations.

Dimensions Height x width x depth approx. 7 x 45 x 12 mm Screw length: 15 mm, thread length: 3 mm Cable length: 55 cm Weight: 8 gr. Connections Red = Plus Black = Minus Open cable end without connector Three 12 Volt / 0, 3 Watt LEDs Scope of delivery 1 piece license plate light 256-033 Screws & adhesive pad

...

SHIN YO fog light, with black metal housing & bracket with slotted holes for lower or upper mounting, E-approved.

Dimensions

...

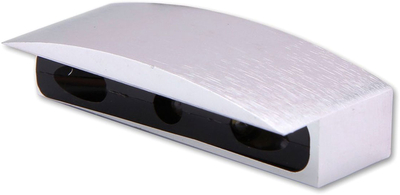

SHIN YO Micro LED license plate light in Aluminium housing, E-approved.

Dimensions

Width:



...

SHIN YO LED turn signal MICRO-OVAL, E-approved for front & rear. Very inconspicuous & tinted body made from plastic. A bright LED turn signal suitable for laminating or gluing.

Dimensions Approx. 17 x 15 x 11 mm Cable length 385 mm Connections Yellow = Indicator (+) Black = Ground (-) Scope of delivery 1 pair of turn signals 204-154 4 pieces of heat shrink tubing

...

SHIN YO LED taillight / brake light combination MILES. The latest lighting technology in a sturdy CNC machined metal housing with modern oval holes in the housing. Black anodized with red glass, license plate light & license plate holder, E-approved.

Dimensions Diameter 71.5 mm Depth 32 mm

Dimensions holder

Width: 178 mm

Height: 27, 5 mm Scope of delivery 1 piece taillight / brake light combination 255-155







...

SHIN YO fog light MINI-ELLIPSOID. The smallest ellipsoid fog light in the accessories with blue shimmering lens in black aluminum housing, E-approved.

Dimensions Diameter 36 mm length: 79, 3 mm

Width: 64 mm

Height: 51 mm (measured without holder) Bulb: 12V H3 55W Scope of delivery 1 piece fog light 222-217 with holder





...

SHIN YO Power LED tail light / brake light combination Mini Oval. Mini taillight with a 12V, 1.3W / 0.54W power led, with a white frosted reflector, E-approved.

Dimensions

Width: 54 mm

Height: 20 mm

Depth: 22 mm Distance of the bolts: 37 mm Mounting bolts M5 Connections Green = ground Brown = driving light Green/yellow = brake light Variants 255-046
- Black Clear 255-047
- Black Red Scope of delivery 1 piece tail light / brake light combination Note Without license plate light









...

SHIN YO mini fairing turn signal. Robust plastic housing in black, E-approved for front.

Dimensions Length: 92 mm

...
