SHIN YO 5 3/4 inch main headlight with parking light for side mount. H4 main headlight in a matte black metal housing with adjustable inner ring & ribbed glass. The headlight has an asymmetrical reflector
- approved for right-hand traffic only
- & parking light, E-approved.

Dimensions Housing diameter: 165 mm Total depth including curved glass: 145 mm Mounting: side mount M8 Housing

Depth: approx. 75 mm (center of side mounting holes to rear). Illuminant: H4, 12V 60/55 W Connections Black cable = ground parking light (-) Brown cable = parking light (+) White cable = low beam (+) Blue cable = high beam (+) Green cable = ground (-) Variants 223-014
- Black 223-015
- Chrome plated Scope of delivery 1 piece headlight including bulb Notes Asymmetrical reflectors are only approved for right-hand traffic.







...

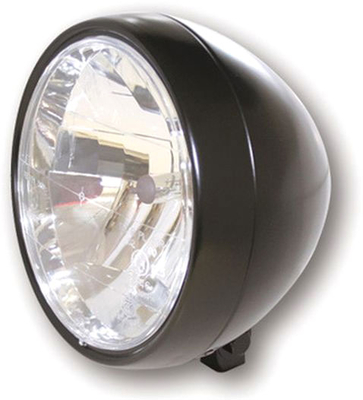

SHIN YO 6 1/2 inch main headlight. Asymmetrical headlight with metal housing & M8 side mount holes or bottom mount. Clear lens plastic lens. H4 insert with parking light, E-approved.

Dimensions Housing diameter: 190 mm

Depth: 157 mm Diameter between the side mounting holes: 170 mm Variants 223-052
- Matt-Black, side mount 223-078
- Black, side mount 223-079
- Black/chrome, side mount 223-053
- Black, bottom mount 223-054
- Chrome, bottom mount Scope of delivery 1 piece main headlight Note Without H4 bulb Asymmetrical reflector, only approved for right-hand traffic








...

SHIN YO 6 1/2 inch main headlight. Asymmetrical headlight with metal housing & M8 side mount holes or bottom mount. Clear lens plastic lens. H4 insert with parking light, E-approved.

Dimensions Housing diameter: 190 mm

Depth: 157 mm Diameter between the side mounting holes: 170 mm Variants 223-052
- Matt-Black, side mount 223-078
- Black, side mount 223-079
- Black/chrome, side mount 223-053
- Black, bottom mount 223-054
- Chrome, bottom mount Scope of delivery 1 piece main headlight Note Without H4 bulb Asymmetrical reflector, only approved for right-hand traffic








...

SHIN YO 6 1/2 inch main headlight. Asymmetrical headlight with metal housing & M8 side mount holes or bottom mount. Clear lens plastic lens. H4 insert with parking light, E-approved.

Dimensions Housing diameter: 190 mm

Depth: 157 mm Diameter between the side mounting holes: 170 mm Variants 223-052
- Matt-Black, side mount 223-078
- Black, side mount 223-079
- Black/chrome, side mount 223-053
- Black, bottom mount 223-054
- Chrome, bottom mount Scope of delivery 1 piece main headlight Note Without H4 bulb Asymmetrical reflector, only approved for right-hand traffic








...

SHIN YO 6 1/2 inch main headlight. Asymmetrical headlight with metal housing & M8 side mount holes or bottom mount. Clear lens plastic lens. H4 insert with parking light, E-approved.

Dimensions Housing diameter: 190 mm

Depth: 157 mm Diameter between the side mounting holes: 170 mm Variants 223-052
- Matt-Black, side mount 223-078
- Black, side mount 223-079
- Black/chrome, side mount 223-053
- Black, bottom mount 223-054
- Chrome, bottom mount Scope of delivery 1 piece main headlight Note Without H4 bulb Asymmetrical reflector, only approved for right-hand traffic








...

SHIN YO high beam + low beam set. Main headlight set with parking light & chrome or black metal housing with side mount, E-approved.

Dimensions 90 mm (3 1/2 inch) Diameter 218 mm Depth from thread 60 mm Bulb 1x H4 12 Volt 55/60 Watt 1x H7 12 Volt 55 Watt Variants 223-334
- Chrome plated 223-336
- Black Scope of delivery 1 set high beam + low beam



...

SHIN YO high beam + low beam set. Main headlight set with parking light & chrome or black metal housing with side mount, E-approved.

Dimensions 90 mm (3 1/2 inch) Diameter 218 mm Depth from thread 60 mm Bulb 1x H4 12 Volt 55/60 Watt 1x H7 12 Volt 55 Watt Variants 223-334
- Chrome plated 223-336
- Black Scope of delivery 1 set high beam + low beam



...

7 inch H4 headlight HD style TYPE 1. Stylish-innovative headlight in a puristic design with parking light function & a round, clear glass. The oval metal housing & features an H4 insert & a symmetrical prism reflector.

Includes:: holder for lower mounting, E-approved. The bright joy
- give your bike your distinctive style! The fancy design & perfect technology of the SHIN YO headlight series will definitely make you a highlight!

Dimensions Housing diameter: 220 mm Headlight insert diameter: 178 mm

Depth: 155 mm Distance of the mounting holes on the bracket (center
- center): 65 mm Variants 223-176
- Chrome plated 223-177
- Glossy black Scope of delivery 1 piece headlight









...

7 inch H4 headlight HD style TYPE 1. Stylish-innovative headlight in a puristic design with parking light function & a round, clear glass. The oval metal housing & features an H4 insert & a symmetrical prism reflector.

Includes:: holder for lower mounting, E-approved. The bright joy
- give your bike your distinctive style! The fancy design & perfect technology of the SHIN YO headlight series will definitely make you a highlight!

Dimensions Housing diameter: 220 mm Headlight insert diameter: 178 mm

Depth: 155 mm Distance of the mounting holes on the bracket (center
- center): 65 mm Variants 223-176
- Chrome plated 223-177
- Glossy black Scope of delivery 1 piece headlight









...

SHIN YO mini turn signal Imola 1. Mini turn signal with sturdy plastic housing in black, with yellow glass, E-approved.



...
