SHIN YO MODUL ELLIPSOID LED turn signal with 3 very bright SMDs, E-approved. Very inconspicuous & tinted body made from plastic with SMD LED technology. This durable & powerful LED technology with specially adapted lens is brighter than normal LEDs with the same power consumption & allows an extremely small & flat design. You will be surprised how much power & brightness comes out of small SMD LEDs. The flasher is suitable for laminating or gluing in place.

Dimensions

Width: 17 mm

Height: 8 mm

Depth: 8.5 mm Connections Yellow = Turn signal Black = Ground Scope of delivery 1 pair of LED turn signal 204-113







...

SHIN YO FERRARA handlebar end mirror. Beautiful mirror made from black aluminum. Fine, milled grooves on the oval head emphasize the high quality workmanship & the great look. Suitable for 1 inch & 7/8 inch handlebars.

Dimensions Head

Width: 110 mm Head

Height: 65 mm Stem length, head to bend: 70 mm Stem length, bend to clamp end: 115 mm Scope of delivery 1 pc. handlebar end mirror 301-736 Reducing rings for 1 inch & 7/8 inch Note Not for use in road traffic! Only for show & racing purposes! No ABE! Without homologation.





...

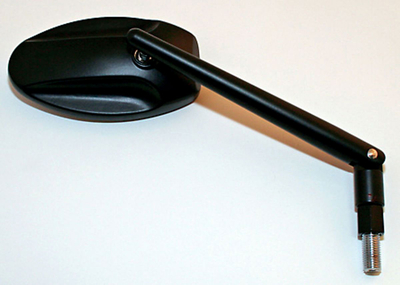

SHIN YO FERRARA universal mirror. Glossy black anodized aluminum handlebar mirror. Fine, milled grooves on the oval head underline the high-quality workmanship & the great look. A joint on the mirror arm offers additional adjustment options for the best rear view. Suitable for the left & right side.

Includes:: an extra adapter with an M10 x 1.25 mm left-hand thread for Yamaha.

Dimensions Head

Width: 120 mm Head

Height: 60 mm Stem length, head to joint: 150 mm Stem length, joint to threaded bolt: 30 mm threaded bolt: M10 x 1, 25 mm Scope of delivery 1 piece universal mirror 301-731 Note Without homologation! Not for use in road traffic! Only for show & racing purposes!







...

SHIN YO Ferrara handlebar end mirror. Beautiful mirror made from black Alu Minium. A bevel worked into the clamp underlines the high-quality look. Fits 1 inch (25.4 mm) & 7/8 inch (22 mm) handlebars.

Dimensions Head

Width: 110 mm Head

Height: 65 mm Stem length, head to bend: 70 mm Stem length, bend to end of clamp: 115 mm Variants 301-726
- Chrome plated 301-727
- Black Scope of delivery 1 pc. handlebar end mirror Reducing rings for 1 inch & 7/8 inch Note Not for use in road traffic! Only for show & racing purposes! No ABE! Without homologation.







...

SHIN YO Ferrara handlebar end mirror. Beautiful mirror made from black Alu Minium. A bevel worked into the clamp underlines the high-quality look. Fits 1 inch (25.4 mm) & 7/8 inch (22 mm) handlebars.

Dimensions Head

Width: 110 mm Head

Height: 65 mm Stem length, head to bend: 70 mm Stem length, bend to end of clamp: 115 mm Variants 301-726
- Chrome plated 301-727
- Black Scope of delivery 1 pc. handlebar end mirror Reducing rings for 1 inch & 7/8 inch Note Not for use in road traffic! Only for show & racing purposes! No ABE! Without homologation.







...

SHIN YO Ferrara universal mirror. Handlebar mirror made from Alu Minium with an oval head. A joint on the mirror arm provides additional adjustment for best rear view. Suitable for left & right side.

Includes:: an extra adapter with a M10 x 1.25 mm left-hand thread for Yamaha.

Dimensions Head

Width: 120 mm Head

Height: 60 mm Stem length, head to joint: 150 mm Stem length, joint to threaded bolt: 30 mm Threaded bolt: M10 x 1, 25 mm Variants 301-724
- Chrome plated 301-725
- Black Scope of delivery 1 piece universal mirror Adapter with M10 x 1, 25 mm left hand thread for Yamaha Note Not for use in road traffic! Only for show & racing purposes! No ABE! Without homologation.









...

SHIN YO LED taillight, brake light, turn signal unit FINELINE with black plastic housing & rubber stem, E-approved for rear. The FINELINE with tinted glass has a Light Guide System installed with 4 SMD LEDs. For all those who have a high demand on their new illuminant & rely on light color & brightness for lighting. You will be surprised how much power & brightness comes from this future-oriented technology. The Light Guide System is designed to transport light from the light source to a point with minimal loss. This creates a beautiful lighting effect without seeing the LEDs.

Dimensions

Width: 58 mm Total width (rubber stem 12 mm): 70 mm

Height: 17 mm

Depth: 25 mm Threaded bolt: M 8x 1, 25 Connections Yellow cable = rear light Blue cable = turn signal Red cable = brake light Black cable = ground (-) Scope of delivery 1 pair tail light, brake light, turn signal 254-174







...

SHIN YO LED turn signal FINELINE, with black plastic housing & rubber stem, E-approved for front & rear. The FINELINE with tinted glass has a Light Guide System installed with 4 SMD LEDs. For all those who have a high demand on their new illuminant & rely on light color & brightness for lighting. You will be surprised how much power & brightness comes from this future-oriented technology. The light guide system was developed to transport the light from the light source to a point with only minimal loss. This creates a beautiful lighting effect without seeing the actual LEDs.

Dimensions

Width: 58 mm Total width (rubber stem 12 mm): 70 mm Height C: 17 mm Depth D: 25 mm Threaded bolt: M 8x 1, 25 Connections Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 Pair turn signals 204-174



...

SHIN YO LED turn signal / position light FINELINE, E-approved for front, with black plastic housing & rubber stem. The FINELINE with tinted glass has a Light Guide System installed with 4 SMD LEDs. For all those who have a high demand on their new illuminant & set on light color & brightness in the lighting. You will be surprised how much power & brightness comes from this future-oriented technology. The Light-Guide system is designed to transport the light from the light source to a point with minimal loss. This creates a beautiful lighting effect without seeing the LEDs.

Dimensions

Width: 58 mm Total width (rubber stem 12 mm): 70 mm

Height: 17 mm

Depth: 25 mm Threaded bolt: M 8x 1, 25 Connections Yellow cable = turn signal (+) Black cable = ground (-) White cable = position light (+) Scope of delivery 1 pair turn signal/position light 204-175







...

SHIN YO LED sequence blinker FLINT, black, tinted glass, E-approved. The modern turn signal with built-in running light system, lightweight plastic housing & tinted glass has the latest lighting technology. When flashing, the individual LEDs light up one after the other from the inside to the outside, creating a wiping effect like current passenger car models. The trendy running light is a real eye-catcher with which your vehicle stands out in traffic & thus increases road safety. Even with the tinted glass, the turn signal is well perceived by the running light in road traffic. The turn signal is suitable for front & rear.

Dimensions Width A: 67 mm Width B: 76.5 mm

Height: 11, 5 mm

Depth: 20 mm Threaded bolt: M 8 Weight: 19 gr. Connections Power consumption: 12.V 2.7 W Red cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of sequence flasher 203-028





...
