SHIN YO 6 1/2 inch cruiser chrome headlight with shade. The popular main headlight with its classic style in hemisphere shape makes the pig headlight the perfect part for all conversion projects. The tested headlight is also robust & easy to install. Technical data Metal housing Prismatic reflector Clear glass H4 insert with parking light H4 12V 60/55W

Dimensions Total housing diameter: approx. 190 mm Diameter headlight insert: 165 mm Depth incl. shade: 160 mm Depth without shade (bottom): 150 mm Variants 223-050
- chrome plated, side mounting 223-051
- chrome plated, bottom mounting For side mounting Depth to rear from mounting hole: 90 mm Mounting hole: M8 Distance between mounting holes: approx. 170 mm Scope of delivery 1 piece main headlight



...

SHIN YO CRUMB LED built-in turn signal, E-approved. Very inconspicuous body made from plastic with SMD LED technology. This durable & powerful LED technology with specially adapted lens is brighter than normal LEDs with the same power consumption & allows an extremely small & flat design. You will be surprised how much power & brightness comes out of the two small SMD LEDs. The flasher is suitable for front & rear & can be installed vertically or horizontally.

Dimensions

Height: 8 mm

Width: 13 mm

Depth: 7.5 mm Connections Power consumption: 12.5V Yellow = Indicator (+) Black = Ground (-) Scope of delivery 1 pair of LED build-in turn signals 203-077







...

SHIN YO LED Turn Signal CRUMB. Super small & discreet LED turn signal in black plastic housing with lightly tinted glass. The powerful LED technology ensures particularly bright & eye-catching turn signals on your motorcycle. The turn signals can be installed front & rear, E-approved.

Dimensions

Width: 16 / 24.5 mm

Height: 11 mm

Depth: 10.5 mm Threaded bolt: M6 Rubber handle: 8 mm Weight: 13 gr. Connections Power input: 12 V Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of LED turn signals 203-078







...

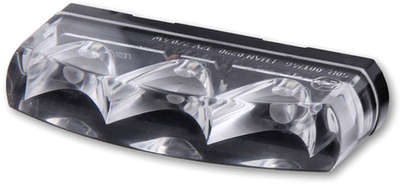

SHIN YO Led taillight / brake light combination Crystal. With 3 very bright power led s, black base plate, E-approved.



...

SHIN YO Led taillight / brake light combination Crystal. With 3 very bright power led s, black base plate, E-approved.



...

SHIN YO main headlight CYCLOPS. Innovative ellipsoid main headlight with electronic aperture for low, & high beam. High quality black matte metal housing with M8 side mount. This headlight with a LED position light ring lets your vehicle shine in a new light, E-approved.

Dimensions Diameter: 190 mm

Depth: 160 mm From mounting point to rear housing about 90 mm Bulb: H3 bulb 12V 55W, PK 22S Connections Main headlight 3-way connector for ellipsoid use with shutter green = ground (-) White = low beam (+) Blue = high beam (+) LED ring for front position light Brown = Plus (+) Black = Ground (-) Scope of delivery 1 piece main headlight 223-150



...

SHIN YO LED turn signal MICRO DISC. The latest lighting technology in a robust round plastic housing & transparent glass, E-approved.

Dimensions 18 x 37 mm Threaded bolt: M6 x 16 mm Connections Black = Ground Yellow = Turn signal Scope of delivery 1 pair of LED turn signals 203-739

...

SHIN YO 6 1/2 inch main headlight El Paso, chrome or black selectable, E-approved. The popular main headlight with a spherical shape tapering to the rear & its classic appearance makes the headlight the perfect part for all conversion projects. The tested headlight is also robust & easy to install. Technical data Bulb H4 12V 60/55W Asymmetrical headlight With parking light Metal housing Clear glass plastic lens Mounting point: bottom Angle adjustable

Dimensions Insert diameter: 165 mm Housing diameter: 180 mm

Depth: 140 mm Retaining bolt: M10 Variants 223-074
- Glossy black 223-075
- Chrome plated Scope of delivery 1 piece main headlight, including bulb





...

SHIN YO 6 1/2 inch main headlight El Paso, chrome or black selectable, E-approved. The popular main headlight with a spherical shape tapering to the rear & its classic appearance makes the headlight the perfect part for all conversion projects. The tested headlight is also robust & easy to install. Technical data Bulb H4 12V 60/55W Asymmetrical headlight With parking light Metal housing Clear glass plastic lens Mounting point: bottom Angle adjustable

Dimensions Insert diameter: 165 mm Housing diameter: 180 mm

Depth: 140 mm Retaining bolt: M10 Variants 223-074
- Glossy black 223-075
- Chrome plated Scope of delivery 1 piece main headlight, including bulb





...

SHIN YO MODUL ELLIPSOID LED turn signal with 3 very bright SMDs, E-approved. Very inconspicuous & tinted body made from plastic with SMD LED technology. This durable & powerful LED technology with specially adapted lens is brighter than normal LEDs with the same power consumption & allows an extremely small & flat design. You will be surprised how much power & brightness comes out of small SMD LEDs. The flasher is suitable for laminating or gluing in place.

Dimensions

Width: 17 mm

Height: 8 mm

Depth: 8.5 mm Connections Yellow = Turn signal Black = Ground Scope of delivery 1 pair of LED turn signal 204-113







...
