SHIN YO 4 1/2 inch chrome headlight. The popular headlight with its classic style in hemisphere shape makes the pig headlight the perfect part for all conversion projects. The E-approved headlight is also robust & easy to install. Technical data Metal housing Bilux bulb 12 Volt 35/35 Watt Mounting point: side mount

Dimensions housing diameter: 128 mm

Depth: 96 mm Depth without glass: 90 mm Depth from side mount: 55 mm Scope of delivery 1 piece headlamp 222-090



...

SHIN YO LED turn signal BLOCK, E-approved. The latest lighting technology in a dynamic metal housing in black. Very bright LED turn signal with tinted glass & COB (Chip On Board) technology. The semiconductor chip without housing is glued directly to a circuit board & allows a smaller design & better heat dissipation. A visual highlight on any type of motorcycle.

Dimensions Width A: 33 mm Width B: 48 mm

Height: 20 mm

Depth: 21 mm Threaded bolt: M8 x 1.25 mm Connections Yellow cable = turn signal (+) Black cable = ground (-) Scope of delivery 1 pair of turn signals 204-041





...

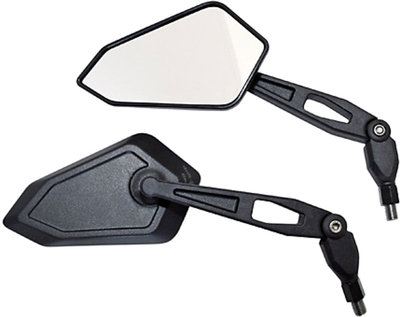

SHIN YO BOOSTER 2 mirror, E-approved. Corners & edges are the hallmark of the SHIN YO BOOSTER. The matte black aluminum mirror has a convex glass & a second joint in the stem for additional adjustment options & the best view to the rear. The smaller mirror head distinguishes this model from its big brother, SHIN YO BOOSTER.

Dimensions head

Width: 130 mm Head

Height: 86 mm Stem length, head to bend: 140 mm Stem length, bend to center thread: 43 mm M10 right-hand thread Scope of delivery 1 pair of mirrors 301-145 Adapter with M10 left-hand thread for Yamaha





...

SHIN YO BOOSTER 2 mirror, E-approved. Corners & edges are the hallmark of the SHIN YO BOOSTER. The black handlebar mirror has a convex glass & a second joint in the stem for additional adjustment options & the best view to the rear. The smaller mirror head distinguishes this model from its big brother SHIN YO BOOSTER.

Dimensions head

Width: 130 mm Head

Height: 86 mm Handle length, head to bend: 140 mm Stem length, bend to center of thread: 43 mm Variants 301-142
- Black, M10 x 1.25 301-143
- Chrome plated, M8 Scope of delivery 1 pair of mirrors







...

SHIN YO BOOSTER 2 mirror, E-approved. Corners & edges are the hallmark of the SHIN YO BOOSTER. The black handlebar mirror has a convex glass & a second joint in the stem for additional adjustment options & the best view to the rear. The smaller mirror head distinguishes this model from its big brother SHIN YO BOOSTER.

Dimensions head

Width: 130 mm Head

Height: 86 mm Handle length, head to bend: 140 mm Stem length, bend to center of thread: 43 mm Variants 301-142
- Black, M10 x 1.25 301-143
- Chrome plated, M8 Scope of delivery 1 pair of mirrors







...

SHIN YO BOOSTER mirror, E-approved. Corners & edges are the hallmark of the SHIN YO BOOSTER. The black handlebar mirror has a convex glass & a second joint in the stem for additional adjustment & best rear view.

Dimensions Head

Width: 155 mm Head

Height: 89 mm Handle length, head to bend: 140 mm Stem length, bend to center thread: 43 mm Variants 301-140
- Black, M10 x 1.25 301-141
- Chrome plated, M8 Scope of delivery 1 pair of mirrors







...

SHIN YO LED taillight / brake light combination BOSTON. Black ABS base plate with license plate light & tinted glass, E-approved.

Dimensions

Width: 110 mm

Height: 27 mm

Depth: 62 mm Connections Yellow
- taillight Blue
- brake light Green
- ground Scope of delivery 1 piece tail light / brake light 255-042










...

SHIN YO 7 inch headlight British style, H4 insert with embossed glass. Puristically shaped headlight with high-gloss chrome-plated metal housing & ribbed glass for side mounting. The simple design is ideal for classic cars, roadsters & customized bikes. E-approved as a main headlight with parking light function.

Dimensions Housing diameter (at the same time hole spacing): 190 mm Headlight insert diameter: 176 mm Housing

Depth: 140 mm Distance between mounting holes & front edge of housing: approx. 47 mm Distance between mounting holes & housing end: approx. 80 mm Diameter cable guide: 3.5cm Variants 223-017
- Chrome-plated 223-019
- Black Scope of delivery 1 piece main headlight H4 insert & parking light bulb Please order bulb for main headlight separately





...

SHIN YO 7 inch headlight British style, H4 insert with embossed glass. Puristically shaped headlight with high-gloss chrome-plated metal housing & ribbed glass for side mounting. The simple design is ideal for classic cars, roadsters & customized bikes. E-approved as a main headlight with parking light function.

Dimensions Housing diameter (at the same time hole spacing): 190 mm Headlight insert diameter: 176 mm Housing

Depth: 140 mm Distance between mounting holes & front edge of housing: approx. 47 mm Distance between mounting holes & housing end: approx. 80 mm Diameter cable guide: 3.5cm Variants 223-017
- Chrome-plated 223-019
- Black Scope of delivery 1 piece main headlight H4 insert & parking light bulb Please order bulb for main headlight separately





...

SHIN YO turn signal BULLET FLAT, classic mini turn signal with chromed metal body, short stem & yellow glass, E-approved.



...
