The RAM-B-201-C, long double socket arm, has a socket at both ends that accommodate 1" / 25 mm ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball & socket connection. This socket technology allows for almost infinite adjustment & perfect viewing angles. The knob has a locking Acorn nut that prevents the mount from being removed from the socket. This feature allows for a secure mount while giving the ability to adjust your device without the ability to remove the device.

Dimensions Ball size B 1" / 25 mm Socket distance 5.31" / 135 mm Overall length 6" / 152 mm Weight capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr.

...

The RAM-B-349U

Includes:: a M10 x 1.25 pitch male thread connected to a 1" / 25 mm rubber ball. The threaded

...

The RAM-B-349-1U

Includes:: a M10 x 1.5 pitch male thread connected to a 1" / 25 mm rubber ball. The threaded

...

The RAM-B-201-U, medium double socket arm, has a socket at both ends that accommodate 1" / 25 mm ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball & socket connection. This socket technology allows for almost infinite adjustment & perfect viewing angles. The knob has a locking Acorn nut that prevents the mount from being removed from the socket. This feature allows for a secure mount while giving the ability to adjust your device without the ability to remove the device.

Dimensions Ball size B 1" / 25 mm Socket distance 3" / 76 mm Overall length 3.73" / 95 mm Weight capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr.

...

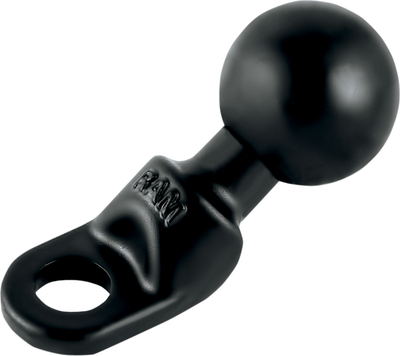

The RAM-B-252U marine-grade aluminum ball base consists of a 1" / 25 mm rubber ball & 2.25" x 0.875" base with 11 mm hole. This part is often used on motorcycles by attaching to the mirror frame. The main brand of bike for the RAM-B-252U is BMW. This part fits well on many handlebar pinchbolts with a washer (base is 5 mm thick). Features Features an 11 mm hole designed to attach to the mirror frame of motorcycles Included B size 1" / 25 mm RAM® rubber ball allows for connection to any B size RAM® double socket arm, ball & socket technology allows for near-infinite adjustability made from Powder-coated, marine-grade aluminum for durability & reliability in the most demanding marine environments

Dimensions Mounting hole 11 mm B size Ball 1" / 25 mm Weight capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr.

...

The RAP-S-KNOB3U consists of a 1/4"-20 female threaded security knob & matching key & replaces all knobs on 1" diameter B size arms & mounts. The RAP-S-KNOB3U offers the ideal amount of leverage to properly tighten your mount to prevent slippage in heavy chop or in extreme vibration environments. With an emphasis on aesthetics & function, the RAP-S-KNOB3U is low in profile & only adds a small amount of additional bulk to your system when compared to the standard knob included. At a fraction of the cost of currently available keyed locking knobs, the additional peace of mind & tamper resistance comes at a very affordable price. The RAP-S-KNOB3U is the perfect accessory for keeping your mounted electronic device safe from theft & tampering. ...

The RAM Quick-Grip™ device mount is capable of holding a broad range of electronic devices. The spring-loaded mechanism & the adjustable side keepers allow for a secure grip on your device. Whether it is a cell, GPS, blue tooth speaker or anything that will fit in the

Dimensions of the cradle, your electronics will be secure. Included B size 1" RAM® rubber balls allows for connection to any B size RAM® double socket arm, ball & socket technology allows for near-infinite adjustability. Features The mount is equipped with rubberized ball in 1" diameter for continuous adjustment & setting the perfect viewing angle Material Marine-grade aluminum High strength composite Cradle clamping

Dimensions Height range: 4.75"
- 5.75" / 12
- 14.5 cm Width range: 2.19"
- 3.25" / 5.6
- 8.2 cm Max.

Depth: 0.72" / 1.8 cm Weight Capacity Standard use: 2 lbs / 900 gr. Heavy-duty use: 1 lb / 450 gr. Note Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.









...

The RAM Quick-Grip™ handlebar mount consists of a zinc-plated U-bolt base, double-joint arm & a spring-loaded frame to accommodate most phones. The RAM Quick-Grip™ device mount is capable of holding a broad range of electronic devices. The spring-loaded mechanism & the adjustable side keepers allow for a secure grip on your device. Whether it is a cell, GPS, blue tooth speaker or anything that will fit in the

Dimensions of the cradle, your electronics will be secure. Features The package

Includes:: mounting hardware for pipes from 0.50" / 12.5 mm to 1.25" / 31 mm diameter The base comes with black caps for the ends of the bracket screw The mount features a patented RAM clamping arm with 1" diameter rubberized ball that can be adjusted at either end of the double-jointed arm, allowing for infinite adjustment & setting the perfect viewing angle Material Marine-grade aluminum High strength composite Cradle clamping

Dimensions Height range: 4.75"
- 5.75" / 12
- 14.5 cm Width range: 2.1...







...

The RAM® Quick-Grip™ Wireless is a patented, universal water-resistant wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement & removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top & bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward & then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible

Dimensions. For added security & peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless kit for vehicles

Includes:: a B size diamond base featuring a 1” / 25 mm rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that means that you can turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2 m Type-A male to Type-A female extension cable. Features Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design & 10 W maximum output Kit for vehicles

Includes:: wireless charging cradle, B size diamond ball base, medium double socket arm, & RAM® Twist-Lock™ suction cup made from powder-coated, marine-grade aluminum, stainless steel components, & high-strength composite for durability & reliability in the most demanding environments Hardware included 1 Safety Tether 1 Silicon sleeve for USB (Universal Serial Bus) waterproof connection 1 1.2 Meter USB (Universal Serial Bus) Extension Cable 4 Small zip ties 2 Large zip ties Cradle

Dimensions Height Range: 5.625"
- 6.625" / 14
- 16.8 cm Max.

Width: 3.125" / 7.9 cm Max.

Depth:. 7" max / 1, 75 cm Material High strength composite Stainless steel Power specifications Input Power: 5 V
- 2 A, 9 V
- 1.67 A Output: 5 W / 7.5 W / 10 W Conversion Efficiency: 85% Max Maximum Case Thickness: 6 mm Working Frequency: 110-205 KHZ Product Standard: WPC v.1.2.4 QI Compatible Compatible with QC 2.0/QC 3.0 power supplies Operating temperatures 0° C to + 37.7° C Important notes For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB (Universal Serial Bus) Type-A male & female connector to protect the connections & prevent corrosion. Failure to do so will void warranty. Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5. iPhone 12 & iPhone 13 products support a new & proprietary wireless charging standard not supported in this product.















...

The RAM® Quick-Grip™ Wireless is a patented, universal water-resistant wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement & removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top & bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward & then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible

Dimensions. For added security & peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless kit for vehicles

Includes:: a B size diamond base featuring a 1” / 25 mm rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connecto...



...
