Securely fit your mount to a bar using one of Quad Lock s Bar Clamps. Choose between a medium or small bar clamp to suit your bar size. Features Bar clamp small Made from tough glass reinforced fiber reinforced nylon Stainless steel hardware

Includes:: 3 spacers Fits bar diameter 10 mm (3/8"), 12 mm (1/2"), 14 mm (9/16") & 16 mm (5/8") Features Bar Clamp medium Made from tough glass reinforced fiber reinforced nylon Stainless steel hardware

Includes:: 3 spacers Fits bar diameters 22 mm (7/8"), 25 mm (1"), 28 mm (1-1/8") & 32 mm (1-1/4") Scope of delivery 1 x Bar Clamp
- small or medium 3 x Spacers 3 mm Hex Key Note The illustrations may show optional accessories that are not included in the scope of delivery. Quad Lock® 360™ The Quad Lock® 360™ system consists of a compatible Head, (optional) Arm & Base, enabling you to configure a smartphone mount to suit your active lifestyle. With over 200 different combinations, you can now configure the perfect mount for your specific application.




...

Securely fit your mount to a bar using one of Quad Lock s Bar Clamps. Choose between a medium or small bar clamp to suit your bar size. Features Bar clamp small Made from tough glass reinforced fiber reinforced nylon Stainless steel hardware

Includes:: 3 spacers Fits bar diameter 10 mm (3/8"), 12 mm (1/2"), 14 mm (9/16") & 16 mm (5/8") Features Bar Clamp medium Made from tough glass reinforced fiber reinforced nylon Stainless steel hardware

Includes:: 3 spacers Fits bar diameters 22 mm (7/8"), 25 mm (1"), 28 mm (1-1/8") & 32 mm (1-1/4") Scope of delivery 1 x Bar Clamp
- small or medium 3 x Spacers 3 mm Hex Key Note The illustrations may show optional accessories that are not included in the scope of delivery. Quad Lock® 360™ The Quad Lock® 360™ system consists of a compatible Head, (optional) Arm & Base, enabling you to configure a smartphone mount to suit your active lifestyle. With over 200 different combinations, you can now configure the perfect mount for your specific application.




...

Features 2-hole base Elegant cover to hide the fixing screws Low-profile base Fiberglass-reinforced nylon 316 stainless steel hardware Compatible with Flat mounting surface M5 or 10G (track 10) pan head screws All Quad Lock 360 arms & heads Use moto spacer, M5 x 45 screw & right angle USB (Universal Serial Bus)-C cable for USB (Universal Serial Bus) weatherproof wireless charger Not compatible with Curved mounting surface

Dimensions L x W x H approx. 40 x 40 x 12 mm Quad Lock® 360™ The Quad Lock® 360™ system consists of a compatible Head, (optional) Arm & Base, enabling you to configure a smartphone mount to suit your active lifestyle. With over 200 different combinations, you can now configure the perfect mount for your specific application.

...

Features 2-hole base Elegant cover to hide the fixing screws Cover with TPU grommet for passing through 12V-24V waterproof wireless charging cables Low-profile base Fiberglass-reinforced nylon 316 stainless steel hardware Compatible with Flat mounting surface M5 or 10G (10-gauge) pan head screws All Quad Lock 360 arms & heads Use Moto Spacer, M5 x 45 screw & right-angle USB (Universal Serial Bus)-C cable for USB (Universal Serial Bus) weatherproof wireless charger Not compatible with Curved mounting surface The following cables cannot be passed through the grommet USB (Universal Serial Bus)-A to USB (Universal Serial Bus)-C cable (Quad Lock / generic) USB (Universal Serial Bus)-C to USB (Universal Serial Bus)-C cable (quad lock / generic) SAE connector cable (quad lock / generic) Moto USB (Universal Serial Bus) charger & 12V smart adapter cable

Dimensions L x W x H approx. 55 x 40 x 12 mm Quad Lock® 360™ The Quad Lock® 360™ system consists of a compatible Head, (optional) Arm & Base, enabling you to configure a smartphone mount to suit your active lifestyle. With over 200 different combinations, you can now configure the perfect mount for...

...

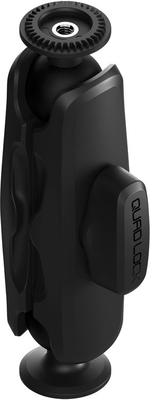

Achieve leverage & optimal viewing with the Dual Pivot Arm. Choose between a small (51 mm / 2") or medium (75 mm / 3") in length Dual Pivot Arm to suit your needs. Both arms are compatible with all Quad Lock 360 Heads & Bases. Optimal viewing Dual Pivot Arms can be rotated 360 degrees x 180 degrees. The two ball heads at either end also offer 180 degrees & 360 degrees movement for greater angle options. Easy adjustability The Dual Pivot Arm comes with two options for easy adjustability: Hex Screw for anti-theft protection Thumb Screw for easy adjustment on the go Preload tension Both adjustability options work with our preload tension so the arm doesn t disassemble when adjusting the angle. If needed, the arm can still be easily detached from the base connecting ball. Features Arms made from tough, glass reinforced fiber reinforced nylon Designed with preload tension for easy adjustability Two-sides of the Dual Pivot Arms features grooves to allow for tidy cable management Small Arm: 51 mm (2") pivot-to-pivot Medium Arm: 75 mm (3") pivot-to-pivot 22 mm (7/8") Balls Scope of delivery 1 x Dual Pivot Arm (51 mm or 75 mm) (2" or 3") 1 x Thumb Screw (to replace Hex Screw) 1 x 3 mm Hex Key Compatibility The Quad Lock 360 Dual Pivot Arms are compatible with all Quad Lock 360 Bases & Heads. They are also compatible with the following Quad Lock mounts. Motorcycle Handlebar Mount Scooter/ Motorcycle Mirror Mount Notes The Dual Pivot Arms are not designed to be compatible with RAM mounting systems, please see the 1" Ball Adaptor for a compatible solution. The illustrations may show optional accessories that are not included in the scope of delivery. Quad Lock® 360™ The Quad Lock® 360™ system consists of a compatible Head, (optional) Arm & Base, enabling you to configure a smartphone mount to suit your active lifestyle. With over 200 different combinations, you can now configure the perfect mount for your specific application. ...

The Quad Lock® 50 mm Extension Arm provides extra clearance for the Quad Lock Motorcycle Handlebar or Mirror Mount. The extension arm is compatible with both the Mirror Mount & Handlebar Mount. Features Compatible with all Quad Lock 360 products glass reinforced fiber reinforced nylon construction / stainless steel hardware 50 mm from screw to screw Length 75 mm Scope of delivery 1 x 50 mm extension arm 1 x M5 screw Note The illustrations may show optional accessories that are not included in the scope of delivery. Quad Lock® 360™ The Quad Lock® 360™ system consists of a compatible Head, (optional) Arm & Base, enabling you to configure a smartphone mount to suit your active lifestyle. With over 200 different combinations, you can now configure the perfect mount for your specific application. ...

The Flexible Adhesive Base is suitable for mounting to flat or curved surfaces. Using a super secure 3M™ Adhesive, the Flexible Adhesive Base has 4 tabs which can be bent to match the curved surface. A 10 mm Spacers & 2 Screws (1 x M5x 30 & 1 x M5x 45) are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM. Features Made from tough, nylon construction Flexible Adhesive Base is 60 mm x 60 mm with a height of 18.3 mm Each tab is 28 mm wide & has 2 grooves, which are the bending points to allow grip to curved surfaces. These can be used in a concave or convex manner. The adhesive used is the renowned, 3M™ Adhesive for extra strong grip Compatible with all Quad Lock 360 ARMs & HEADs Scope of delivery 1 x Flexible Adhesive Base 1 x 10 mm Spacers 1 x M5x 30 screw (for connecting Spacer to Lever Head or 360 Arms) 1 x M5x 45 screw (for connecting Spacer to Weatherproof Wireless Charging Head) 1 x Isopropyl Alcohol Wipe Surface guidelines The Flexible Adhesive Base can be att... ...

Quickly attach & detach your phone with the super secure dual-stage Quad Lock 360™ Lever Head. The Lever Head can be fixed to any 360 ARM or BASE at 10 degree intervals. Features Made from a combination of tough nylon & stainless steel aluminum 13.9 mm high & total width of 67.6 mm Features the patented dual-stage lock Scope of delivery 1 x Quad Lock 360™ Lever Head Compatibility The Quad Lock 360™ Lever Head is compatible with all Quad Lock 360™ Arms & Bases. It is also compatible with the following Quad Lock® mounts. Out Front Mount Out Front Mount PRO Motorcycle Handlebar Mount Motorcycle Handlebar Mount PRO Mirror Mount Fork Stem Mount Fork Stem Mount PRO Ball Adaptor Quick Release Strap Mount Note The illustrations may show optional accessories that are not included in the scope of delivery. Quad Lock® 360™ The Quad Lock® 360™ system consists of a compatible Head, (optional) Arm & Base, enabling you to configure a smartphone mount to suit your active lifestyle. With over 2... ...

Quickly attach & detach your phone with the super secure Quad Lock 360™ two-stage lever heads. The lever heads can be attached to any 360 ARM or BASE at 10-degree intervals. Features Made from a combination of rugged nylon & rust-resistant aluminum Short lever for compact size 13.9 mm high & 52 mm overall width With patented two-stage locking mechanism Contents 1 x Quad Lock 360™ Short Lever Head Black with black lever & black hardware Quad Lock® 360™ The Quad Lock® 360™ system consists of a compatible Head, (optional) Arm & Base, enabling you to configure a smartphone mount to suit your active lifestyle. With over 200 different combinations, you can now configure the perfect mount for your specific application. ...

Securely fix your mount to flat surfaces using one of Quad Lock s Rectangle Flat Hole Bases. Choose between a 2 hole or a 4 hole base. Both bases can be fixed to flat surfaces vertically, diagonally or horizontally. Each base uses the universal AMPs hole spacing standard & the holes will accept 10G or M5 countersunk fasteners. If using the 4 hole base, it is recommended to use all 4 hole screws for the strongest connection. A 10 mm Spacer & 2 screws are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM. Features 2 hole base 68.5 mm (2.7") long x 28 mm (1.1") wide x 14 mm (0.55") high AMPS Hole Pitch: 48.5 mm (1.9") Features 4 hole base 58 mm (2.3") long x 50 mm (2") wide x 14 mm (0.55") high AMPS Hole Pitch: 38 mm (1.5") x 30 mm (1.2") Scope of delivery 1 x Flat Rectangle Base (2-hole or 4-hole) 1 x 10 mm Spacer 1 x M5x 30 Screw (for connecting Spacer to Lever Head or 360 Arm) 1 x M5x 45 Screw (for connecting Spacer to Weatherproof Wireless Charging Head) Notes Screws... ...
