HIGHSIDER CNC aluminum lamp holder. The perfect part for your conversion project. The CNC machined aluminum holder for mounting headlights is sturdy, lightweight & looks classy. Available in chrome or black. Precisely matched
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With the highest level of quality & functionality, you can easily customize your bike to your liking.

Dimensions Thickness, lamp holder: 10 mm Arm length (clamp attachment to headlight mount): Extra Short: 48 mm Short: 87 mm Long: 114 mm Variants 220-816
- XS
- black 220-817
- XS
- chrome plated 220-818
- S
- black 220-819
- S
- chrome plated 220-820
- L
- black 220-821
- L
- chrome plated Scope of delivery 1 pair of lamp holders Matching CNC clamps for EXTRA SHORT & SHORT version: In black: No.: 220-602 for 35-37 mm Ø No.: 220-604 for 38-41 mm Ø No.: 220-608 for 42-43 mm Ø No.: 220-618 for 50, 52 & 54 mm Ø In chrome: No.: 220-603 for 35-37 mm Ø No.: 220-605 for 38-...














...

HIGHSIDER CNC lever protectors for brake & clutch lever, black, suitable for 7/8 & 1 inch aluminum, or steel handlebars with an inner diameter of 12 to 22 mm. Tight CNC-turned lever protectors made from aluminum, high quality workmanship in a very good quality. Such protectors are now found in almost all motorcycle racing classes to avoid unintended full braking in case of foreign contact. A recommended accident protection not only in sports use but also in road traffic an effective protection against accidental contact of the brake or clutch lever with another motorcycle or for example a car mirror. In addition, the chance is increased that in the event of a motorcycle overturn the lever may be saved from breaking.

Dimensions Length: 185 mm

Width: 39 mm Diameter: 34.5 mm (handlebar end) Thickness: 10.5 mm Distance adapter / mirror mounting: 29.9 mm Scope of delivery 1 pair of lever guards 320-101 1 clamping sleeve each with Ø 12 & 16 mm 1 spacer sleeve each with Ø 14, 18 & 22 mm...



...

HIGHSIDER completely CNC machined switch with two buttons. Suitable for 7/8 inch & 1 inch handlebars. Universal use for controlling load relays, switching various modes on tachometers, etc. Precisely tuned
- the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With a maximum of quality & functionality, you can easily design your bike according to your wishes.

Dimensions

Width: 12 mm

Depth: 40 mm Button Ø: 4.5 mm Rubber: 75 mm x 0.3 mm Hexagon socket screws: M3 x 12 mm Cable length: 570 mm Connections Button A: green/red Button B: green/brown Green = input signal Scope of delivery 1 pushbutton switch unit 240-070 1 x rubber 2 x screws Notes NOT for currents over 0, 05 Ampere. At 12 Volt max. 0, 6 Watt!






...

HIGHSIDER CNC aluminum turn signal holder, suitable for turn signals with an M8 threaded bolt. Precisely tuned
- the extensive
...

HIGHSIDER CNC aluminum turn signal holder, suitable for turn signals with an M8 threaded bolt. Precisely tuned
- the extensive
...

LED tail light, brake light, turn signal unit in a chrome-plated aluminum housing with transparent glass, for rear installation E-approved. Be seen with safety
- the tail light & tail light/turn signal series from HIGHSIDER give you the safety you need & the look you want
- whether cruiser, scooter or speedster.

Dimensions A: approx. 45 mm B: approx. 70 mm C: 45 mm Threaded bolt M10 x 1.5 mm Connections Black cable = ground (-) Blue cable = turn signal (+) Yellow cable = rear light (+) Red cable = brake light (+) Variants 254-200
- Chrome plated 254-201
- Black Scope of delivery 1 pair of tail light, brake light, turn signals Notes Location: For rear only Matching turn signal unit: No. 203-200





...

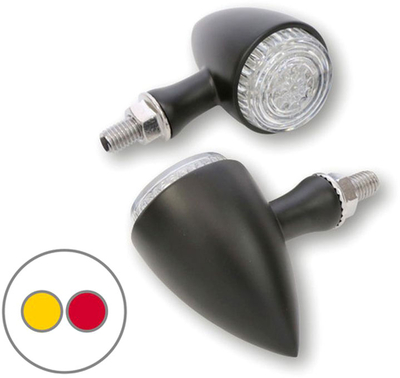

HIGHSIDER LED turn signal COLORADO Power-LED in an aluminum housing, for front + rear, E-approved. Make your mark
- with the
...

HIGHSIDER LED turn signal COLORADO Power-LED in an aluminum housing, for front + rear, E-approved. Make your mark
- with the
...

HIGHSIDER COLUMBIA 2 mirror, E-approved. Handlebar mirror made from matte black anodized aluminum with adjustable stem & convex glass. Thanks to the use of a second joint on the stem, there are additional adjustment options for your safety.

Includes:: extra adapter M10 x 1.25 mm with left-hand thread for Yamaha. Prudence with style
- whether classic or modern. The HIGHSIDER mirror series are characterized by striking design & aerodynamic function. So you keep the overview.

Dimensions A Width head: 140 mm B Height head: 90 mm C Total

Width: 230 mm D Total

Height: 140 mm Handle length from head to center of joint: 120 mm From joint to bend: approx. 20 mm From the bend to the bottom: approx. 25 mm Scope of delivery 1 pair of rear view mirrors 301-056 Including extra adapter M10 x 1, 25 mm with left hand thread for Yamaha








...

HIGHSIDER LED driving light COMET-HIGH, E-approved. Tiny LED driving lamp in a matte black aluminum housing with sturdy holder made from steel. The use of modern LED technology makes it possible to realize the smallest housing

Dimensions with the greatest possible light output at the same time. The three powerful SMD- LEDs with oval lens produce a symmetrical bright light for more visibility. Another advantage is a significant reduction in the load on the alternator due to the low power consumption. Features Tiny: Only 3.6 cm high & 5.5 cm wide Robust: Thanks to aluminum housing & steel holder Powerful SMD LEDs for increased visibility & visibility Sporty design & light color Low power consumption reduces the load on the alternator Together with the COMET-LOW a true dream team (optionally available) Headlight

Dimensions

Height: 36 mm

Width: 55 mm

Depth: 70 mm Height lens: 24 mm Lens

Width: 42 mm Distance of mounting holes: 55 mm Mounting holes on the side: M4

Dimensions box Width...













...
